6) Attach Monorail Guides
Insert 3/4” x 2” G8 hex bolt through Monorail guide and Diaphragm, oriented as shown in
Figure 56. Secure with 3/4” lock washer and 3/4” hex nut (typical two places per guide). See
also Diaphragm assembly drawing. Shims are sandwiched between Monorail guides and
Diaphragm.
Repeat process for each Diaphragm.

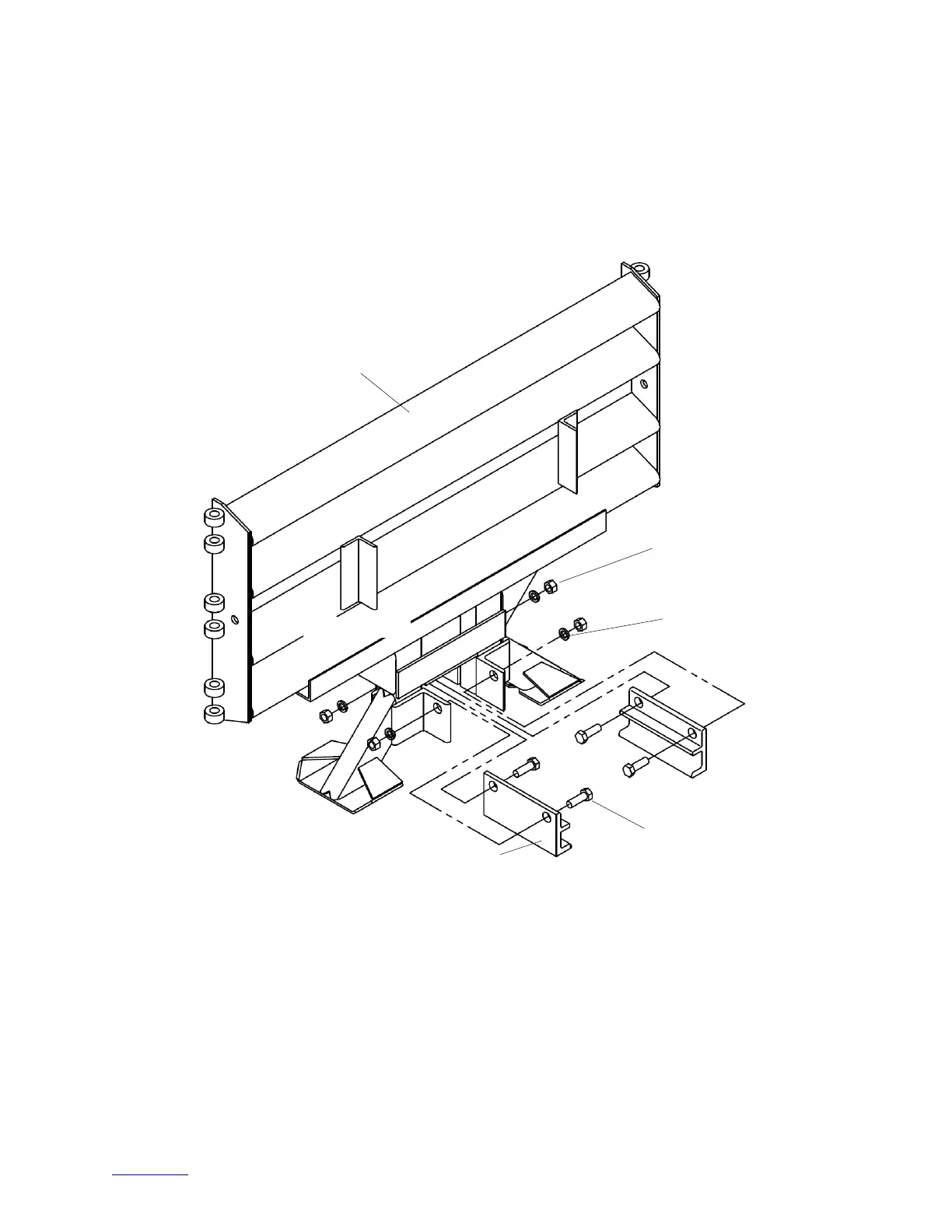

Figure 56
Monorail Guide Attachment
