PROGRAMMABLE
FUNCTIONS
HYDRAULICS

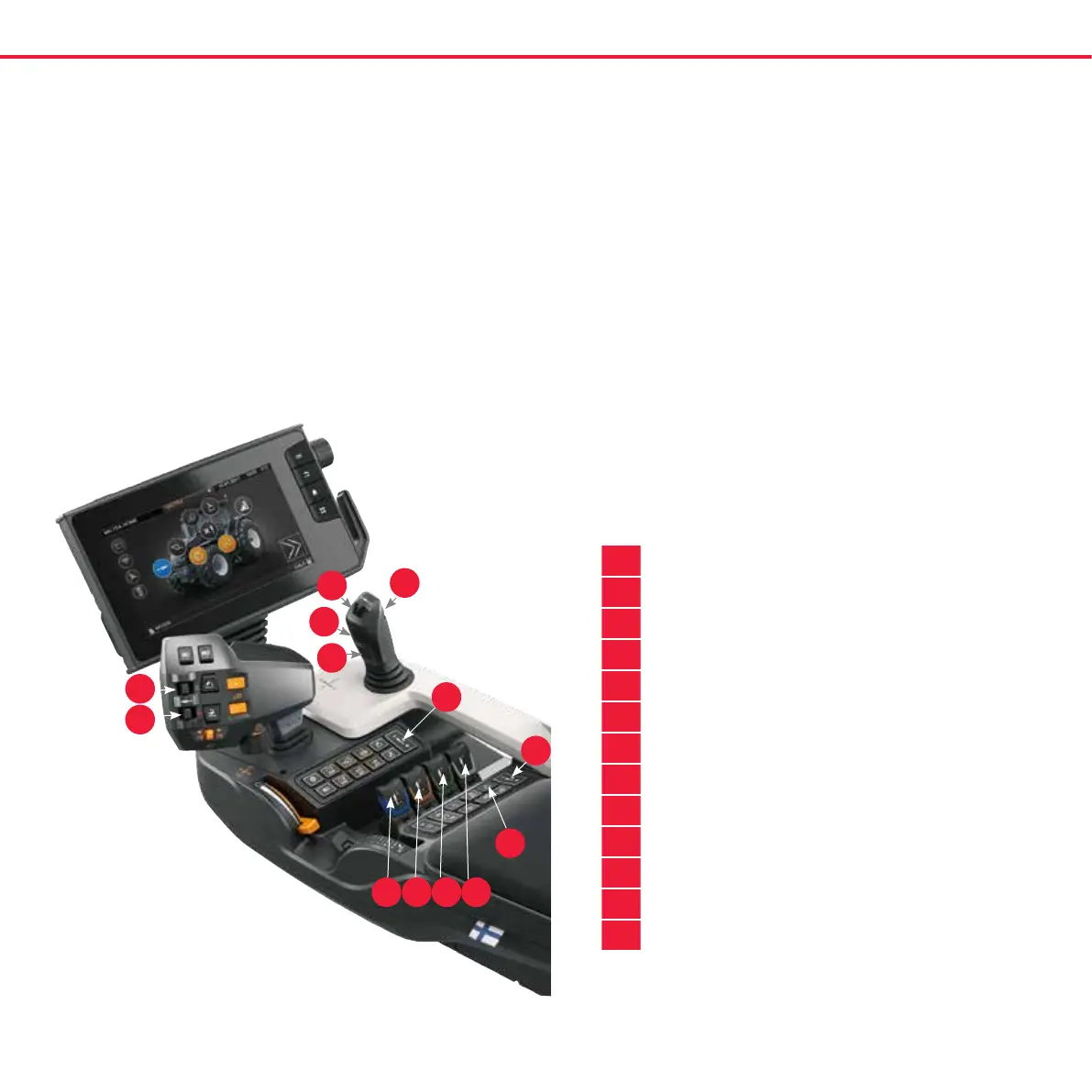

There are totally 9 different programmable hydraulic controls
in the SmartTouch armrest. The auxiliary hydraulic controls are
positioned on the armrest. The joystick, ngertip levers and
linear levers are programmable, thus you can select which
lever controls which valve.
1.
Joystick
2.
Joystick ngertip lever
3.
Upper button (Front loader selecto 3)
4.
Lower button (Front loader selecto 4)
5.
Hydraulics ngertip lever 1
6.
Hydraulics ngertip lever 2 (optional)
7.
On/off valve A (optional)
8.
On/off valve B
9.
Blue linear lever
10.
Brown linear lever
11.
Green linear lever
12.
White linear lever
13.
Master activation switch
1
7
2
3
5
6
9 10 11 12
13
8
4
