LTCA-10/LTCA-40 USER’S MANUAL
16
5.2 LTCA-40 Cable Connections
Typical connection diagrams of the LTCA-40 are shown in Figure 4.0, 5.0, and 6.0.
WARNING
Do not touch or disconnect any test lead that is connected to a transformer
terminal while high current is being conducted during a test. Failure to heed this
warning can result in electrical shock to personnel and/or damage to the
equipment.

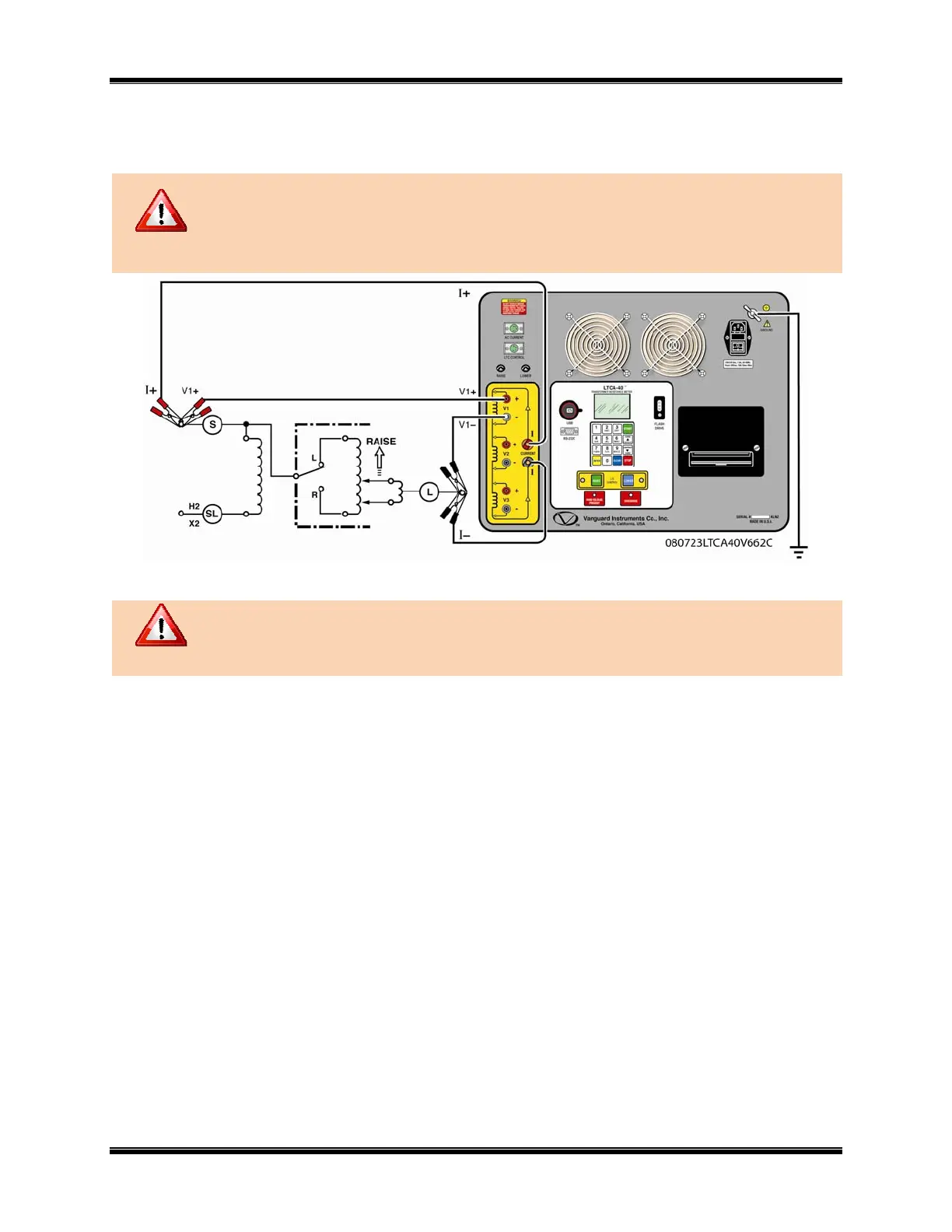

Figure 4.0 Typical LTCA-40 Connection Diagram (Dynamic Resistance Test)
WARNING
After discharge, always disconnect test clips slowly from transformer bushings to
prevent any accidental flash-over.
