VL1000 Arc Ballast Unit
An external ballast unit is included with VL1000 arc models. In this case, the lamp
power input cable is already connectorized for use with this unit.

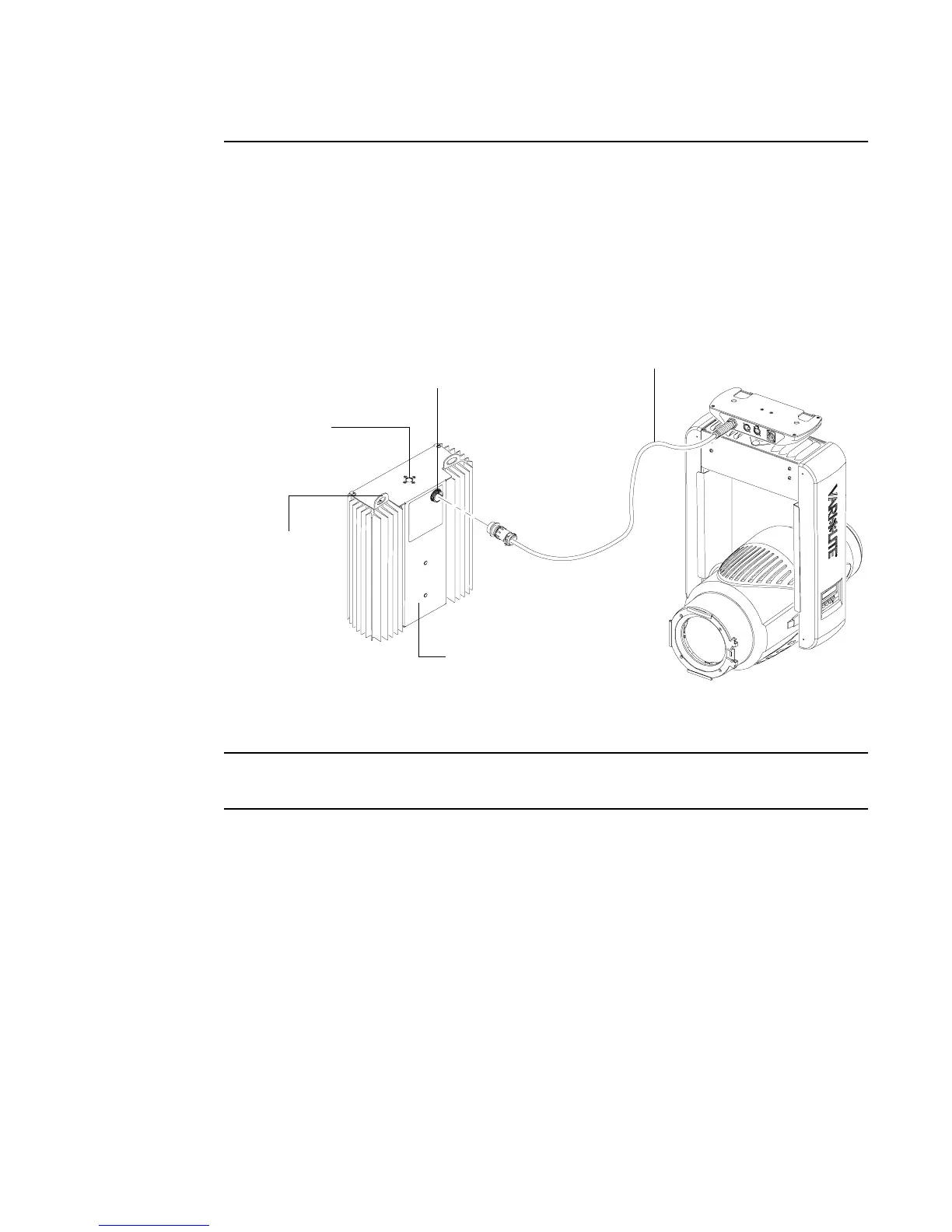

The following illustration shows the external arc ballast components.
Note: The Lamp Power Input Cable has conductors for lamp power and ballast
control. It is not compatible with VARI❋LITE Series 300™ lamp runs.
Lamp Connector
CPC-type connector for connecting
Lamp Power Input cable from luminaire.
Lamp Power Input Cable
Supplied cable and connector used
to connect luminaire to ballast unit.
40 inches (1m)
To be provided
To be provided
Ballast Unit
Provides power for
arc lamp source.
