INSTALLATION : INSTALLATION PROCEDURES
2
02.9663.0001 B 11-Jun-02 15
Installation Procedures
Installing Lamp (Incandescent Models)
In the event the lamp was packed separately during shipment, it will be necessary to
install before use.
WARNING: Ensure that power is removed from luminaire when installing lamp.
CAUTION: Wear cotton gloves or other covering while installing lamp. Touching
lamp glass with bare fingers will leave oil and may cause the lamp to explode or
reduce lamp life. If touched, use alcohol and cotton cloth to thoroughly clean glass
portion of lamp.
To install incandescent lamp:
Step 1. Ensure power is removed from luminaire.
Step 2. At backcap, gradually loosen two 10-32x2-3/8" PPSS black screws
(Figure 2-1) a few turns at a time until backcap is free. (Screws must be
alternately loosened to prevent one side from locking up.)

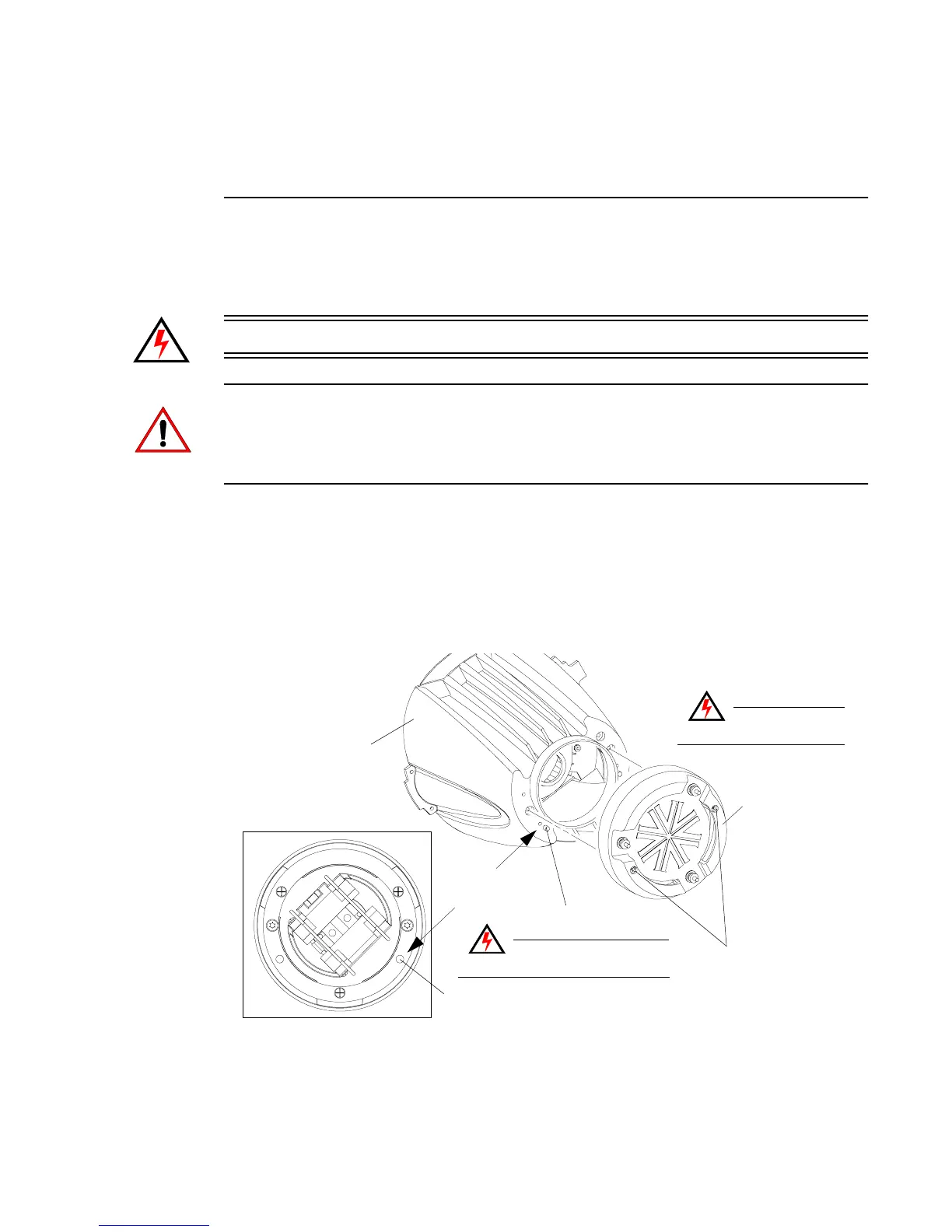

Figure 2-1: Removing Incandescent Backcap
10-32x2-3/8 PPSS
Black Screws (captive)
Backcap
Rear Head
CAUTION:
Do not touch lamp
with bare fingers.
- loosen each graduall
Assembly
Alignment Stud (2)
Alignment Hole (2)
Backcap
Interior View
Align when
re-installing
CAUTION:
Holes and studs MUST be
aligned when re-installing.
To Next Page
