VARI❋LITE® - VL1000™ ERS LUMINAIRE USER’S MANUAL
20 11-Jun-02 02.9663.0001 B
Hanging the Luminaire
The luminaire can be hung horizontally or vertically from any structure designed to
work with the type of load created by this moving luminaire. The pan tube base
provides two mounting holes for attaching truss hooks or other mounting hardware as
required. Many compatible truss hooks are available from different manufacturers for
your particular needs. The Mega Claw Truss Hook, shown in the example illustration
below, can be ordered separately from Vari-Lite (refer to “VL1000 ERS Replacement
Items/Accessories” on page 8).
Note: A safety cable is recommended for all hanging installations and may be
required by local codes.
To install truss hooks (if required):
Step 1. At pan tube base, attach two truss hooks as shown below (Figure 2-6).
Step 2. Tighten hardware securely.

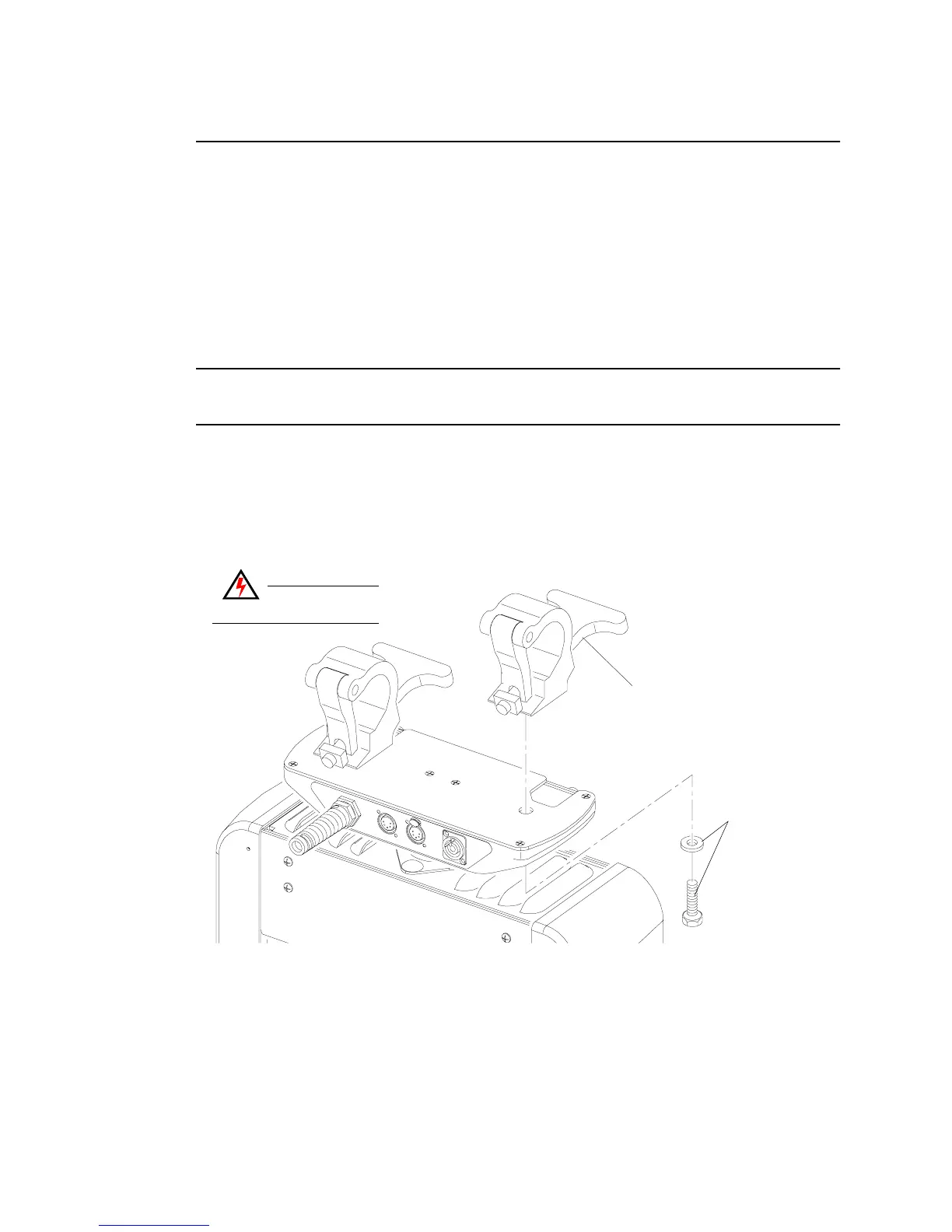

Figure 2-6: Example Luminaire Truss Hook Installation
Hook Hardware
(not provided)
CAUTION:
Attach truss
hooks securely.
Mega Claw Truss Hook
(not provided)
