VARI❋LITE® - VL1000™ ERS LUMINAIRE USER’S MANUAL
10 11-Jun-02 02.9663.0001 B
Power and Data Cabling Requirements
AC Power
The luminaire requires standard AC power distribution from 90-264 VAC, 50/60 Hz in
order to power all internal electronics and motors. It is equipped with a 3-pole
Neutrik® PowerCon® locking connector (with contacts for line, neutral, and
premating safety grounds) for the purpose of AC input. The mating Neutrik
PowerCon® connector is supplied, however, you will need to purchase or construct a
cable appropriate for your application.
Current vs. Voltage
The following tables provide the luminaire’s current draw at specific voltages.
(Currents given are worst case with all motors sequencing.)
* Does not include lamp power.
** Includes ballast power.
Table 2-1: VL1000T/VL1000TS/VL1000TI Current vs. Voltage *
Voltage @ 60Hz Current
115 1.3 A
208 0.75 A
230 0.65 A
Table 2-2: VL1000A/VL1000AS/VL1000AI Current vs. Voltage **
Voltage @ 60Hz Current
115 7.8 A
208 4.4 A
230 3.8 A

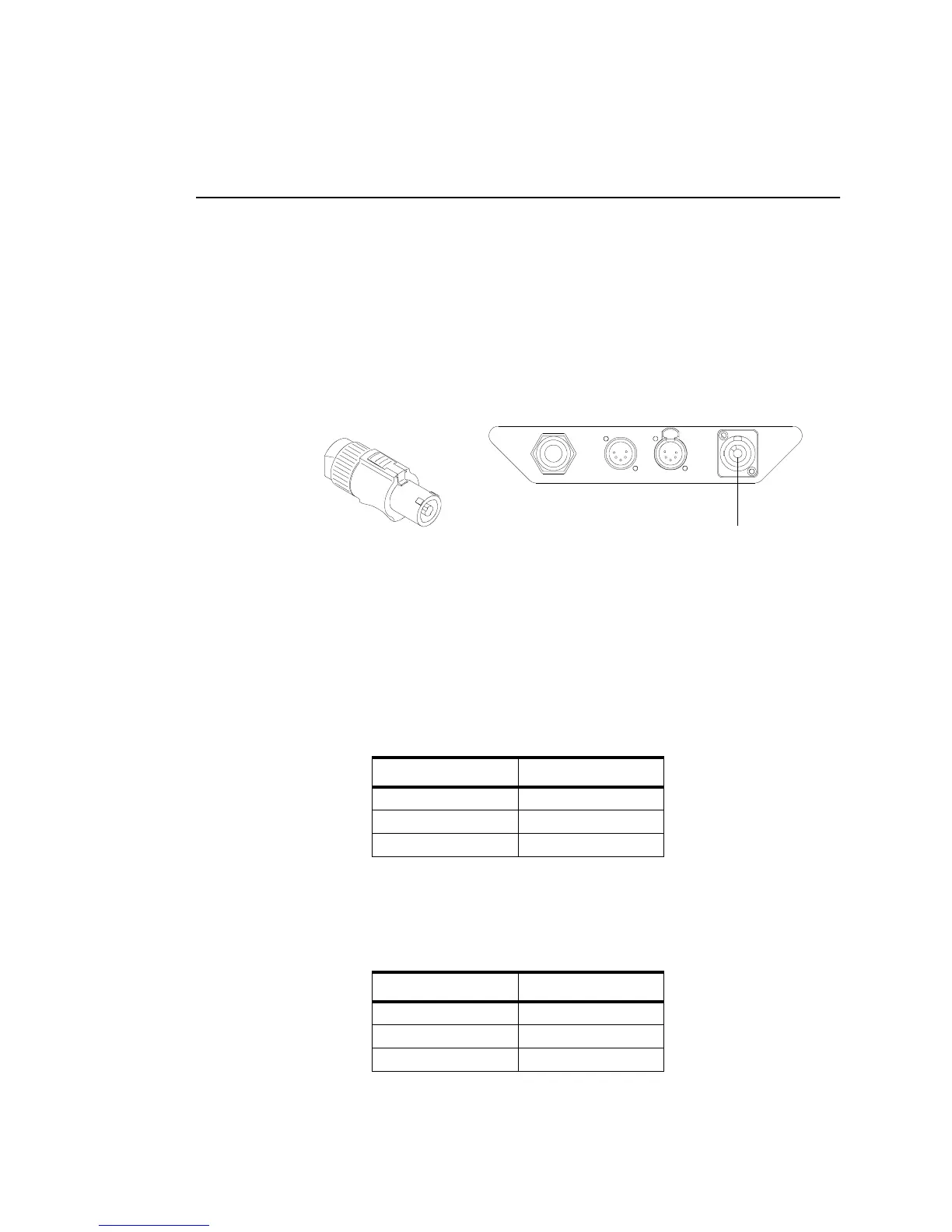

3-Pole Neutrik
Locking Connector
for AC input
Neutrik PowerCon
Connector (supplied)
