Step 3. Grip lamp by base and firmly install in socket.

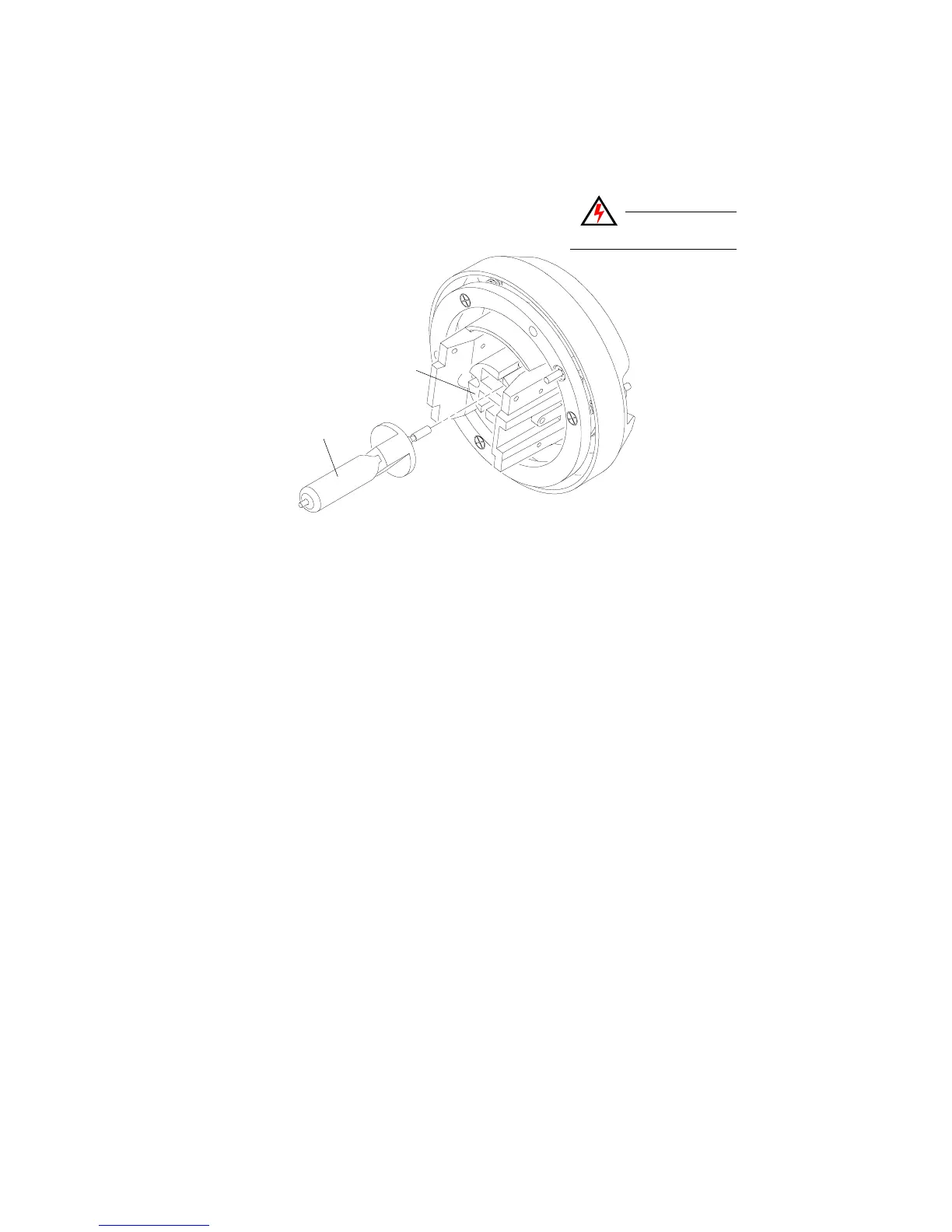

Figure 2-4: Installing Arc Lamp in Socket
Step 4. Re-install backcap, ensuring that alignment studs and holes are aligned
(Figure 2-3).
Step 5. Align lamp. (Refer to “Align Lamp For Maximum Beam Irradiance” on
page 28.)
Lamp
Socket
Install lamp, firmly pressing into place.
CAUTION:
Do not touch lamp
with bare fingers.
