4. Imaging System Overview
vatech A9 (Model name: PHT-30CSS) User Manual 33
English
No. Item Description
11
Chinrest
The place to rest the chin.
12
X-ray Detector
for PANO/CBCT
Xmaru1404CF-Plus for PANO/CBCT imaging
sensor
13 LED Lamp
Displays the status of X-ray exposure.
 Green: Standby
 Yellow: In operation (X-ray on)
14 X-ray Generator The X-ray tube where the X-ray is produced.
15 Vertical Frame
Holds the Rotating Unit.
It can be controlled with the Column UP/DOWN
switch.
16 Rotating Unit
Rotates around the patient's head while the image
is being acquired.
(Its movement is different according to the scan
mode.)

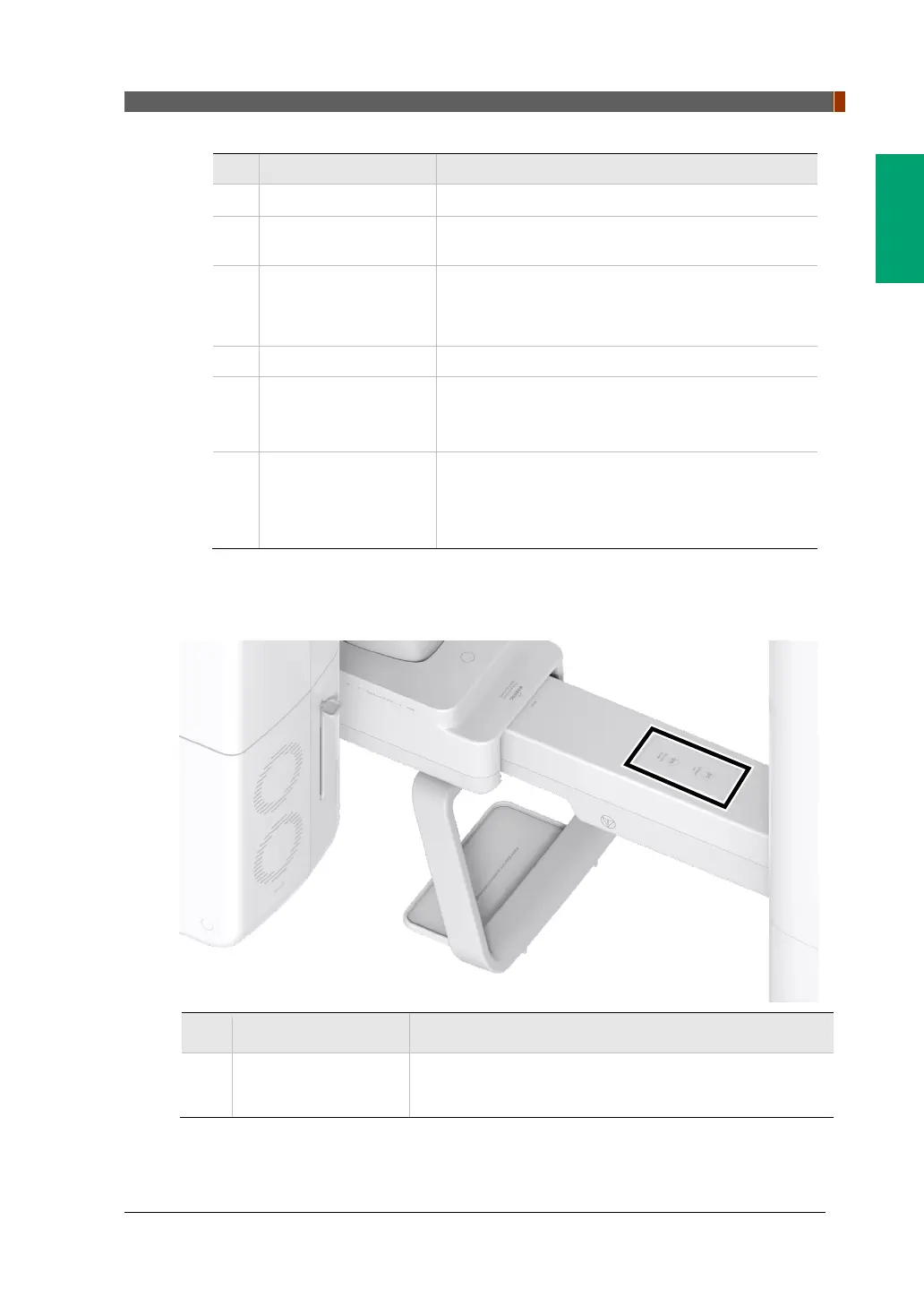

4.7.1 Control Panel
No. Buttons Description
1
COLUMN UP/DOWN
Button
Moves the Vertical Frame up or down.
(For adjusting the height of the Chinrest)
