Vatech PCH-30CS - Page 135

Appendix
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual 125
English

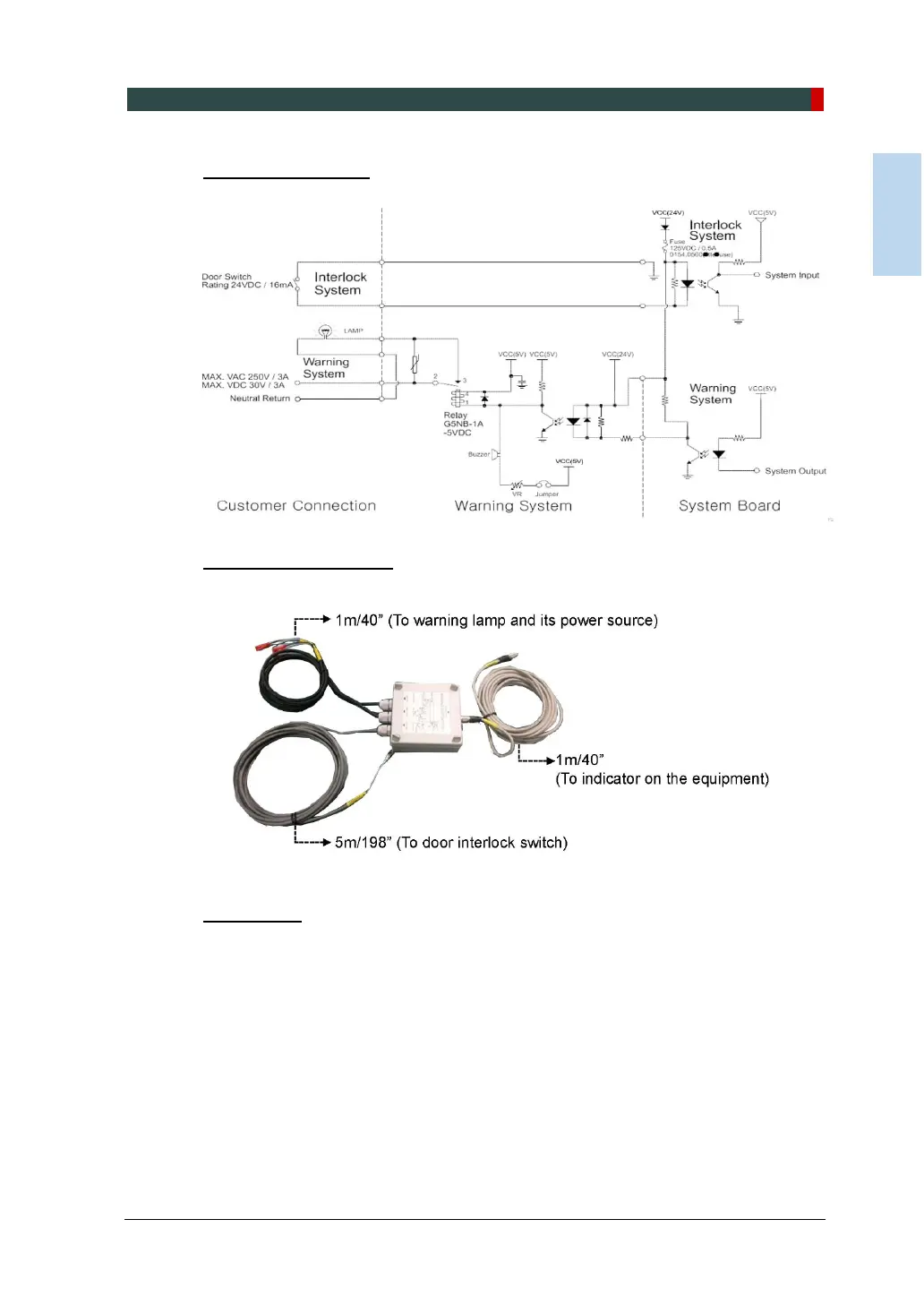

Schematic Diagram
Components Supplied
Procedures
<The individual cable length:>
⚫ Signal Cable: 5m/198”
⚫ Door interlock cable: 5m/198”
⚫ Warning lamp: 1m/40”
⚫ Power source cable: 1m/40”
