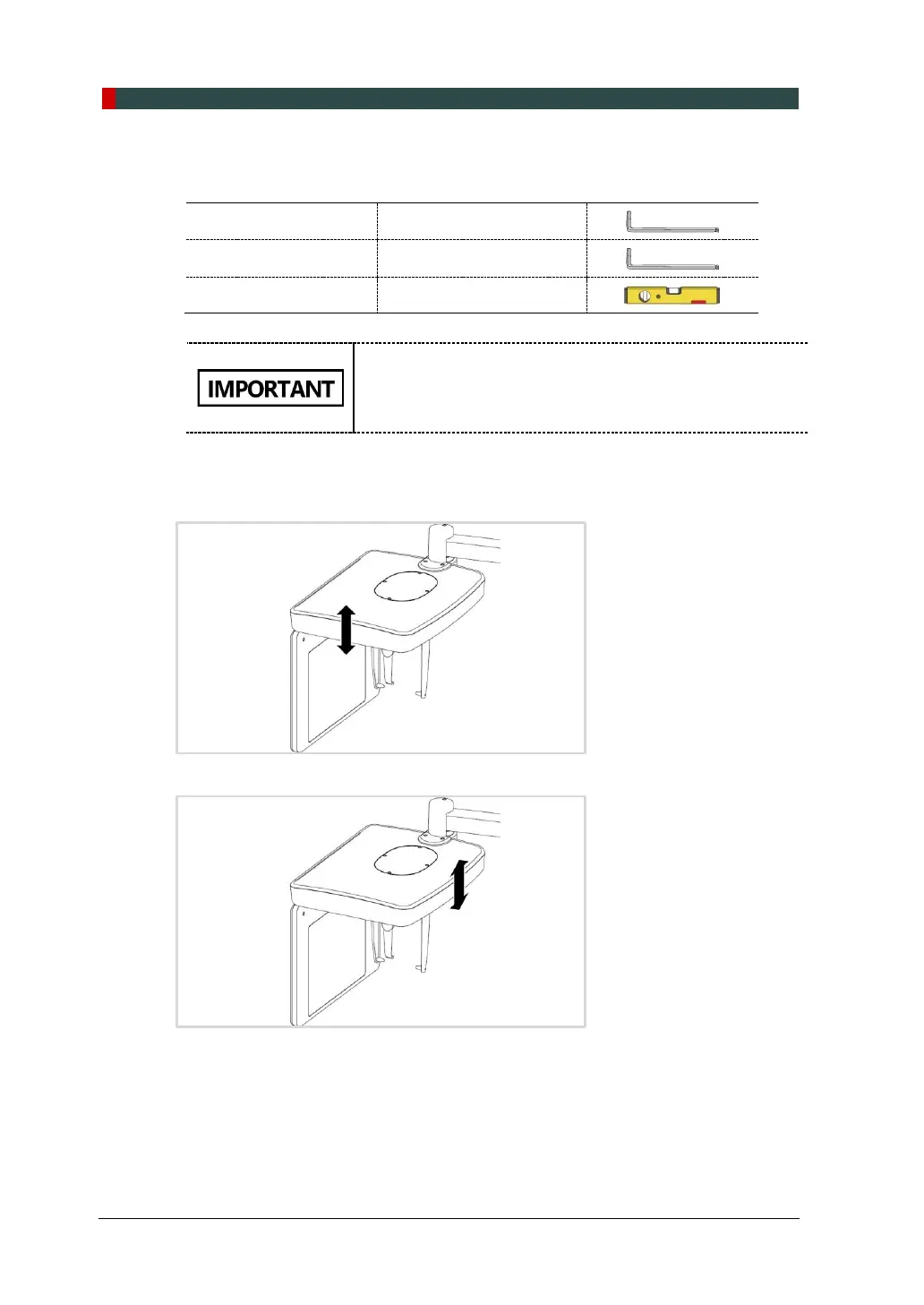

4.10 Aligning the Ceph unit
Allen Wench
8 mm / 0.3”
Allen Wench
10 mm / 0.4"
Spirit Level
n/a
Ensure that the Spirit Level should rest only on the
locations indicated in the following figures to obtain the
accurate center.
Verify the Ceph unit is level on all four sides (front, back, right and left), and adjust the
level as necessary.
[Leveling the Front and Back]
[Leveling the Right and Left]
