4. Installing the Equipment: Base Stand (Optional)
52 PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual

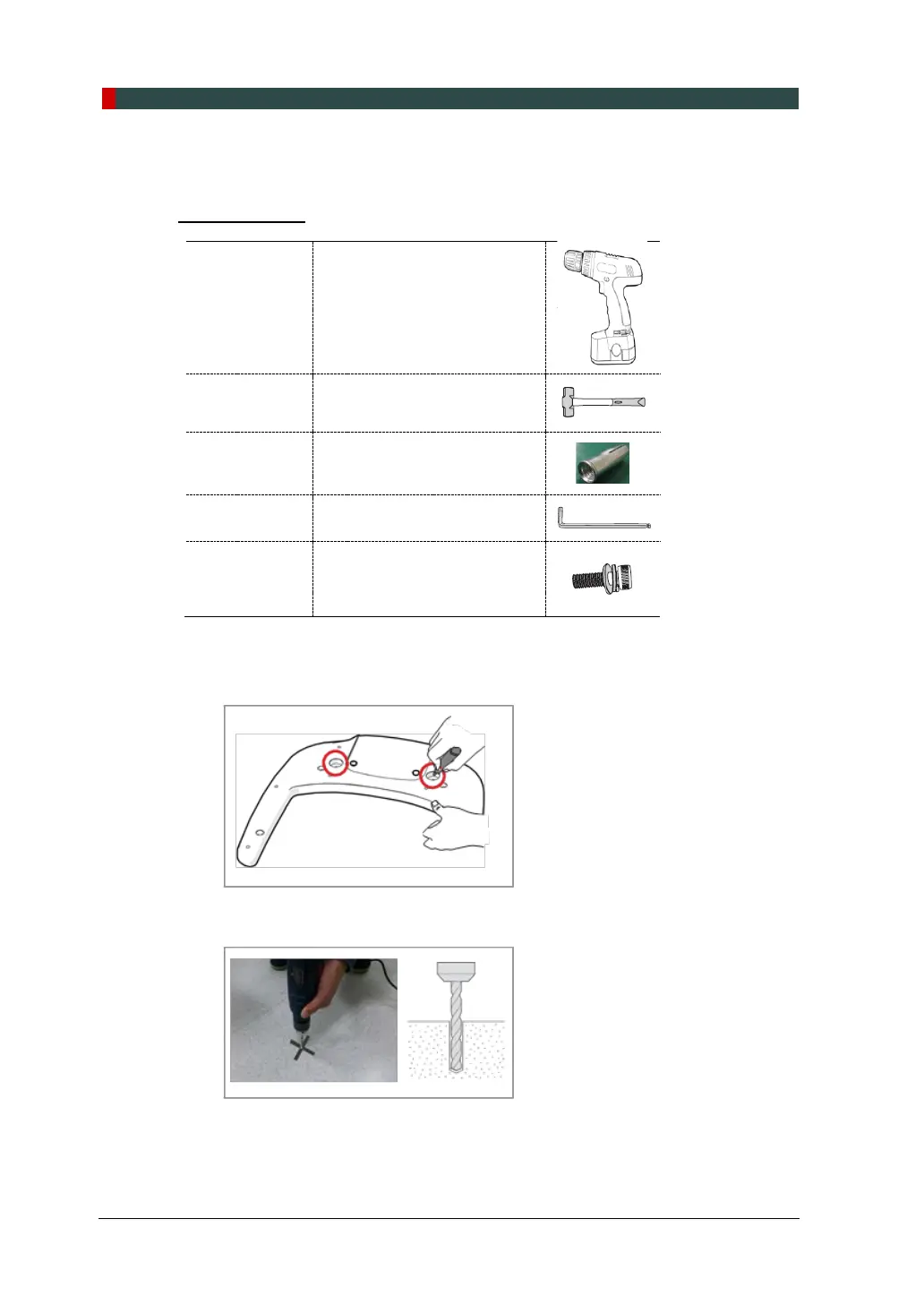

4.7 Fixing the Base (Optional)
Concrete Floor
Hammer Drill
L = 200 mm (7.9”)
Hammer
n/a
Ficher Strong
Anchor
M10 x 40
(Part No. 34)
Allen Wrench
8 mm / 0.3”
Wrench Bolt
M10 x 25
w/ Spring and Flat Washers
(Part No. 24)
1. Put the base unit on the installation site and mark 2 locations on the floor
before installing the equipment.
2. Drill the floor holes of size 12mm x 30mm (depth) using the concrete hammer
drill.
3. Remove the debris and clean the holes using the dust pump.
