8. Acquiring CEPH Images (Optional)
vatech A9 (Model name: PHT-30CSS) User Manual 93
English

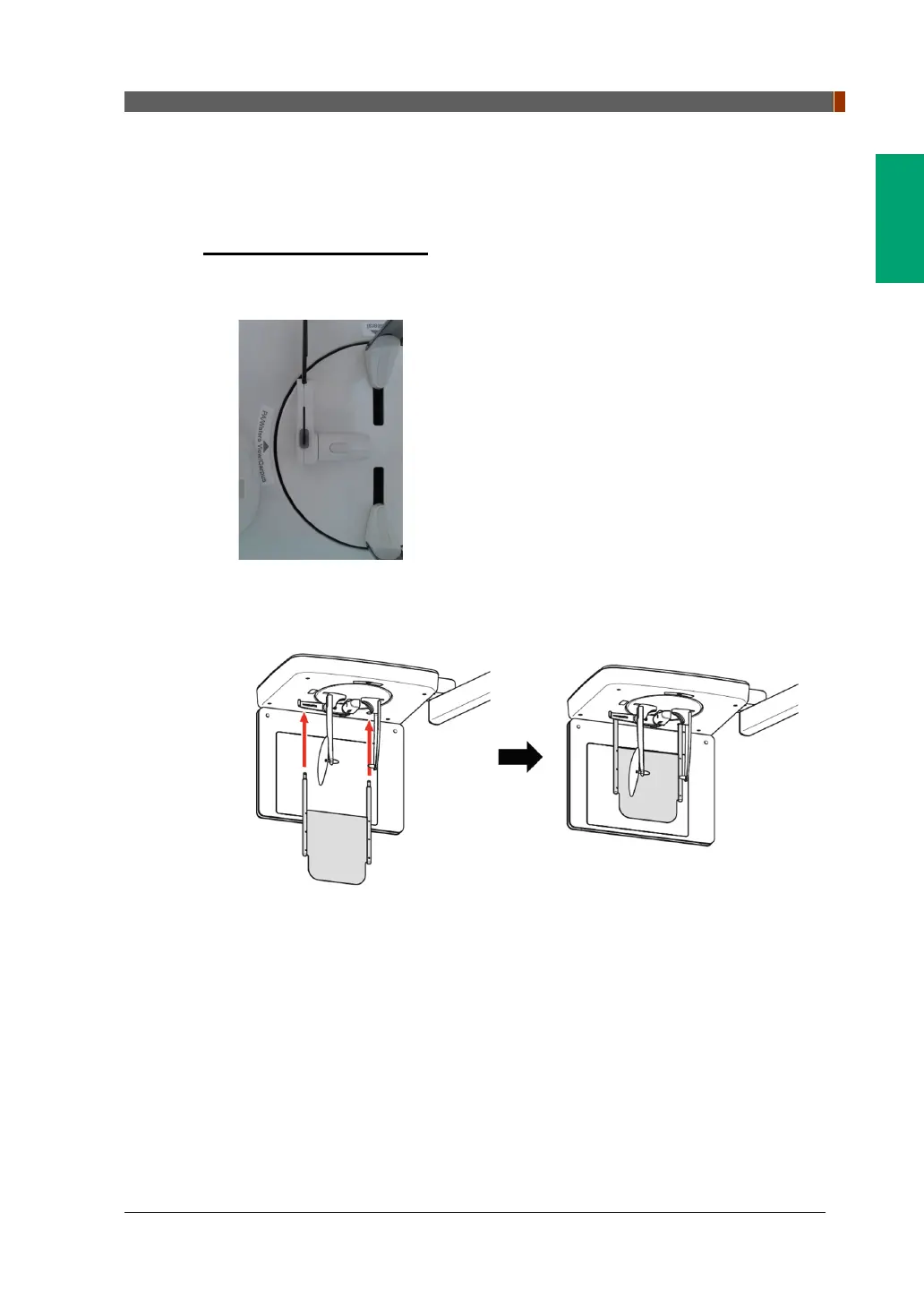

8.3.5 Carpus Mode
For Carpus Mode, install the Carpus Plate first before positioning the patient.
Installing the Carpus Plate
1. Turn the Nasal Positioner to the PA/Waters’ view/Carpus mode Positioning
Marker, as shown below.
2. Fold the Nasal Positioner up. The Nasal Positioner is not used in Carpus mode.
3. Fit the two ends of the Carpus Plate into the two holes of the CEPH unit as below.
4. Confirm that the Carpus Plate is safely mounted.
To Next Page
