Storage 69

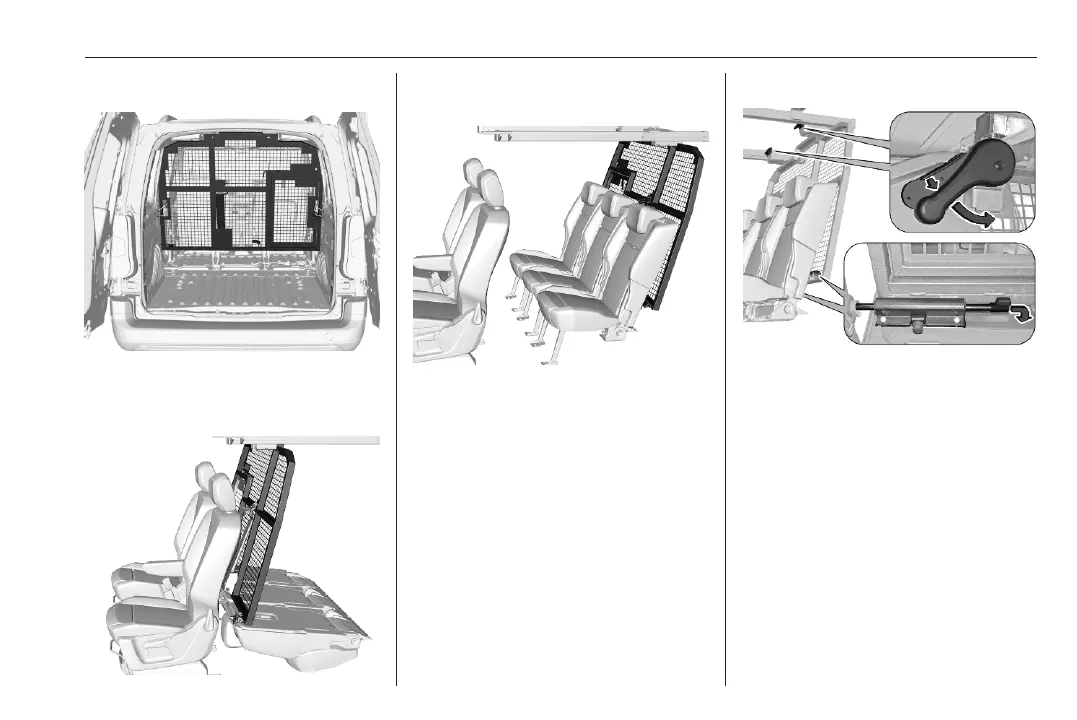

Load compartment grille
Depending on version a partition
protects the driver and passengers
against the risk of load movement.
The partition can be placed behind
the front or rear seats.
There is a flap in the partition which
can be opened to accommodate long
objects. A protective cover is
provided in the vehicle to assure safe
transportation.
If the side seat backrest is folded
down and the partition flap is open the
centre seat has to stay free.
If the backrest of the rear seat is
lowered and the flap open to transport
long objects, the front passenger seat
has to stay free.
Moving the partition
1. Release the four locking devices
on the top and the bottom of the
partition.
2. To be placed behind the front
seats fold down the rear seat
backrests 3 37
