16
counter. Disconnecting the storage bat-
tery also resets the daily trip counter.
13 — Hazard light tell-tale.
Flashes red when the hazard light is
ON.
14 — Malfunction Indicator Lamp
« » (CHECK ENGINE).
For fuel injection engines only.
Lights up briefly after ignition switch-on
indicating system self-test and goes off
if no fault is found. The MIL may flash
or illuminate continuously if a fault is
detected.
15 — Time/Temperature LCD.
Depress knob 11 briefly to switch
between time and temperature read-
ings.
With the ambient temperature +2°C
or higher the display will indicate time.
With the ambient temperature below
+2°C the display will indicate time for
the first three seconds, then tempera-
ture readings will be displayed (inter-
mittently for the first 10 seconds).
If the ambient temperature rises
above +3°C and then drops again to
+2°C:
— time reading will switch to tem-
perature reading (intermittent for the
first 10 seconds)
— continuous temperature indica-
tion will become intermittent for 10 sec-
onds.
Set the clock in the time indication
mode by rotating knob11 towards «h»
(hour) or «m» (minute).
After battery disconnection/recon-
nection the time reading will be reset to
zero.
16 — Low battery tell-tale.
Lights up in red colour at ignition
switch-on and goes off immediately
upon the engine start-up. Intense or
moderate illumination of the lamp with
the engine running indicates a slack or
failed alternator drivebelt, a fault of the
alternator or its circuit.
17 — «Parking brake applied» tell-
tale.
Goes on in red when the parking
brake is applied.
18 — Low oil pressure tell-tale.
Lights up in red when the lubrication
system pressure is low.
19 — Spare.

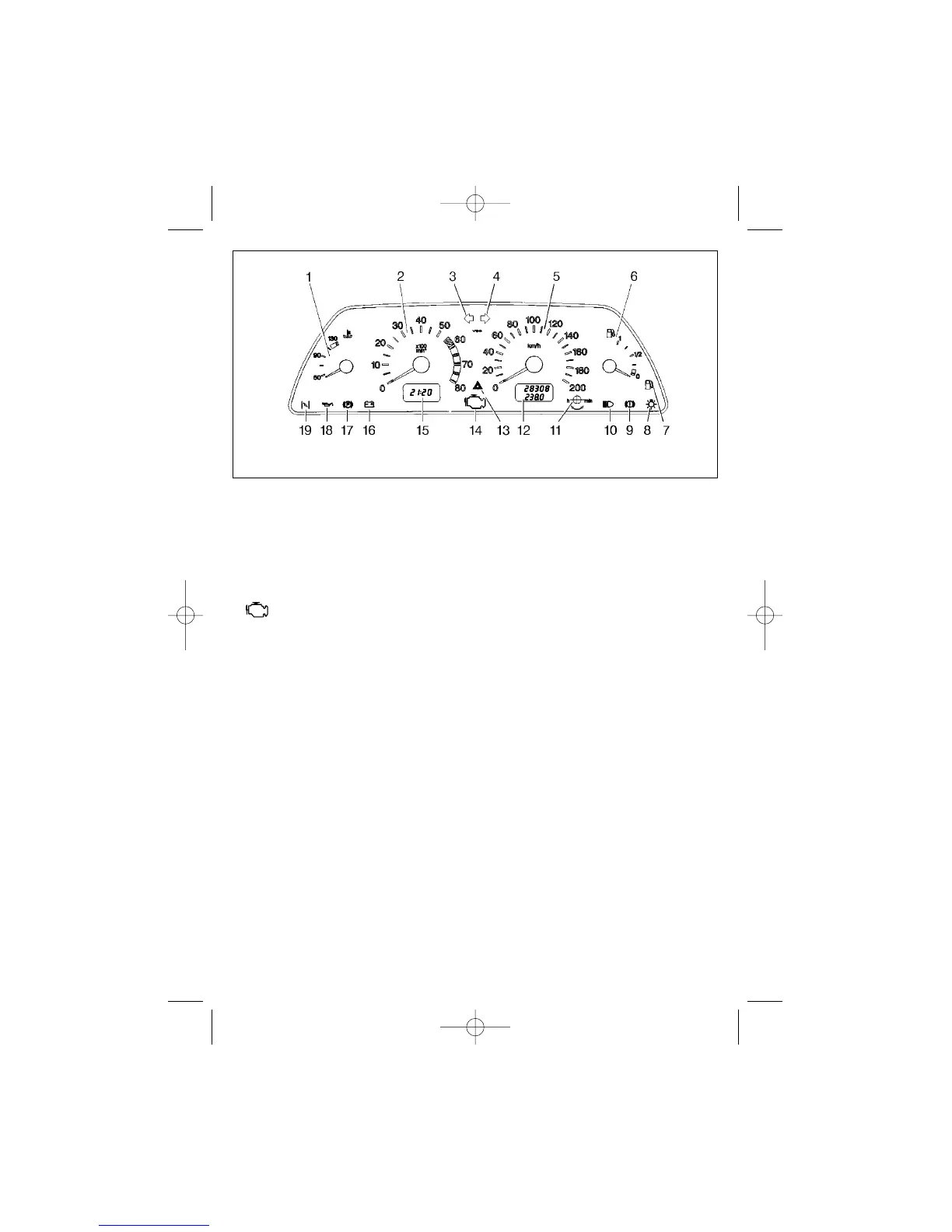

Fig. 20. Instrument cluster
