9
a torque limiter, intended to ensure a
reliable cap-to-filler neck sealing.
The cap should be tightened until
the torque limiter starts to click.
Some vehicles feature fuel tank
caps connected to vehicle body by
means of a flexible cable. This ensures
that the cap does not get lost while fill-
ing in, it also does not allow you to
close flap 2 when the filler neck is not
closed with the cap.
Vehicles with a catalytic converter
feature filler neck 2 (Fig. 10) with built-
in valve 3, which makes it possible to
use a smaller size fuelling nozzle to fill
in unleaded gasoline.
SEATS
For longitudinal travel adjustment of
the front seats, pull up locking lever 1
(Fig. 11, 12). With the seat in the
desired position, release the lever, and
moving the seat slightly back and forth,
make sure, it has been reliably fixed.
Backrest tilt can be adjusted by rotating

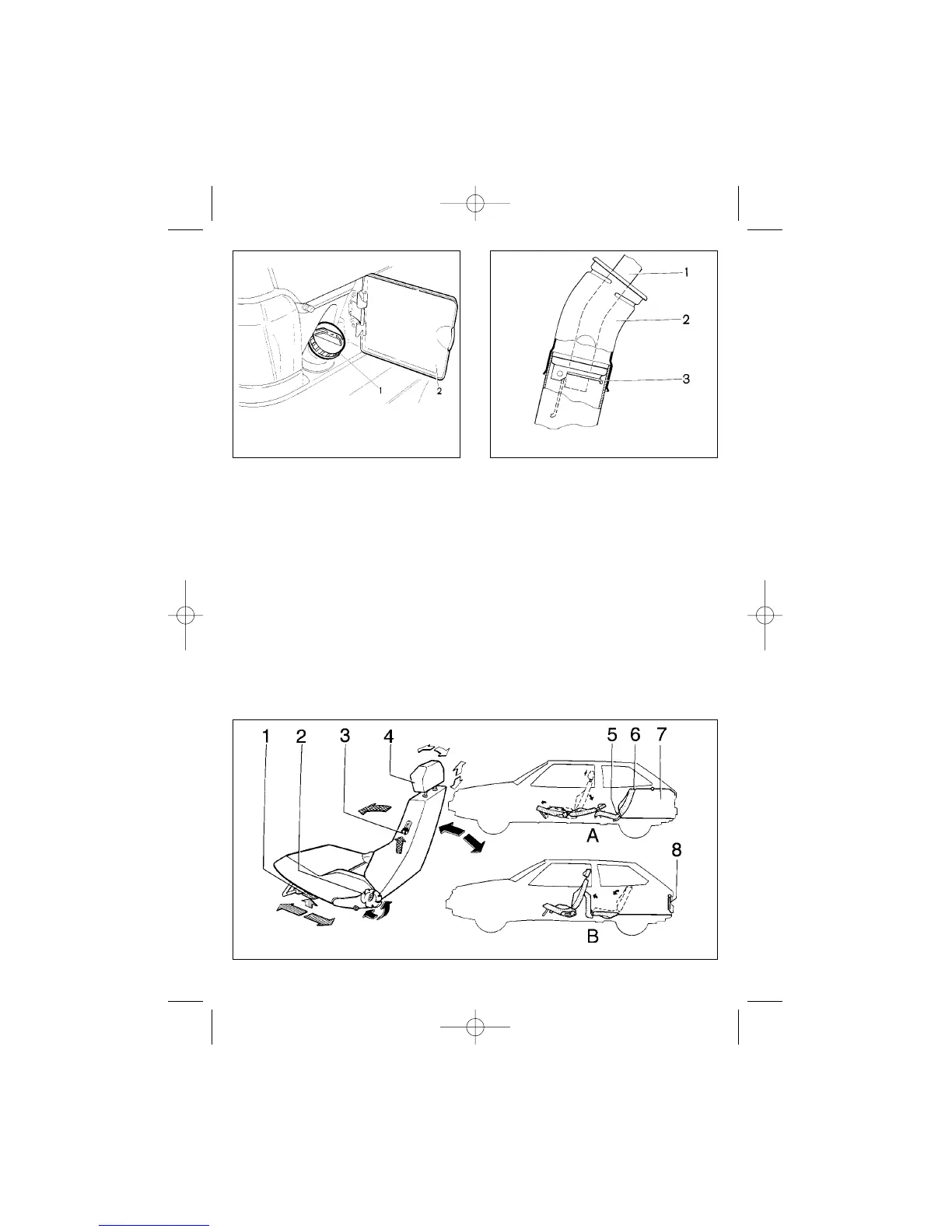

Fig. 10. Fuel tank filler neckFig. 9. Fuel tank cap
Fig. 11. Seats
