Run Time («T» button) — indicates
trip time starting from the moment
when the START button was depres-
sed and up to 99 h 59 min, less the time
when the vehicle was stopped with igni-
tion off.
Warning!
The trip computer LCD goes off at
ignition switch-off, however the
parameters are stored and the clock
continues to run. All information is
lost if the storage battery is discon-
nected.
If the system voltage drops to no
less than 6 volts, the stored parame-
ters remain and the clock continues
to run.
STEERING COLUMN
STALK SWITCHES
Turn indicators and main/ low
beam stalk switch 1 (Fig. 23) has the
following positions:
I — turn indicators are OFF; if head-
lights are energized, low beam is ON;
II — left turn indicator ON (non-fixed
position);
III — left turn indicator ON (fixed
position);
IV — right turn indicator ON (non-
fixed position);
V — right turn indicator ON (fixed
position);
VI — (lever pulled in), main beam
ON, regardless of the exterior lights
switch position (non-fixed position);
VII — (lever pushed out), main
beam ON, if headlights circuit is ener-
gized (fixed position).
Windscreen/rear window wiper/
washer switch 2 has the following
positions:
I — windscreen wiper/washer OFF;
II — intermittent operation of wind-
screen wiper (non-fixed position);
III — intermittent operation of wind-
screen wiper (fixed position);
IV — low speed of windscreen
wiper;
V — high speed of windscreen
wiper;
VI — (lever pulled in) windscreen
washer is turned on (non-fixed posi-
tion), windscreen wiper on;
VII* — rear window wiper ON (fixed
position);
VIII* — rear window wiper and
washer ON (non-fixed position).
DOOR MIRROR CONTROL
Control knob for door mirror adjust-
ment is optional. It is located on the
floor tunnel. Tilt knob 2 (Fig. 24A) to
adjust mirror position vertically or hori-
zontally.
To select a mirror rotate the knob by
90° (indicated by arrow mark 1). Since

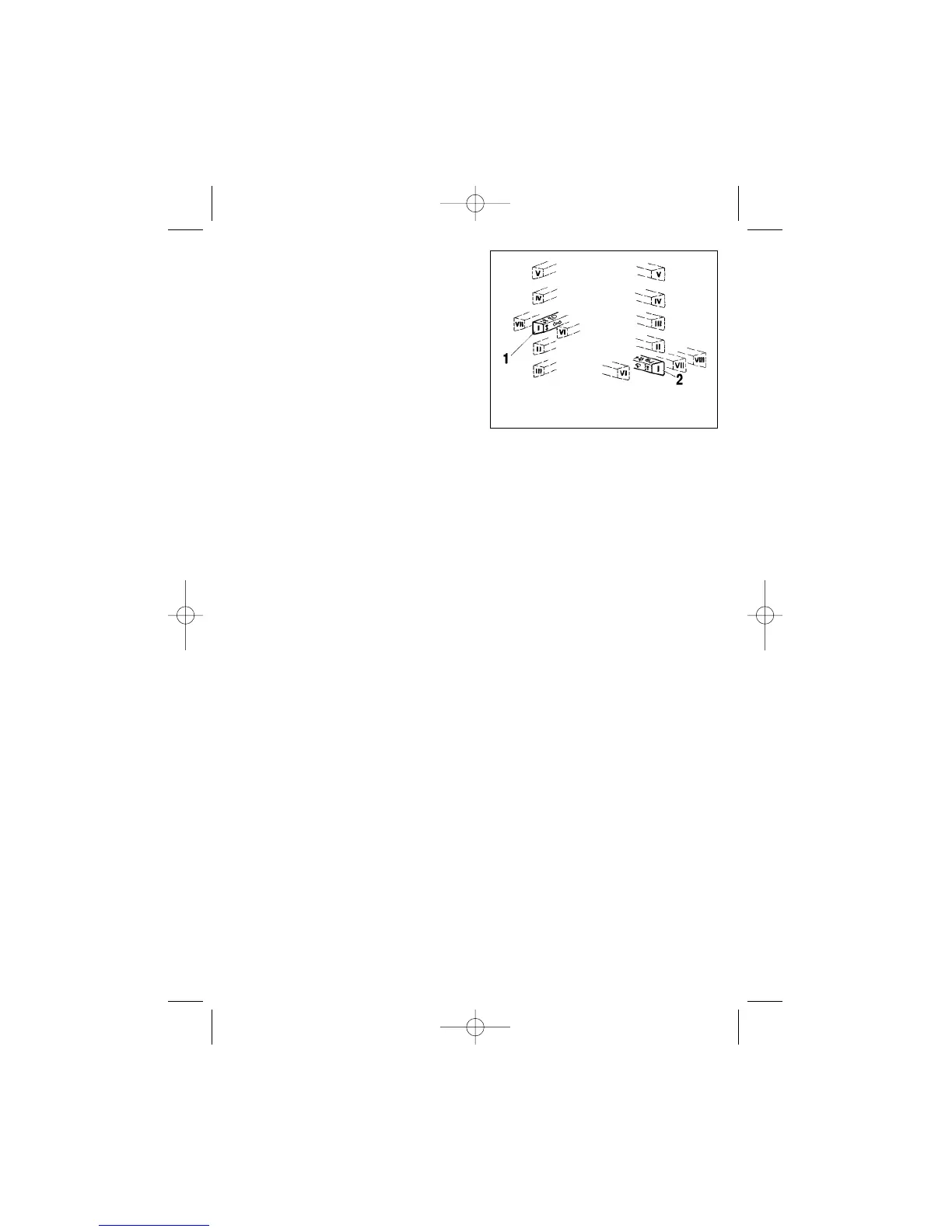

Fig. 23. Steering column stalk
switches
______________
* For hatchback vehicles.
