Never use a makeshift jumper or a
fuse with different rating to replace a
blown fuse.
No fusible links are used to protect
the circuits of the following components:
ignition, starter, alternator, headlamp
activation relay and central door locking
relay.
BULB REPLACEMENT
For replacement use the bulbs as
listed in Appendix #2.
To replace headlamp light bulbs,
unscrew bolts 1 and remove cover 2
(Fig. 44). Disengage retaining spring 5
and remove connector 6 with bulb 4.
To replace the side-marker light
bulb, remove bulb holder 7 assembly
from the socket, turn the bulb counter-
clockwise and pull it out.
To replace a bulb in the front turn-
signal lamp, disengage connector 3,
turn the holder counterclockwise and
pull it out.
To replace bulbs in rear lamps 3
(on vehicle body – Fig. 45; on boot
lid/tailgate – Fig. 46), open the boot lid,
41

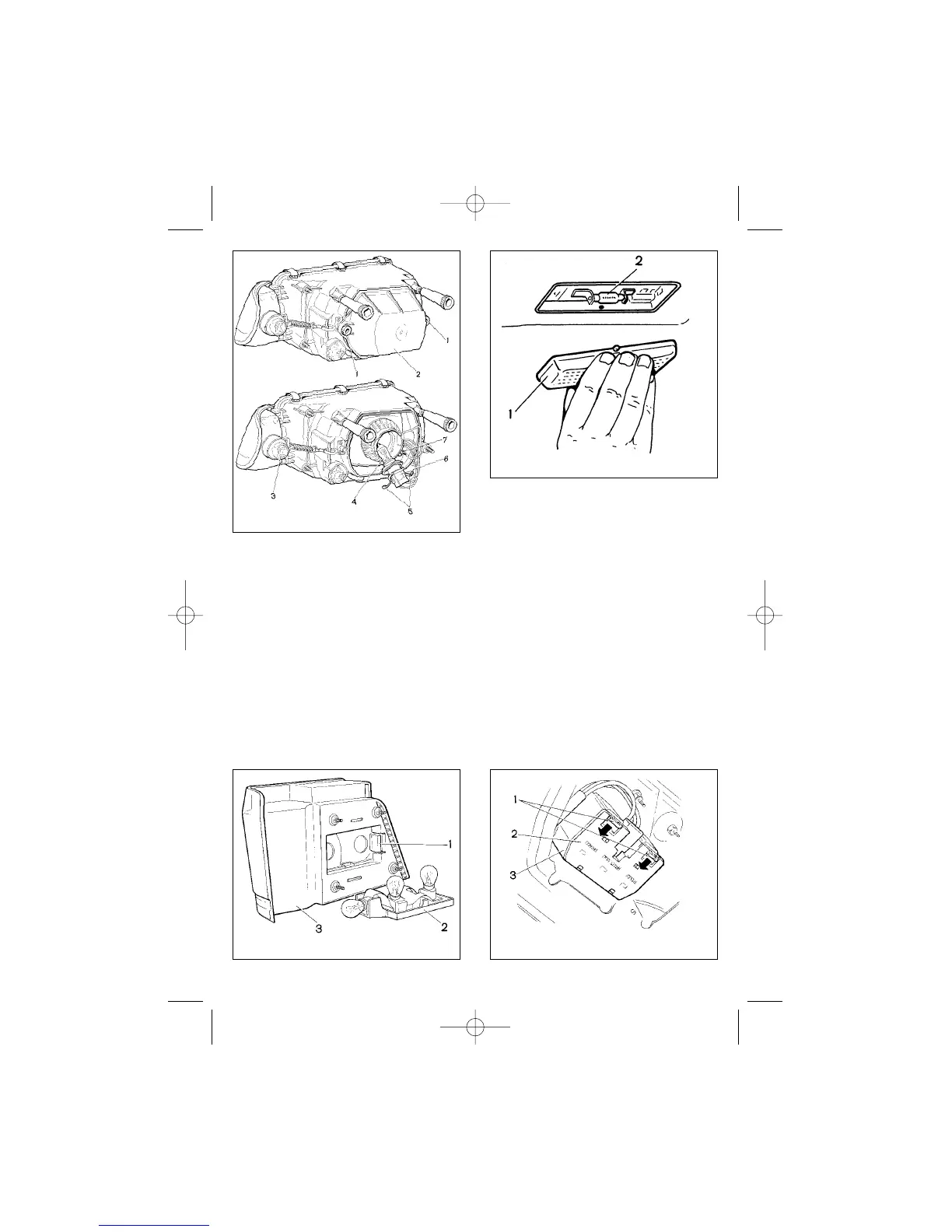

Fig. 46. Tail lights on the boot lid/
tailgateFig. 45. Tail lights on the body
Fig. 44. Headlamp
Fig. 47. Interior light
