8
(Fig. 7). Now open the bonnet full way
and set up stay 2 as shown in the fig-
ure. If exterior illumination is on, lamp 3
will light up the engine bay. Rotate the
lamp holder to redirect the light.
When closing the bonnet, check a
reliable locking — a typical click should
be heard and the bonnet should remain
closed, when pressed upon. Before
closing the bonnet, make sure the safe-
ty hook moves freely without jamming
and always returns to its home position.
BOOT LID
To access the luggage compartment
turn key 2 (Fig. 8) clockwise and hold-
ing it in this position lift boot lid 1. The
boot lid is held open by torsion springs.
When the boot lid is up and the exte-
rior lights are on, the luggage compart-
ment is illuminated with lamp 3.
FUEL TANK CAP
To access fuel tank cap 1 (Fig. 9),
open flap 2. All caps are equipped with

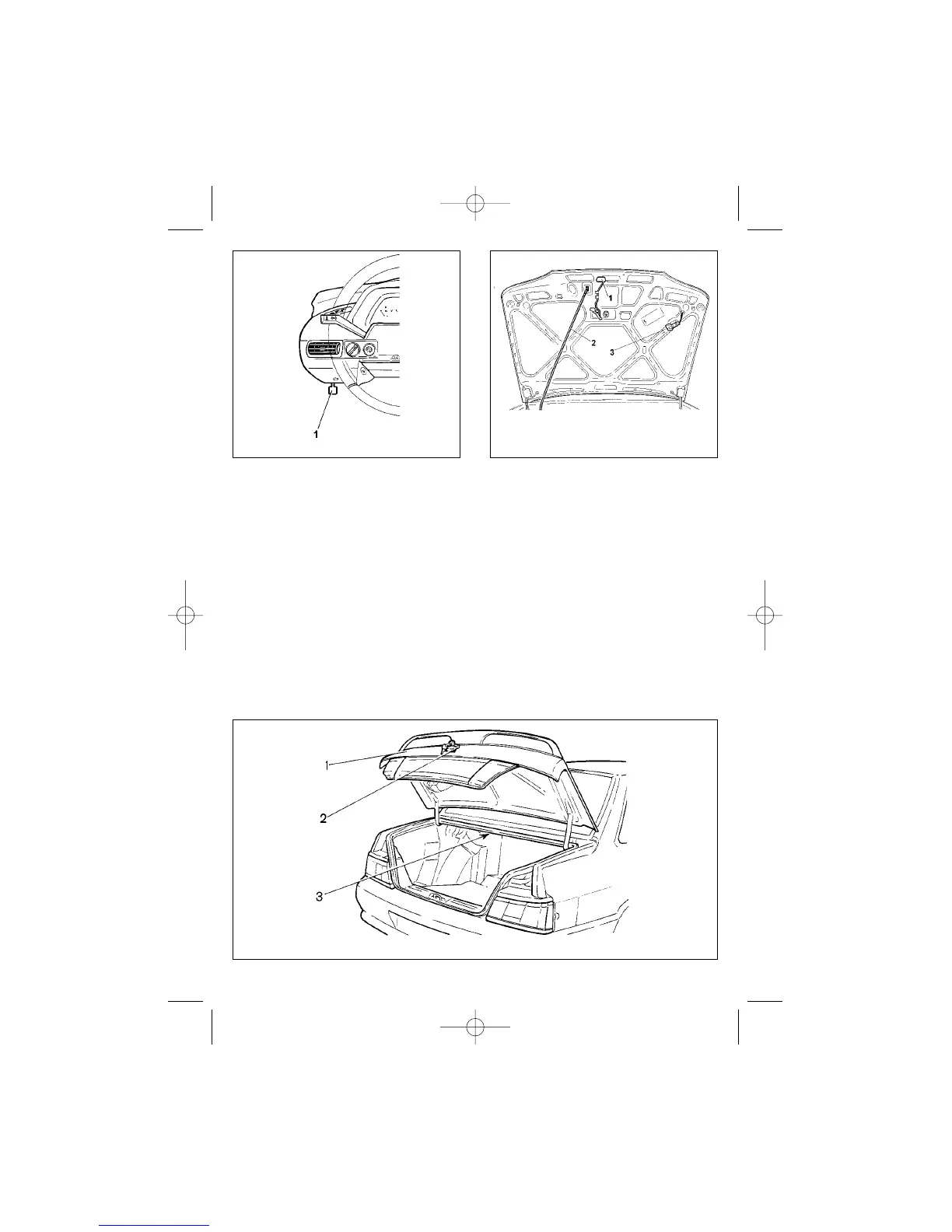

Fig. 6. Bonnet release handle
Fig. 7. Opening the bonnet
Fig. 8. Boot lid
