Veeder-Root TLS-450PLUS Upgrade Instructions

Preparing The TLS-450 Console For Upgrade Installing New TLS-450PLUS Display Door
16

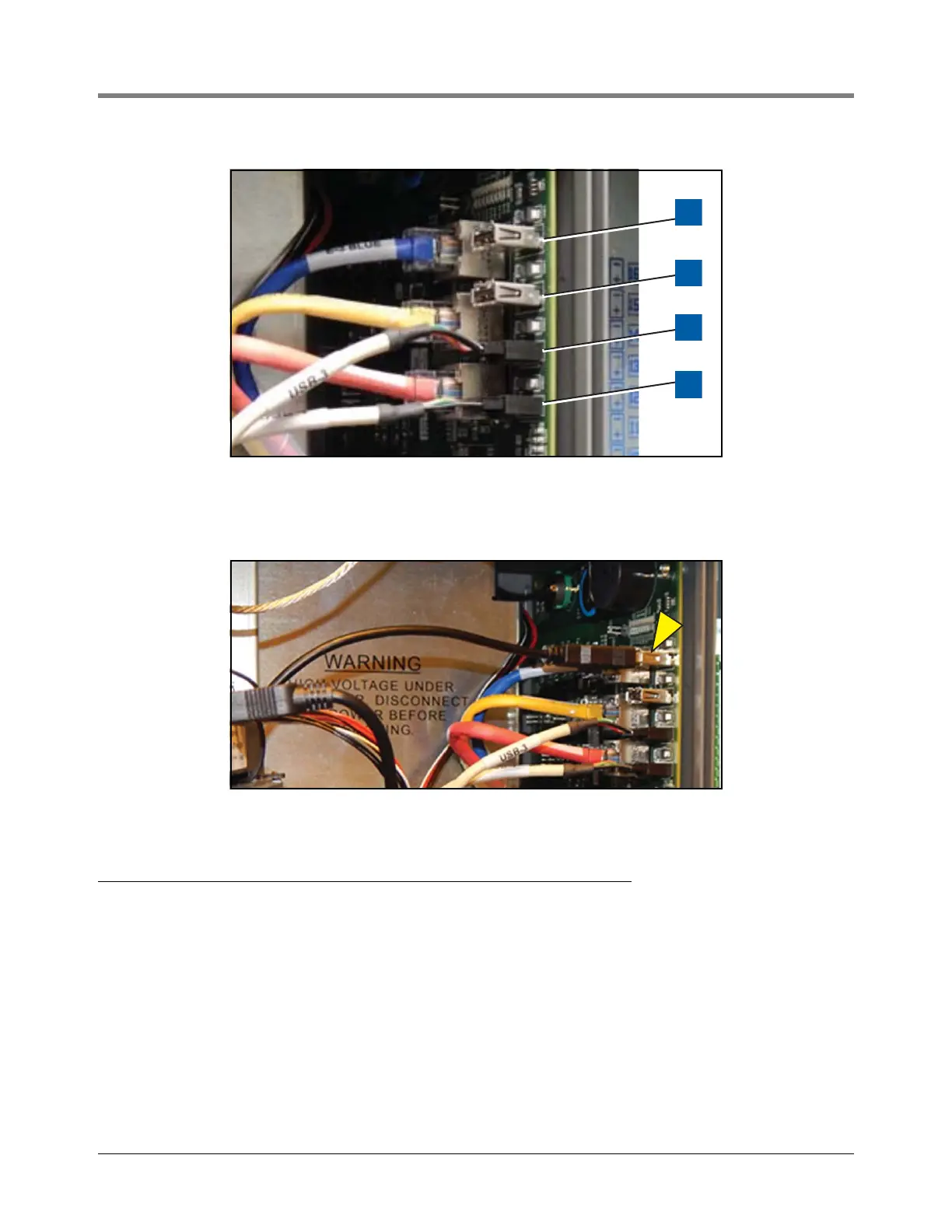

Figure 19. Connect USB Module Cables
7. If there is an optional printer, connect its USB cable to the CPU board’s USB 1 (top) connector (see
Figure 20).
Figure 20. Connect Optional Printer USB Cable
Installing New TLS-450PLUS Display Door
1. Install the new TLS-450PLUS Display door on the console by attaching the door top and bottom hinges to the
console. Use the two hinge shoulder screws retained following removal of the TLS-450 Display door (see
Figure 21).
1
2
3
4
