Vega VEGAPULS C 21 User Manual

59
14 Supplement
VEGAPULS C 21 • Modbus and Levelmaster protocol
58343-EN-200806
The basic number of the input registers is always added to the input register address of VEGAPULS
C 21.
This results in the following constellations:
•
Fisher ROC 809 - Register address for 1300 is address 1300
•
ABB Total Flow - Register address for 1302 is address 1303
•
Thermo Electron Autopilot - Register address for 1300 is address 1300
•
Bristol ControlWave Micro - Register address for 1302 is address 1303
•
ScadaPack - Register address for 1302 is address 31303
14.11 Dimensions
1 2 3
ø 68 mm
(2.68")
ø 6 mm
(0.24")
SW 41
ø 76 mm
(2.99")
G1½
G1; 1NPT
R1
1½ - 14 NPT
R 1½
23 mm
(0.92")
29 mm
(1.14")
109 mm
(4.28")

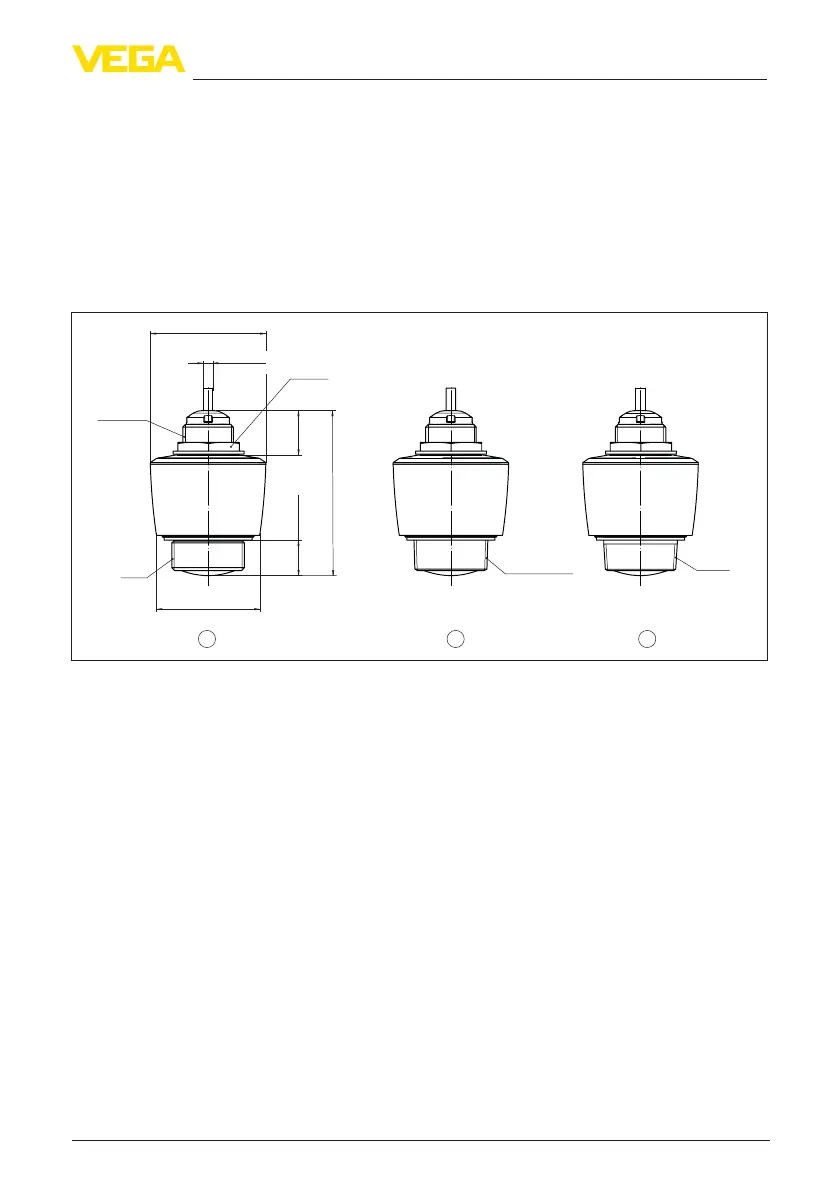

Fig. 29: Dimensions VEGAPULS C 21
1 Thread G1½
2 Thread 1½ NPT
3 Thread R1½
