Venmar E15 ECM HRV User Manual

15
For the Installer

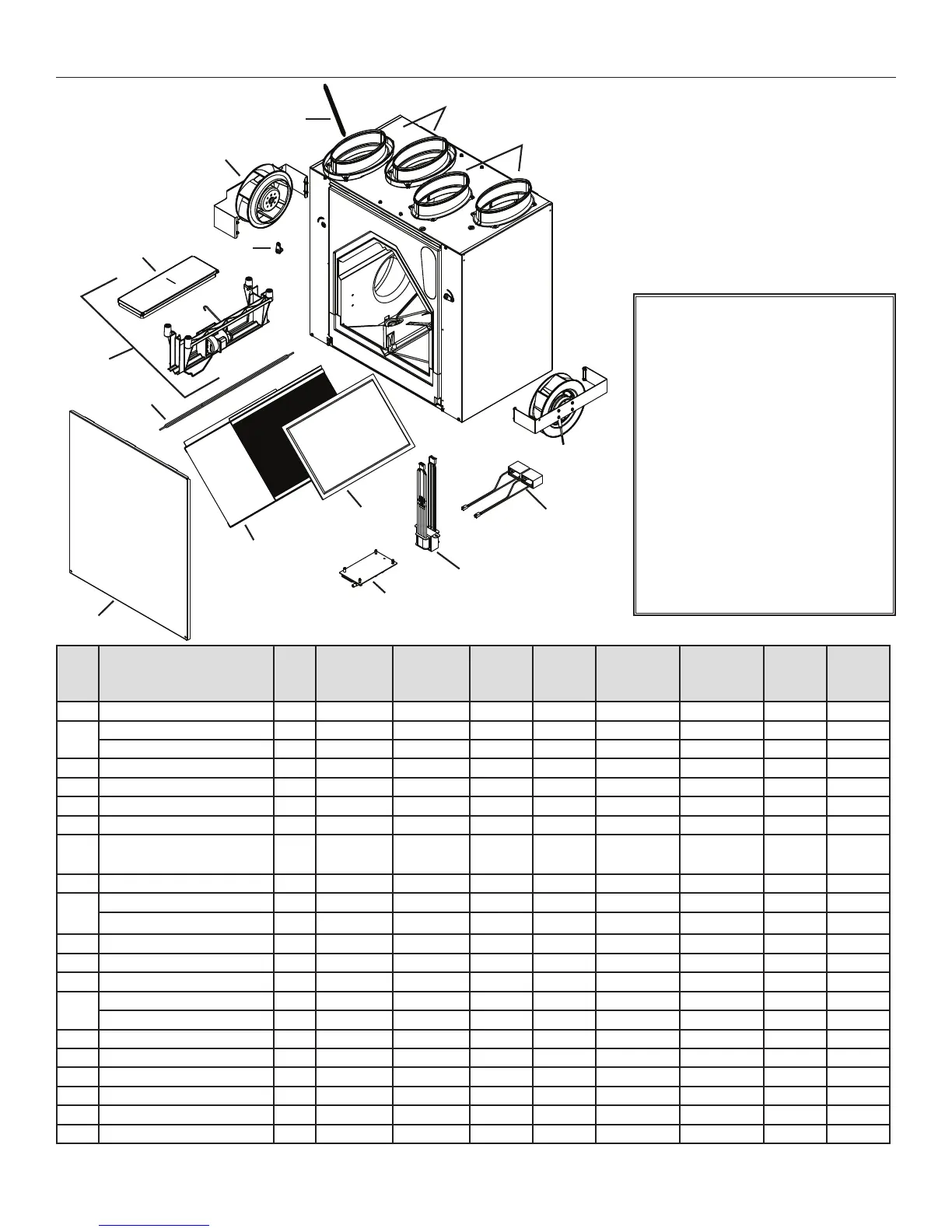

10. SERVICE PARTS
REPLACEMENT PARTS AND REPAIR
In order to ensure your ventilation unit
remains in good working condition,
you must use the manufacturer
genuine replacement parts only. The
manufacturer genuine replacement
parts are specially designed for each
unit and are manufactured to comply
with all the applicable certification
standards and maintain a high standard
of safety. Any third party replacement
part used may cause serious damage
and drastically reduce the performance
level of your unit, which will result in
premature failing. The manufacturer
recommends contacting a certified
service depot for all replacement parts
and repairs.
ITEM DESCRIPTION QTY.
E15 ECM
ERV
E15 ECM
HRV
E15
HRV
E10
HRV
90H-V
ECM ERV
90H-V
ECM HRV
90H-V+ 60H-V+
1O
VAL PORT 2 -- 18206 18206 18206 -- 18206 18206 18206
2
DOUBLE COLLAR OVAL PORT 2 -- 18207 18207 18207 -- 18207 18207 18207
DOUBLE COLLAR OVAL PORT 4 18207 -- -- -- 18207 -- -- --
3EXHAUST DAMPER SPRING 1 18221 18221 18221 18221 18221 18221 18221 18221
4M
OTOR ASSEMBLY 2 63561 63561 18197 18197 63561 63561 18197 18197
5BALANCING TOOL 2 18220 18220 18220 18220 18220 18220 18220 18220
6DEFROST DAMPER 1 18200 18200 18200 18200 18200 18200 18200 18200
7
D
AMPER SYSTEM ASS’Y
(INCLUDING ITEM 6)
1 18199 18199 18199 18199 18199 18199 18199 18199
8C
ORE FILTER 2 18204 18205 18204 18204 18204 18205 18204 18204
9
HEAT RECOVERY CORE 1 -- 18202 62178 62178 -- 18202 62178 62178
E
NERGY RECOVERY CORE 1 18042 -- --
--
18042 -- -- --
10 D
OOR ASSEMBLY 1 18209 18209 18209 18209 18208 18208 18208 18208
11 PCB 1 63559 63559 62255 62255 63559 63559 62255 62255
12 T
RANSFORMER 1 18218 18218 18219 62362 18218 18218 18219 62362
13
C
APACITOR 5 μF 2 -- -- 16042 -- -- -- 16042 --
CAPACITOR 6 μF 2 -- -- -- 61550 -- -- -- 61550
*THERMISTOR KIT 1 15749 15749 15749 15749 15749 15749 15749 15749
*H
ARDWARE KIT 1 08917 08304 08304 08304 08917 08304 08304 08304
*CAPACITOR 17 μF 1 -- -- -- 62177 -- -- -- 62177
* PCB CONNECTOR 1 16416 16416 16416 16416 16416 16416 16416 16416
*DAMPER RETAINING WIRE KIT 1 62715 62715 62715 62715 62715 62715 62715 62715
*DRAIN PLUG 1 08919 -- -- -- 08919 -- -- --
* Not shown.
VL0036
1
2
3
4
6
7
8
10
9
8
11
12
13
5
