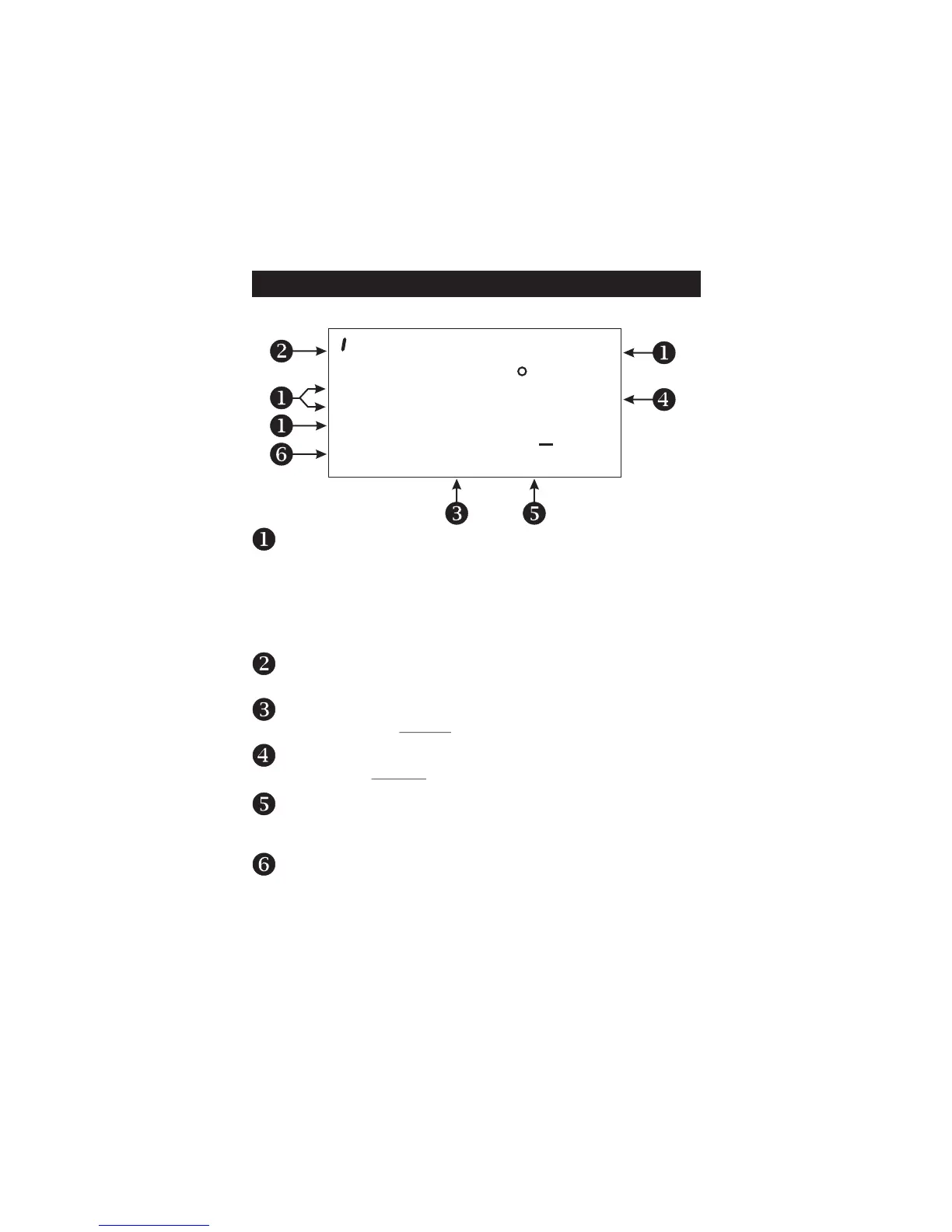

Mode Indicators - Page 6
Selects the operation mode of the equipment.
WAKE/SLEEP - Indicates the time period program
is enabled to run.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
OFF - Indicates heating and cooling are turned off.
Clock Display - Page 5
Indicates the current time of day.
Room Temperature Display
Indicates the current room temperature.
Desired Set Temperature - Page 7
Indicates desired room temperature.
Outside icon - Page 7
Indicates the temperature displayed is from
the optional outdoor sensor.
Fan On icon - Page 7
Indicates constant, continuous fan operation.
When Fan On is not lit - indicates the fan will
only operate when necessary to heat or to cool.
Display
12:00
88
I88
88
OFF
Am
Pm
:
ON
FAN
WAKE
SLEEP
OUT
SIDE
COOL
HEAT
