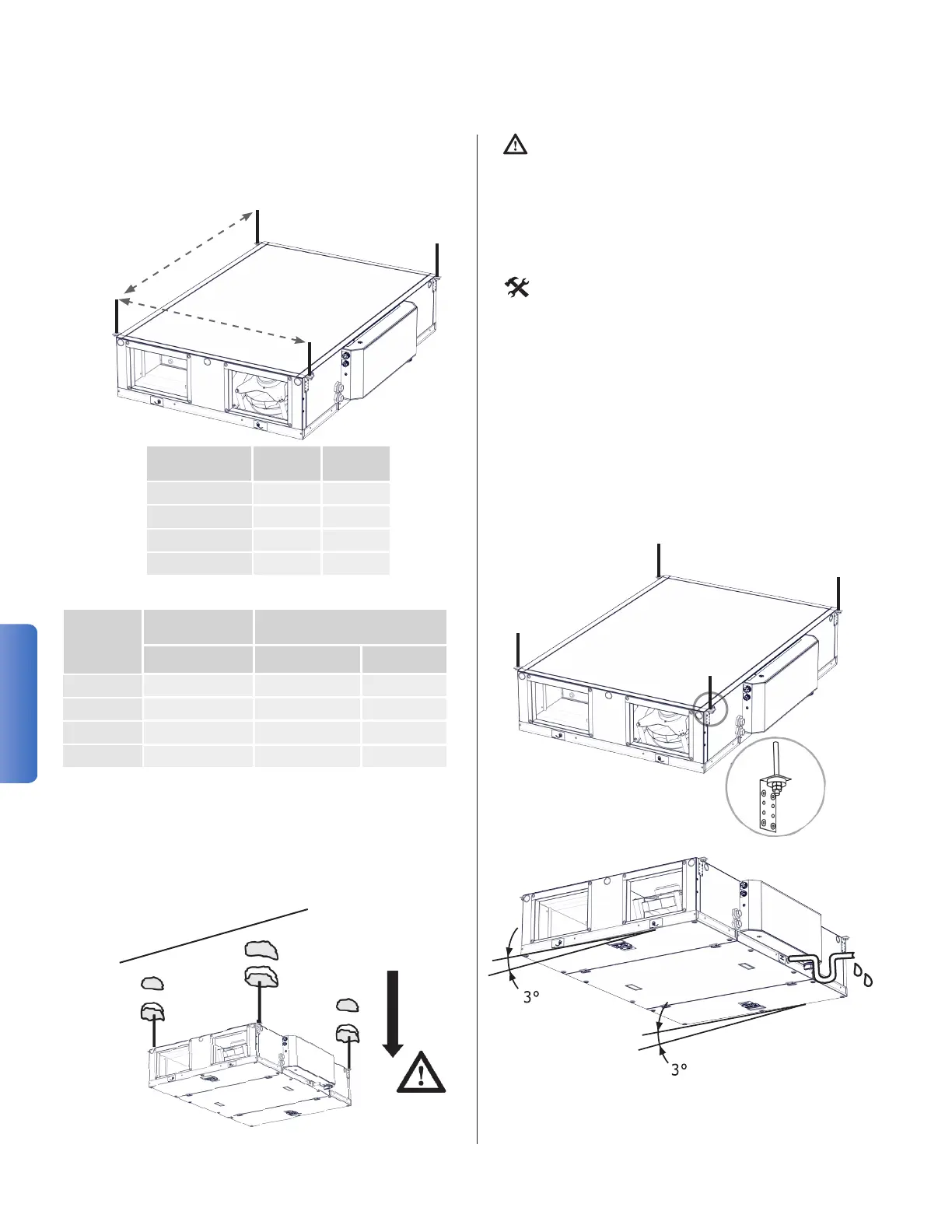

INSTALLATION
4. INSTALLATION
•Thesupportoftheunitshouldbesufciently
strong, it must correspond to the unit’s weight!
• Given its weight, lifting equipment will be re-
quired when installing the unit (e.g. a forklift)
or at least two more people to hold it.
●4M8locknuts
●4threadedrods
●4dowelsofsuitabletypeandsize(dependingon
the material of the ceiling and the weight of the
unit)
●drillwithbitsofsuitabletypeandsize
●pliersandwrenches
Place the unit horizontally and then tilt it
3° to drain the condensate.
YOU WILL NEED
UNIT
A B
VS250 CM
27.6 44.1
VS400 CM
39.4 52.4
VS900 CM
51.2 64.2
VS1200 CM
64.2 76.0
Use the drilling template below
to place the anchoring points.
A
B
Drill the openings in the ceiling, check the strength
of the material and fasten the unit to the side
brackets
with the ZTZ-M8/1,0 threaded rods.
ATTENTION!
UNIT
Weight of unit (lbs) Weight of accessories (lbs)
Standard W.C.O. module DX module
VS250 CM
154.3 56.2 52.9
VS400 CM
198.4 70.5 66.1
VS900 CM
363.8 81.6 77.2
VS1200 CM
529.1 94.8 88.2
4.1 HANGING THE UNIT
