Ventacity Systems VSCM Series - postheater-module-installation

18
Rev. 01.01
INSTALLATION

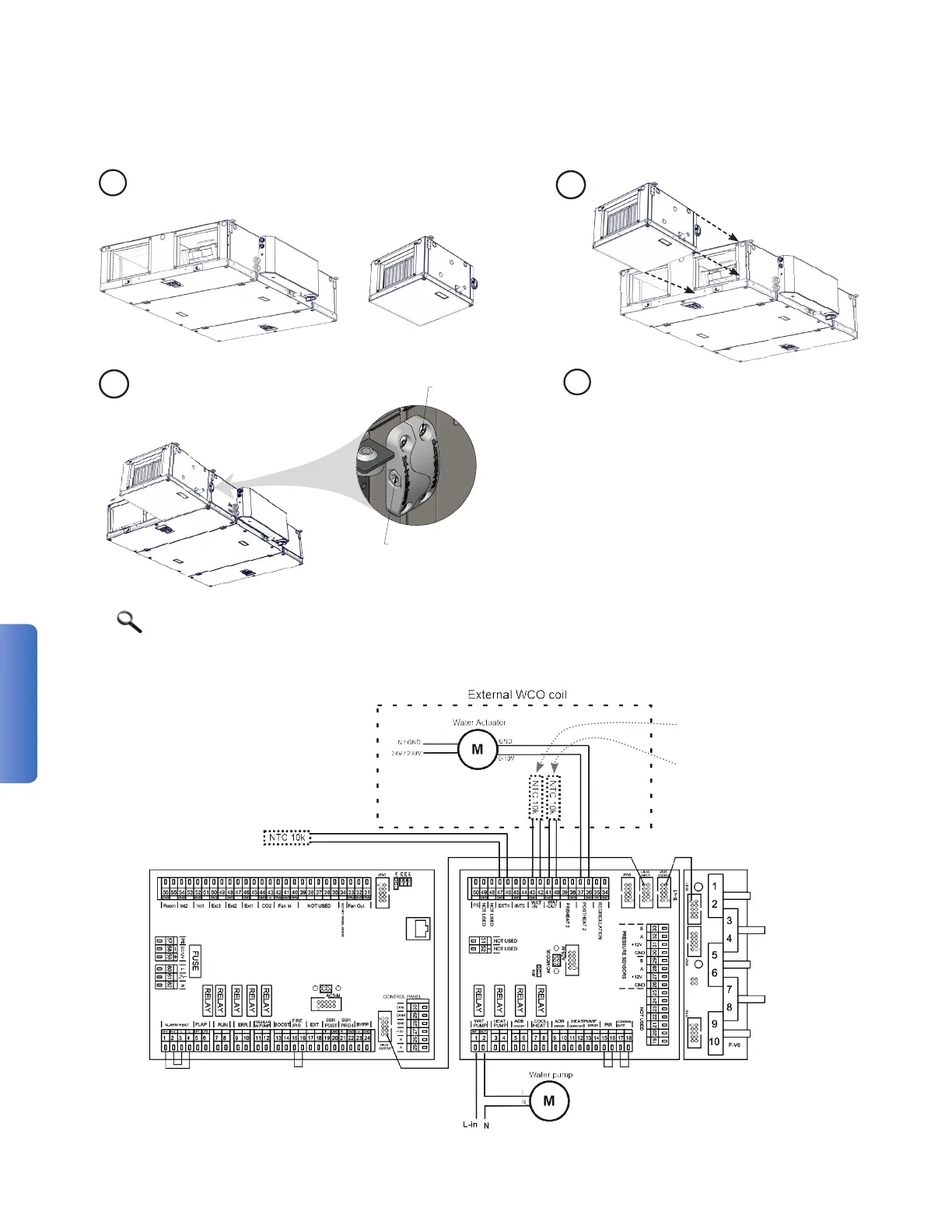

4. INSTALLATION
The external module includes sensors, PE grounding conductor and fasteners.
MODUL
JEDNOTKA
3D-Intelliclamp
4 x SR-ISO7380-5,0x25
(NA 1 UZAVER 3D-Intelliclamp)
A
DETAIL A
MĚŘÍTKO 1 : 1
SR-ISO7380-5,0x25
M8x35 DIN 912
3.
1.
2.
4.
Wiring
See subsequent diagrams
Wiring example of extrnal water change-over (WCO) module
Temperaturte sensor
Supply duct after post-heater/cooler
Temperaturte sensor
Water-IN
Temperaturte sensor
Water-OUT
4.6 POSTHEATER MODULE INSTALLATIONS
