Forecourt Controller Interface Installation Guide 27

August 11, 2016

2. Strip 1/4-inch of insulation from each DCR wire and twist the ends.

Connect the wires to the connector blocks and secure by tightening the

screws on the connector block.

3. Insert the connector blocks back into the RS485 board.

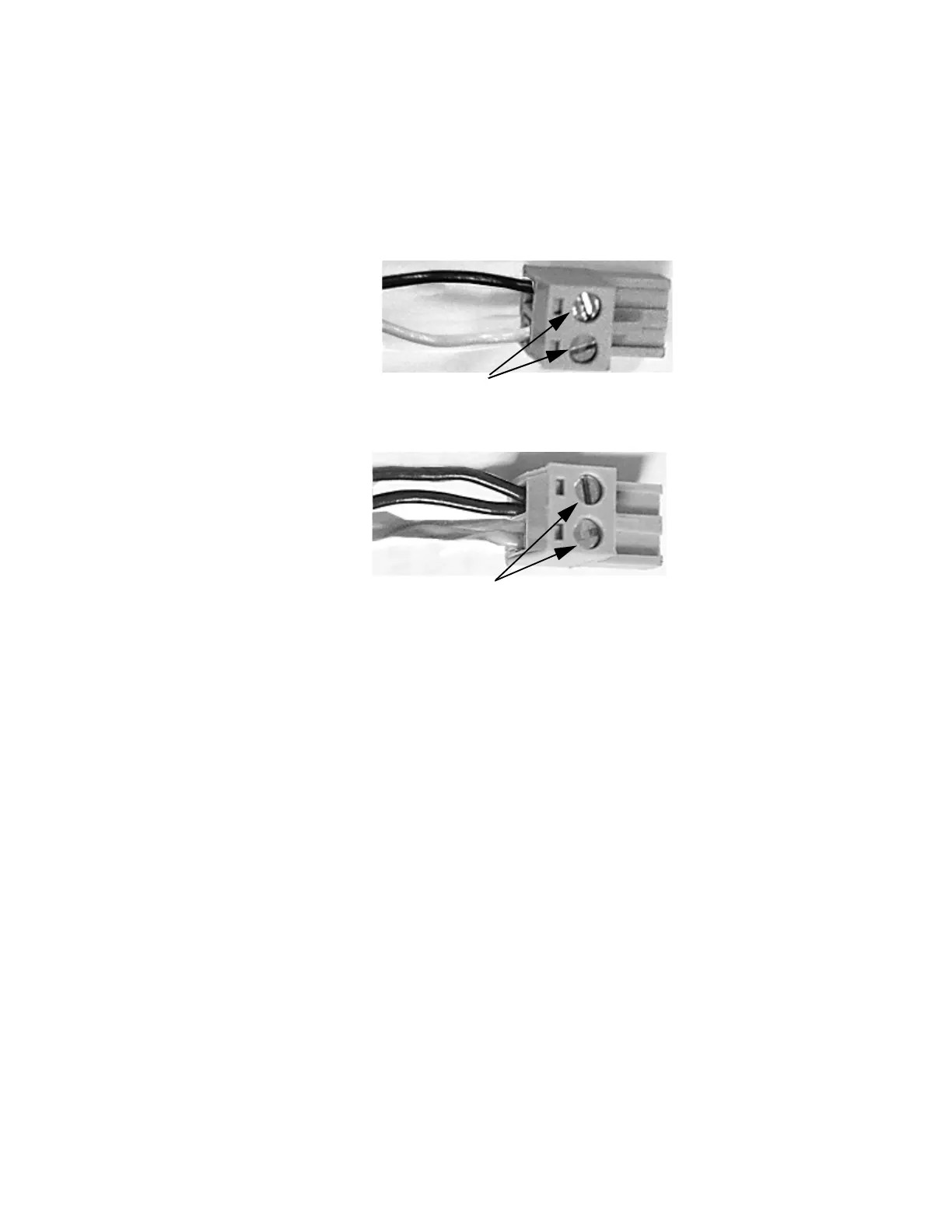

Connector Block with 2 Wires

Screws

—

Connector Block with 4 Wires

Screws

—
