V200C AND V400C INSTALLATION GUIDE 45
CHAPTER 7
Port Pinouts
Port Pinout
Definitions

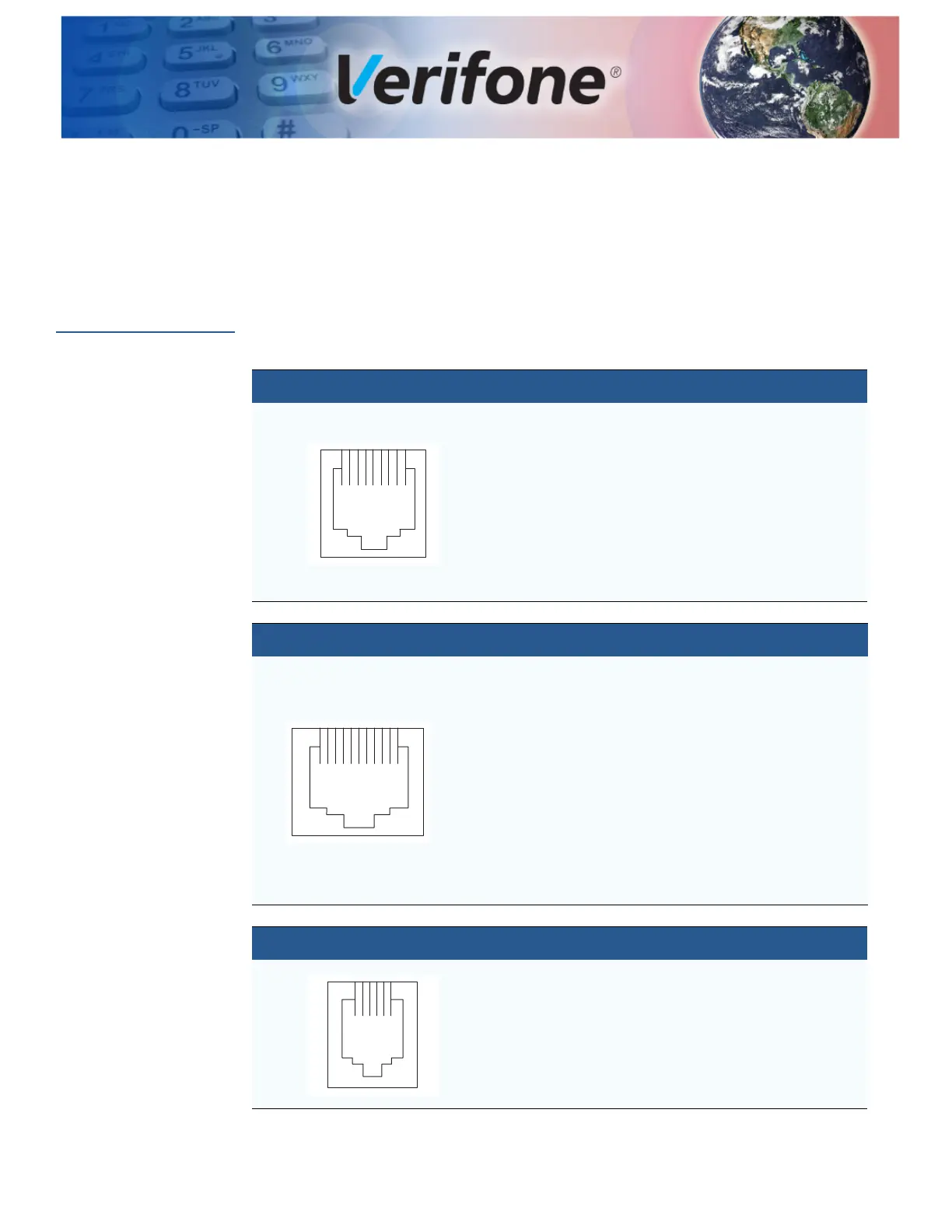

This section contains port pinout tables for V200c and V400c terminals.
Ethernet Port (LAN)
Multi-
Communication
Port (COM1)
Telco Port
Connector PIN Function Description
1 TXD+ Transmit data +
2 TXD- Transmit data -
3 RXD+ Receive data +
4 NC No connection
5 NC No connection
6 RXD- Receive data -
7 NC No connection
8 NC No connection
18
Connector PIN Function Description
1 VUSB 5 V USB power (500 mA)
2 PORTPWR Port power (11.6 V typ., 500 mA)
3 NC No connection
4 NC No connection
5 GND Power ground
6 RXD Receive data
7 TXD Transmit data
8 NC No connection
9 USB0_DP USB signal +
10 USB0_DM USB signal -
110
Connector PIN Function Description
1 NC No connection
2 NC No connection
3 Tip Telephone Line
4 Ring Telephone Line
5 NC No connection
6 NC No connection
16

VeriFone V200c Specifications

General

Memory	64MB SDRAM
Touchscreen	Capacitive
Connectivity	Ethernet, RS-232, USB
Operating System	Verix
Card Readers	Triple track MSR, EMV smart card reader, Contactless NFC
Power Supply	AC input 100-240V, DC output 5V
Operating Temperature	0°C to 40°C
Certifications	EMV Level 1 and 2, PCI
