2. HARDWARE OVERVIEW
This section describes the physical characteristics of the LD8, provides information on the different possible
LED statuses and details the interface panel inputs.
2.1 OVERVIEW AND DESCRIPTION
• The LD8 is a small, lightweight and low power system.
• VERIPOS provide a +9 to +36 VDC power supply with the LD8.
• The unit incorporates front panel LED indicators for status monitoring.
• Command-line driven terminal configuration can be carried out via a web-based interface.
2.2 LEDS

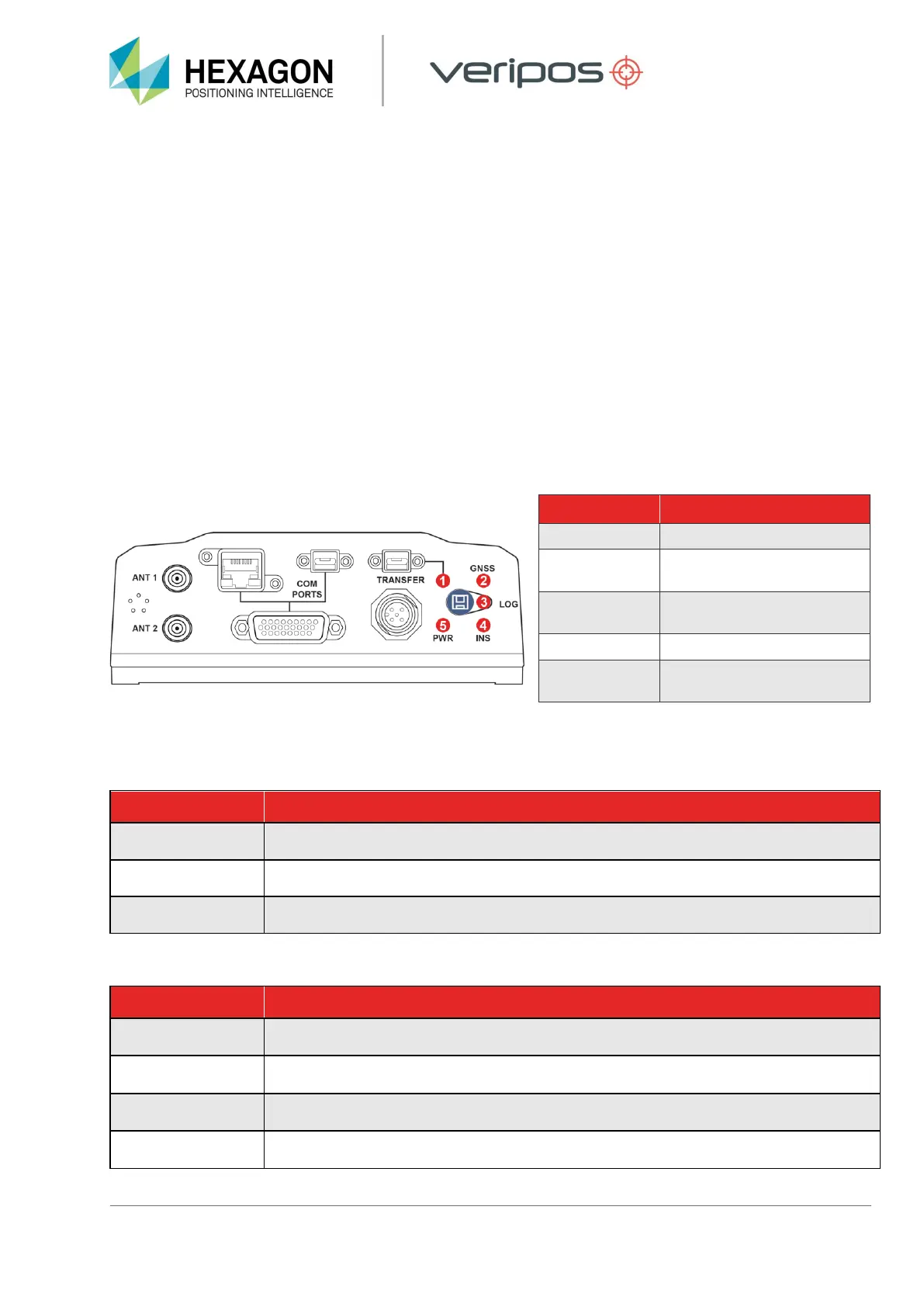

The LD8 has five LED indicators to communicate the LD8 receiver status:
Label
Description
1. TRANSFER
Not currently supported.
2. GNSS
Indicates the position status of
the receiver.
3. LOG
Indicates the status of logging
to the receiver internal memory
4. INS
Not currently supported.
5. PWR
Indicates the power status of
the receiver.
The following subsections detail the different possible LED states and their corresponding definitions:
2.2.1 PWR LED
State
Description
Solid green
Operational mode
Solid yellow
In the process of booting
Solid red
Error, or update of receiver component in progress
2.2.2 GNSS LED
State
Description
Solid green
PPP (APEX or Ultra) solution
Slow green blink
RTK
Fast green blink
DGNSS (Standard or SBAS) solution or uncorrected.
Solid yellow
No solution
