VERITAS NetBackup 5240 User Manual

Understanding the
NetBackup 5240 appliance
configuration H
This chapter includes the following topics:
■ NetBackup 5240 Appliance configuration H
■ QLE8442 dual-port 10Gb Ethernet/iSCSI capable card with SFP+ modules
NetBackup 5240 Appliance configuration H
The rear panel of the NetBackup 5240 Appliance contains three PCIe riser card
assemblies. PCIe riser card assemblies 1 and 2 each support three standard PCIe
cards, while PCIe riser card assembly 3 supports two low profile PCIe cards. The
slots are labeled 1 to 8. Slots 1, 2, and 3 are located in PCIe riser card assembly
2. Slots 4, 5, and 6 are located in PCIe riser card assembly 1, while slots 7 and 8
are located in PCIe riser card assembly 3.

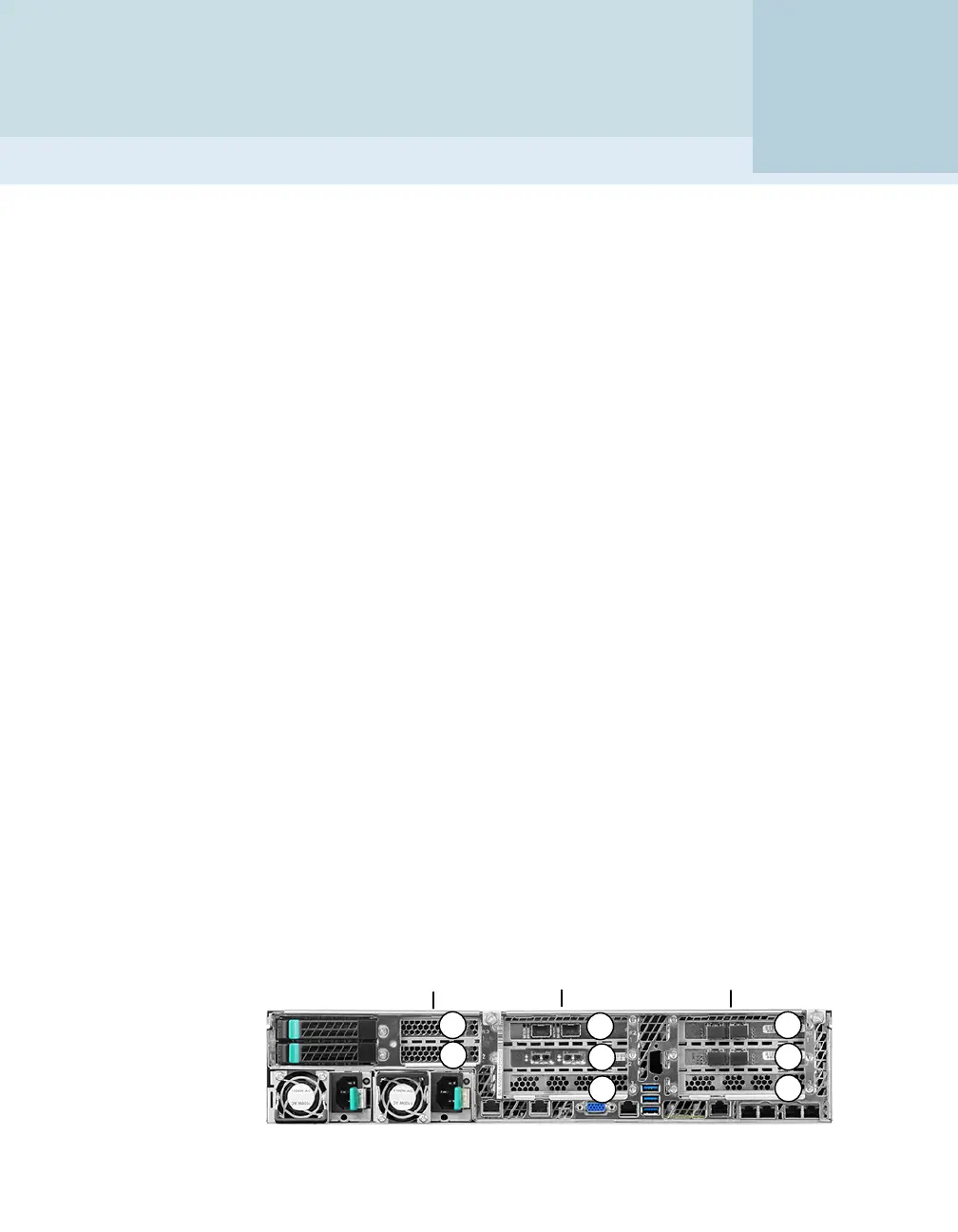

Figure 2-1
Rear panel riser assembly locations and PCIe slot assignments
for configuration H
7
3
2
8
4
5
6
Riser
Assembly 3
Riser
Assembly 2
Riser
Assembly 1
1
2
