Vermeiren Luna Basic 2 - 2.5 Emergency lowering of the headrest; 2.6 Side railings (For Luna 2, Luna Basic 2)

Luna 2, Luna Basic 2, Luna UL 2
2016-06
Page11

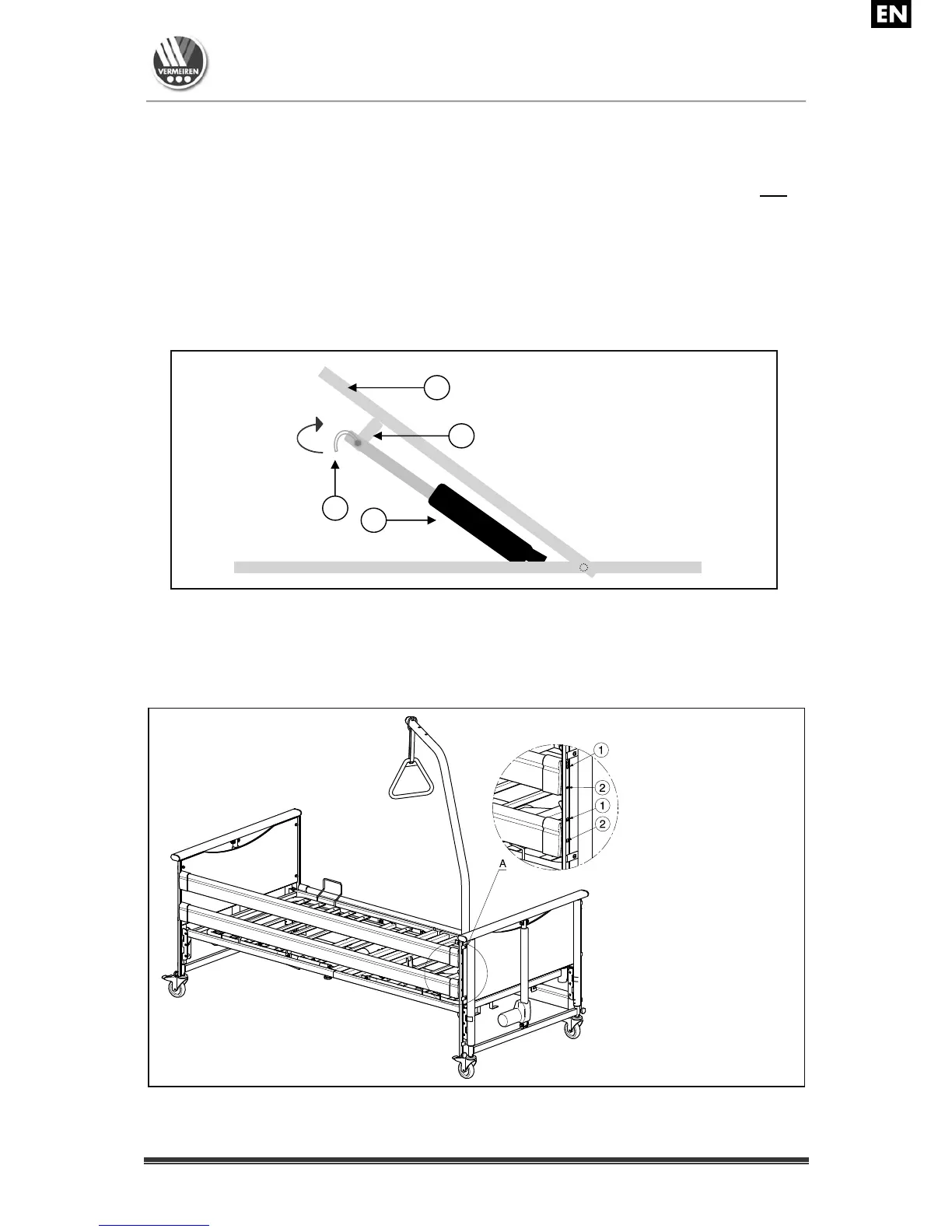

2.5 Emergency lowering of the headrest
L
WARNING: Risk of injury - Make sure that there are no objects or body parts
between the headrest and the frame.
L WARNING: Risk of injury - Emergency lowering is only permitted if at least two
persons are available.
The headrest can be lowered manually (emergency lowering in the case of motor failure).
Procedure: 1. Turn the securing loop of the upper motor over.
2. One person holds the side of the headrest while another person pulls
the suspension pin out and removes the motor from its holder.
3. Lower the headrest gently.
2.6 Side railings (For Luna 2, Luna Basic 2)
L WARNING: Risk of injury, entrapment - Place the side rails in the lowest position
when the slatted frame is mounted in the lowest height. To respect the patient
entrapment area according European standards.
To place the side rails in the lowest position it is necessary to mount the screw Ⓐ and stop
Ⓑ in the lowest hole (range 60 mm).
3
4
1
2
1 = Suspension pin
2 = Motor attachment
3 = Headrest frames
4 = Headrest motor
1 = Highest position
2 = Lowest position
