3.3 Assembly
L CAUTION: Chance of pinching - Do not place fingers between the components of
the bed.
L CAUTION: Risk of clamping - Keep fingers away from moving parts of the bed.
L CAUTION: Risk of injury - Check that both hooks of the attachment slatted frame
are mounted around the tubes of the attachment panels.
You should obey the assembly instructions of your nursing bed as explained below.
3.3.1 Head panel / feet panel
Mount the attachment of the slatted frame on the attachment of the head panel .
Secure the slatted frame with the locking clamps .
Repeat for the feetpanel. Check that the slatted frames are mounted very well.
N.B: The slatted frame headrest is fitted with sockets for the lifting pole as well as a
power
cable suspension.
The slatted frame can be mounted in 2 different positions (Ⓑ, Ⓒ): step 64 mm (not for Luna
UL 2).
Protect the electric cable to the motor against damage by squashing.

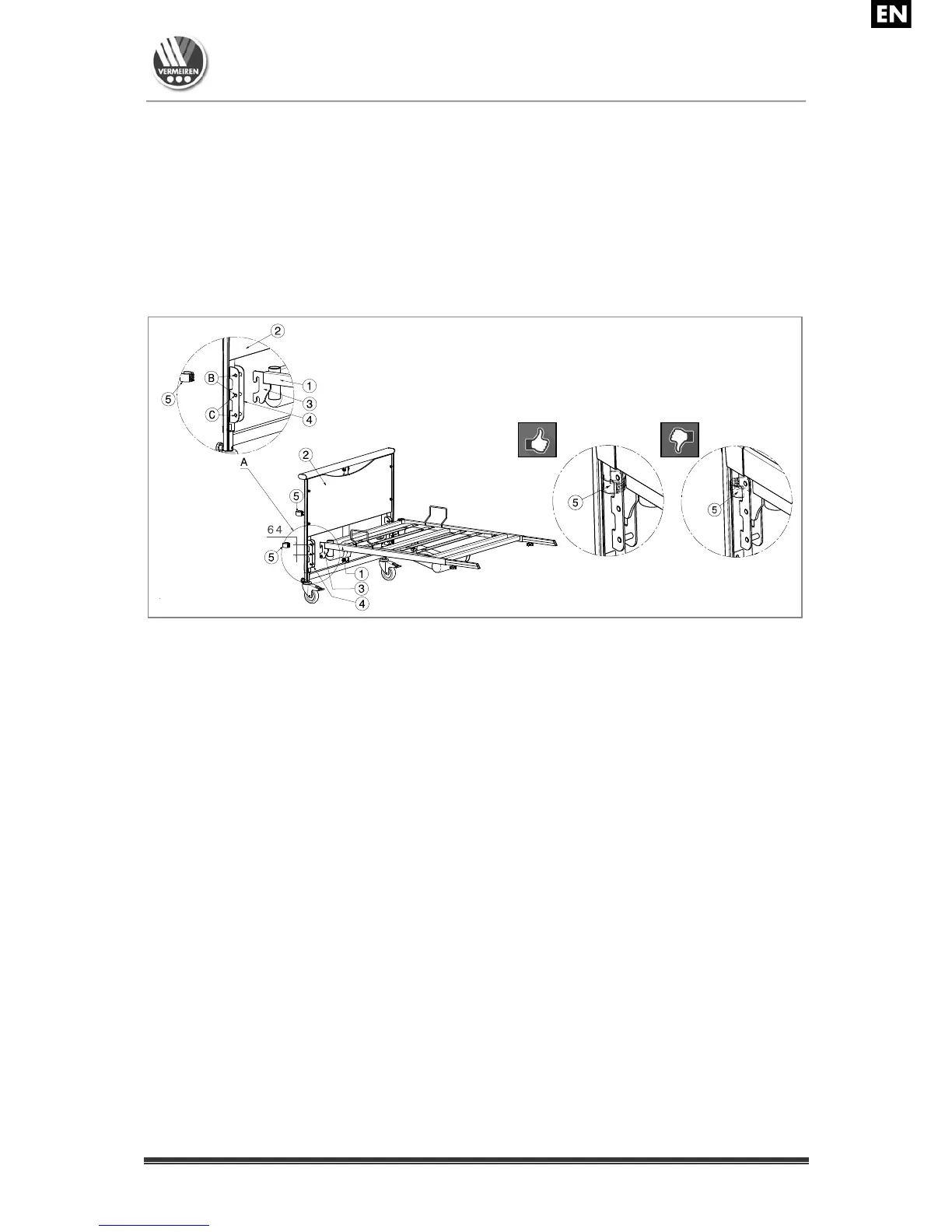

1 = Slatted frame
2 = Head and foot panels
3 = Attachment slatted frame
4 = Attachment panels
5 = Locking clamp
