Luna 2, Luna Basic 2, Luna UL 2
2016-06
Page20

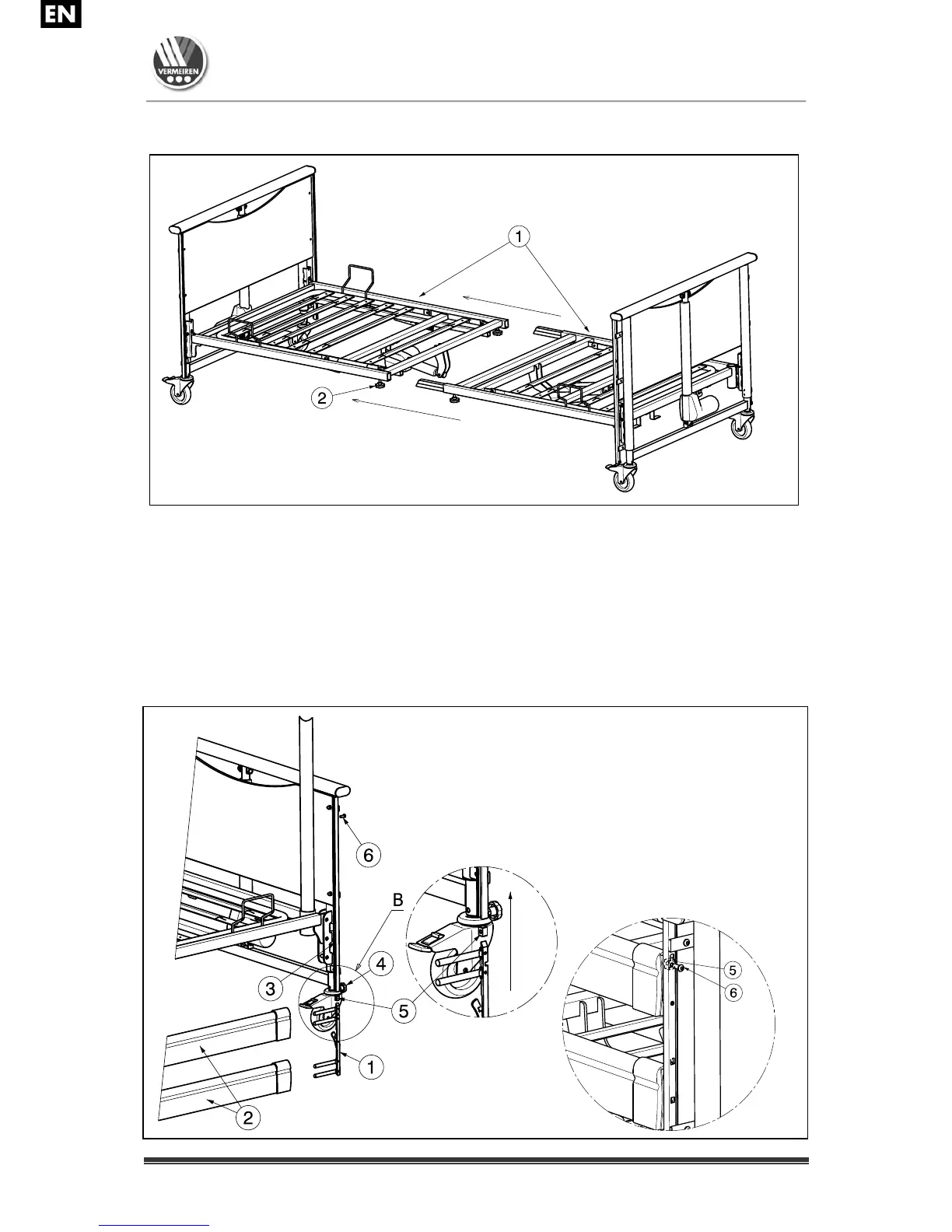

3.3.2 Slatted Frame
Loosen the fixing screws , if necessary.
Erect both slatted frames and insert them into each other flush.
Then properly retighten the fixing screws of the slatted frame connection.
Protect the electric cable to the motor against damage by squashing.
3.3.3 Wooden side railings (For Luna 2, Luna Basic 2)
Adjust the height of the bed in the middle. With a too low height it is not possible to mount
the side rails. With a too high height you must pull the side rails too far upwards.
1 = Slatted frames
2 = Fixing screws
1 = Bolt rails
2 = Wood slats (2 pieces each side)
3 = Sliding rail
4 = Locknut
5 = Stop
6 = Screw
