VersaPulse Select - Page 65

TROUBLESHOOTING
5-8
VersaPulse Select Service Manual
0621-499-01 12/95
®
®

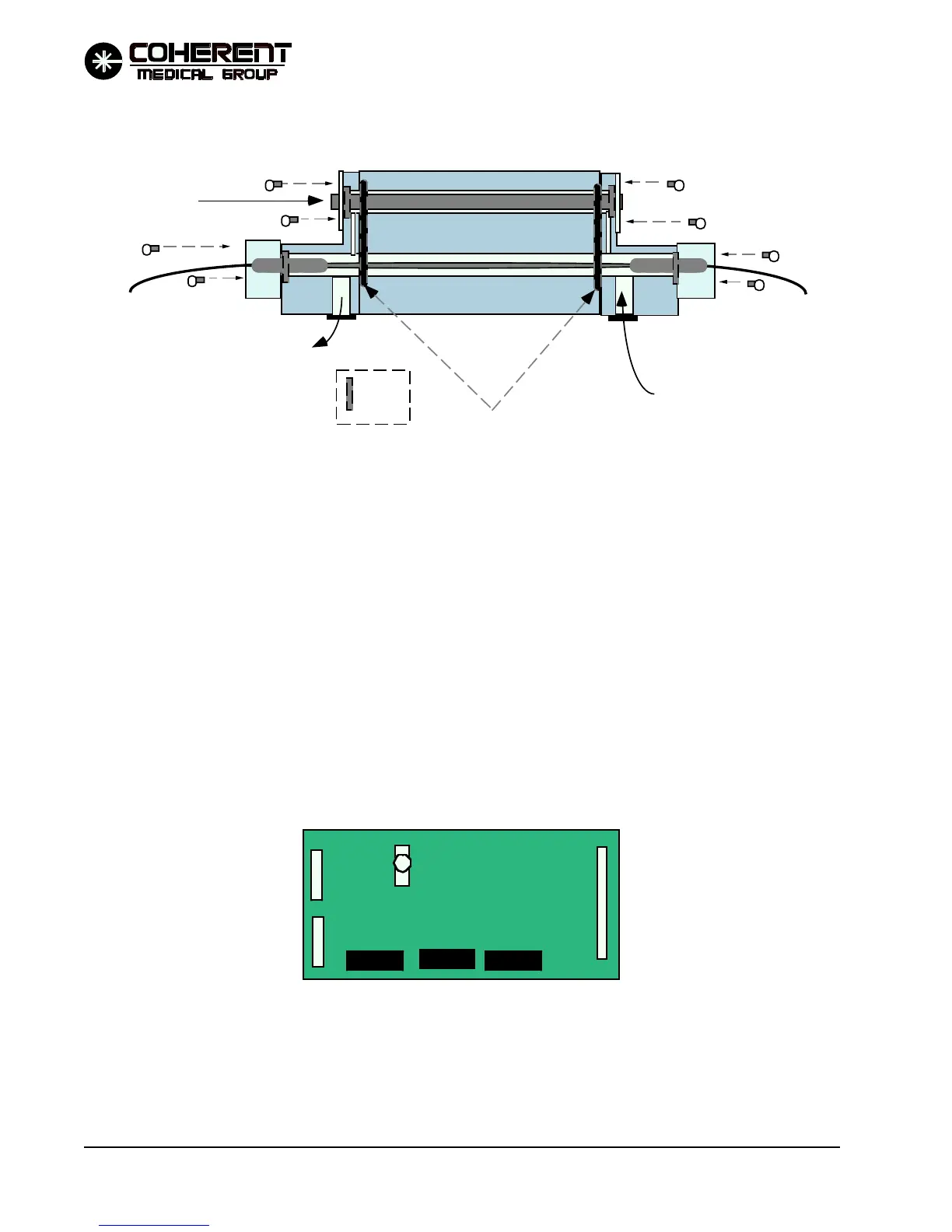

FIGURE 5.7 SHUTTER PCB LAYOUT
FIGURE 5.6 YAG CAVITY LAYOUT
(Service Attenuator)
(To J1 on controller
Single Solenoid PCB PCB)
Dual Solenoid PCB
Aiming Footswitch
laser interlock
J16
J15
J12
J11
J13
J14
SERVICE
SWITCH
O ring
YAG ROD
HR END - (flashlamp anode RED LEAD)
OC END (flash lamp cathode, BLACK LEAD)
FLASH LAMP
End Seals
