VX-4000 VHF Low-band Service Manual
3-1

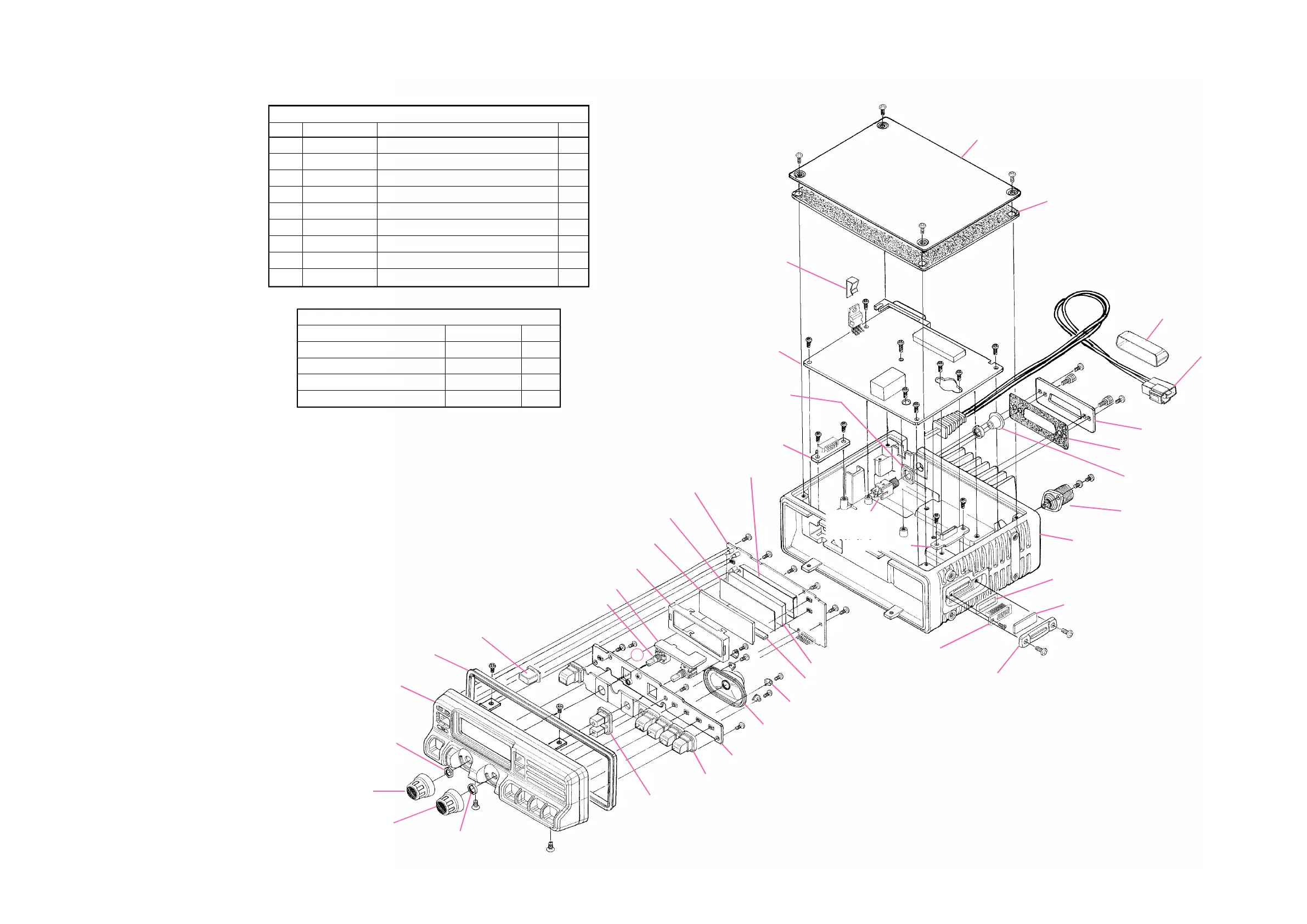

Exploded View & Miscellaneous Parts
RA0254300
KNOB
R6054387B
SPECIAL NUT
RA0251900
PANEL ASSY
RA0254200
RUBBER PACKING
RA0253900
RUBBER KNOB (CH)
KEY Unit
RA0254000
RUBBER KNOB (PWR)
RA0275500
RUBBER KNOB ASSY
R0145680
FITTING (x4 pcs)
M4090133
SPEAKER
VR Unit
RA0253000
LCD HOLDER
G6090140
LCD
RA0252800
DIFFUSER SHEET
RA0252300
LIGHT GUIDE
DISPLAY Unit
RA0252700
REFLECTOR SHEET
RA020830A
DOUBLE FACE (Both Side)
RA0254800
CONTACT ASSY (Both Side)
RA0215400
SHEET
RA0215000
EXT CAP
Ã
Â
À
MIC CONN Unit
MAIN Unit
T9206926
WIRE ASSY
RA0254900
CASE
RA0262700
PACKING SHEET
RA0262300
HOLDER PLATE
RA0252900
RUBBER CONNECTOR
RA0262400
PACKING SHEET
RA0262500
PACKING SHEET
R0134490
HOLDER
RA0251500
CHASSIS
S6000396
RUBBER GROMMET TM-96-17
S6000395
COVER P-25P(23)
Á
Ã
Ã
Ã
Ã
Ã
Ã
Ã
Ã
Ã
Ã
Á
Á
Á
À
À
À
Â
Â
Â
Â
Â
Â
Â
Â
Á
Á
RA02543A0
KNOB
Ã
Ã
P1090984
CONNECTOR
MIC CONN Unit
Non-designated parts are available only as part of a
designated assembly.
Screw List
REF. VXSTD P/N Description Qty.
1 U20306007 BINDING HEAD SCREW M3x6B 4
2 U20306002 BINDING HEAD SCREW M3x6NI 6
3 U24308002 TAPTITE SCREW M3x8NI 9
4 U23206001 TAPTITE SCREW M2.6x6 14
5 U20305007 BINDING HEAD SCREW M3x5B 2
6 U32450007 FLAT HEAD SCREW M2.6x5B 2
7 U31306007 OVAL HEAD SCREW M3x6B 2
8 U20308002 BINDING HEAD SCREW M3x8NI 2
9 S5000182 SCREW JFS-4S-B1MW 2
Accessories
Description VXSTD P/N Qty.
BLADE FUSE ATC 15A Q0000075 2
DC CABLE 02P 15AX2 T9021015 1
KNOB CAP RA0254100 5
NAME PLATE RA0254700 1
P1090654
CONNECTOR
(W/ *A)
*A
Supplide is VR3601*
VR3601*
Ã
Å
Ä
Æ
Æ
Ä
Á
Ç
Ç
È
È
