1-1
VX-4000 VHF Low-band Service Manual
Operating Manual Reprint

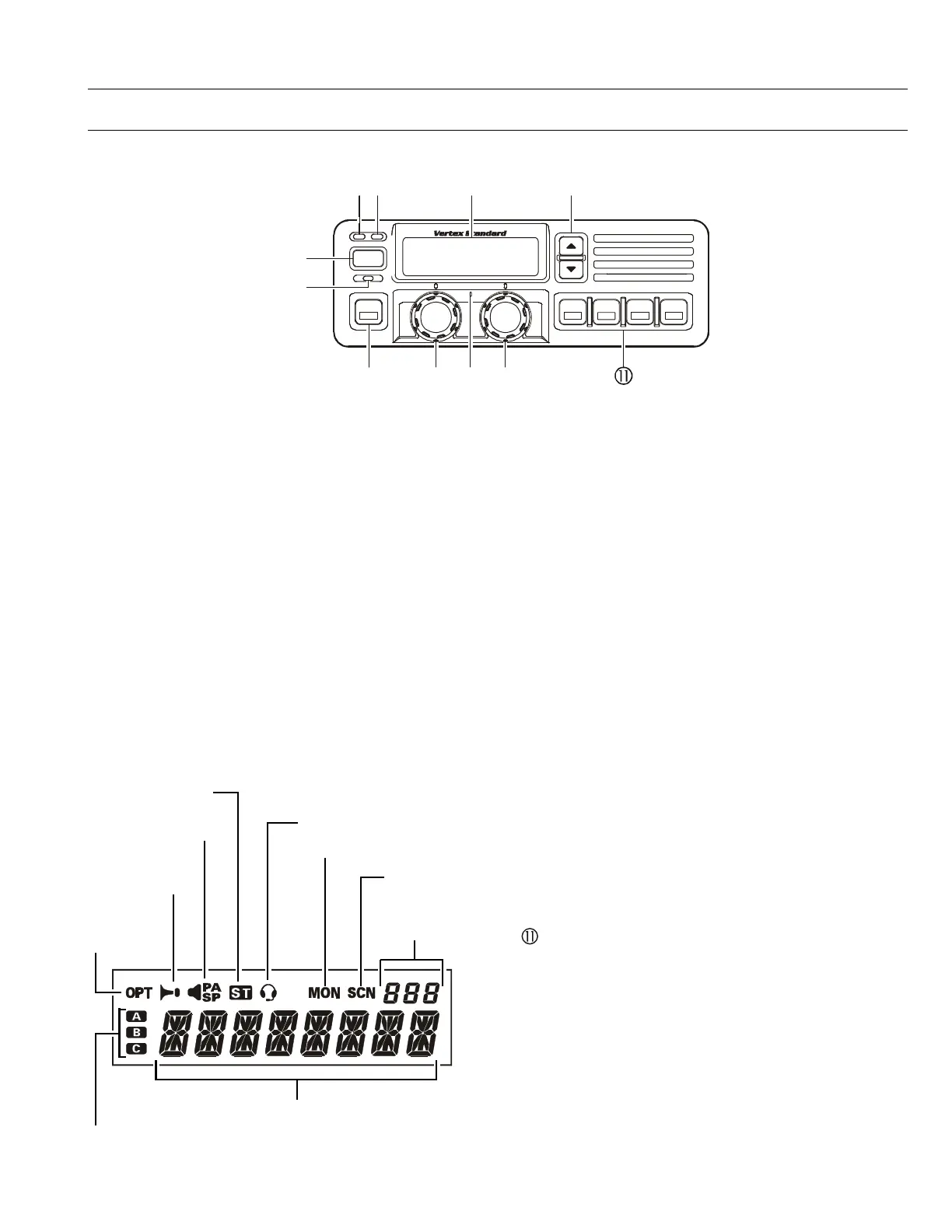

CONTROLS & CONNECTORS
Front Panel
•
POWER Button
Press the button to turn the transceiver ON and
OFF.
‚
TX Indicator
This lamp glows red when the radio is transmit-
ting.
ƒ
BUSY Indicator
This lamp glows green when the channel is busy.
„
Liquid Crystal Display
The display include an 8-character alpha-numeric
section showing channel and group names, sta-
tus and identity information, and error messages.
Additional indicators on the display show prior-
ity channel assignments and scan include / ex-
clude selection.
8 Character Alpha-numeric Display
Channel Group
Number
This channel on “INTERCOM” List
This channel on
“SELECTABLE TONE” List
This channel on
“SCAN” List
Receiver Monitor
This channel on “PUBLIC
ADDRESS” or “SPEAKER”
List
This channel on
“HORN ALERT” List
This channel
on “OPTION”
List
This channel on “AUX A/B/C” List
…
p/q Button
Pressing these buttons changes the current group
(and displayed group number or name). Hold-
ing this button for more than 1/2 second causes
the function to repeat.
†
SQC Indicator
This lamp glows orange when incorrect position
at the setting of CE35.
‡
Programmable Function Button (PF button)
This button can be set up for special applications,
such as high/low power selection, monitor, dim-
mer, talk-around, and call alert function, as de-
termined by your network requirements and pro-
grammed by your VERTEX STANDARD dealer.
ˆ
VOLUME Knob
This knob sets the volume of the receiver.
‰
EMERGENCY Microphone
The emergency microphone is located behind this
small slit. When the emergency feature is acti-
vated, this Microphone is enabled.
Š
CHANNEL Selector Knob
This knob select the operating channel.
Programmable Function Button (PF button)
This button can be set up for special applications,
such as high/low power selection, monitor, dim-
mer, talk-around, and call alert function, as de-
termined by your network requirements and pro-
grammed by your VERTEX STANDARD dealer.
A
POWER
†
•
