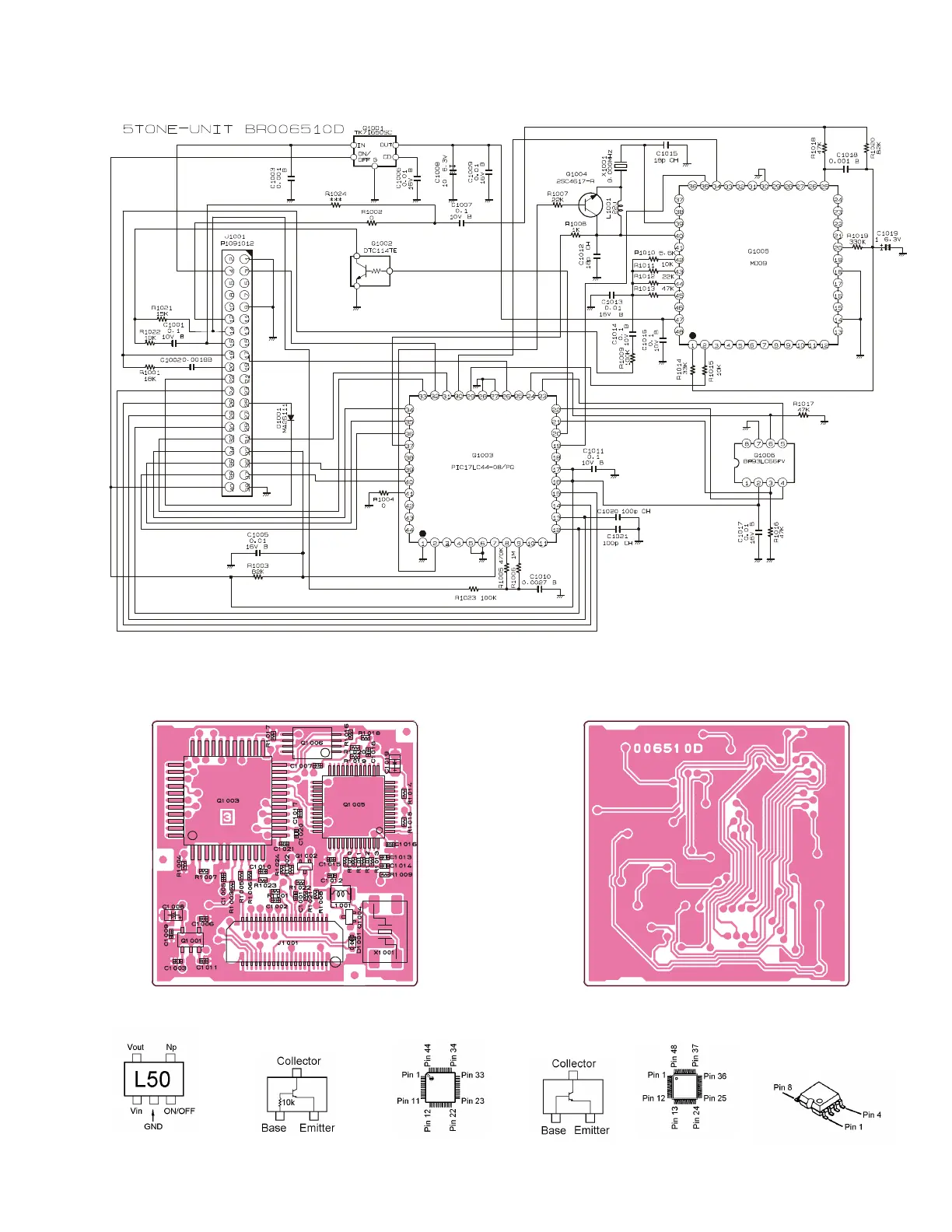

7B-1
VX-4000 VHF Low-band Service Manual
F5D-14 5-Tone Unit
Circuit Diagram
Parts Layout
Side B
Side A
2SC4617 (BR)
(Q1004)
DTC114TE (04)
(Q1002)
BR93LC66FV
(Q1006)
TK71650SC (L50)
(Q1001)
MD09
(Q1005)
PIC17LC44-08/PQ
(Q1003)
