VX-4000 VHF Low-band Service Manual
6C-1
KEY Unit

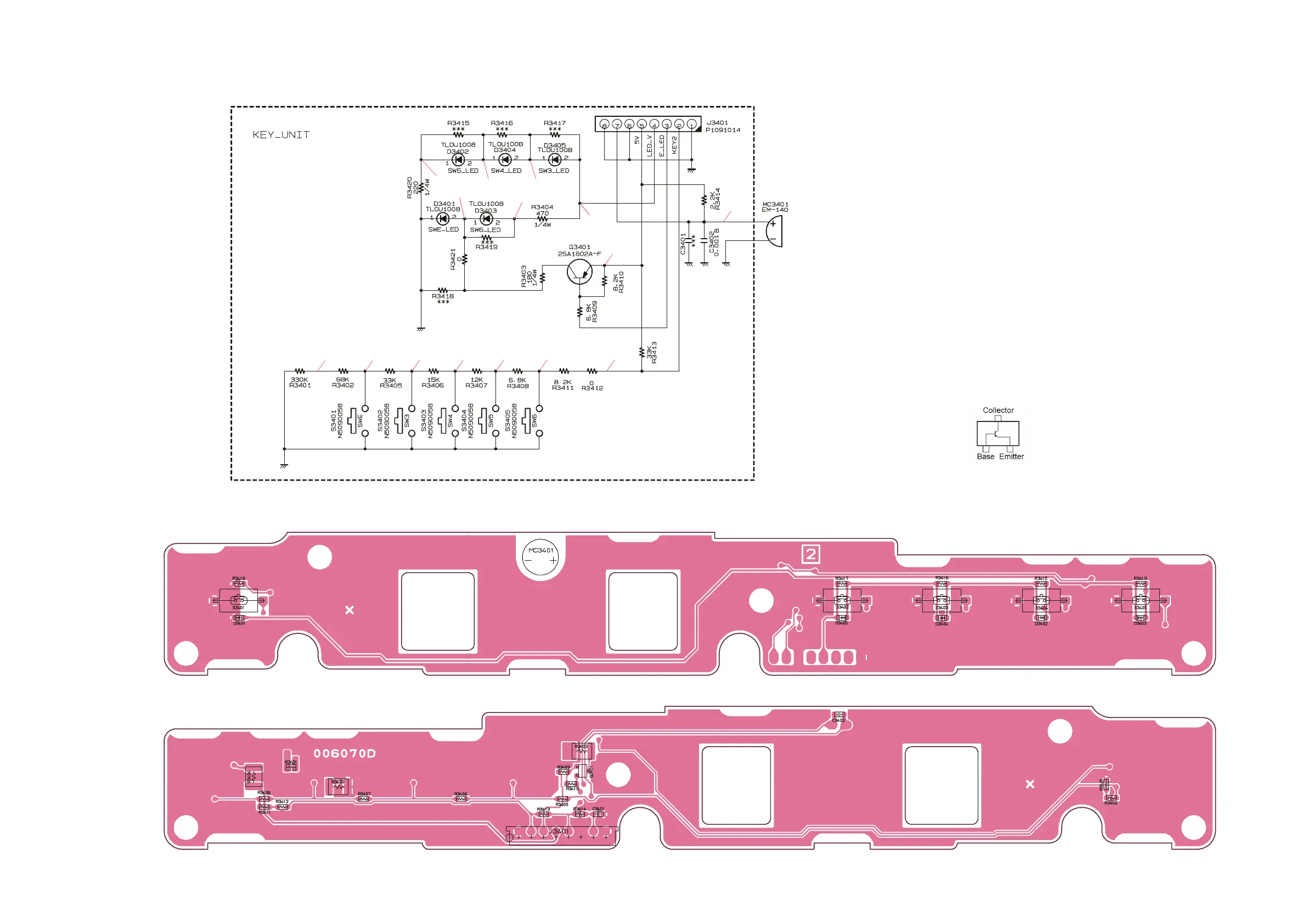

Circuit Diagram
Parts Layout
Side A
Side B
2SA1602A (MF)
(Q3401)
4.95V
7.71V
3.82V
1.92V
1.96V
3.9V
5.8V
4.62V
3.18V
3.87V
4.19V
4.34V
4.46V
4.53V
4.61V
