7D-1
VX-4000 VHF Low-band Service Manual
VTP-50 VX-Trunk Unit
NJM2904V
(Q1001)

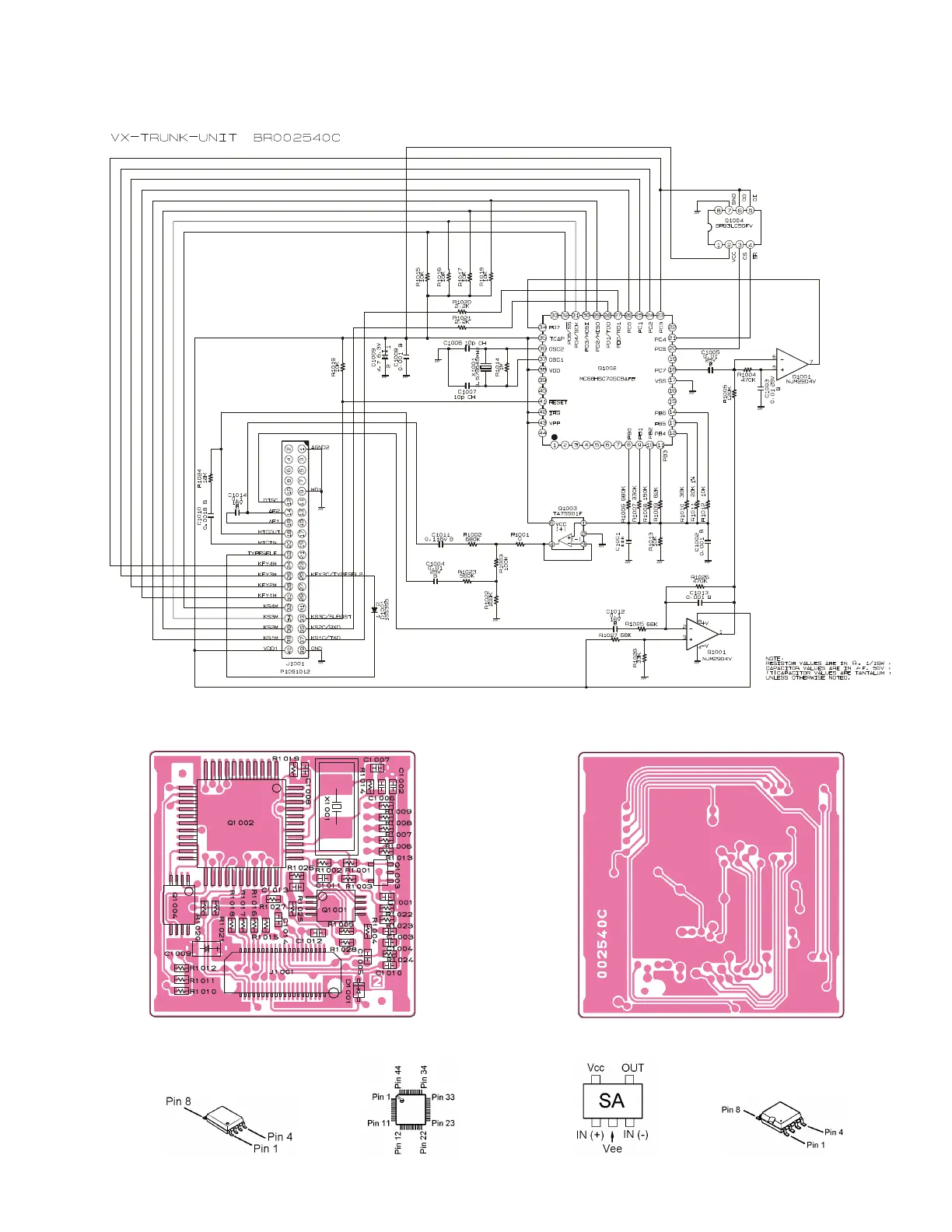

Circuit Diagram
Parts Layout
MC68HSC705C8A502
(Q1002)
TA75S01F (SA)
(Q1003)
Side B
Side A
BR93LC56FV
(Q1004)
