10VX-4500/-4600 Series VHF FM Transceiver Service Manual
Alignment
Alignment Mode
The Alignment mode allows you to align the entire radio.
The value of each parameter can be changed to the de-
sired value by use of the “

” / “

” and up/down arrow
keys, along with direct number input and dragging of the
PC mouse.

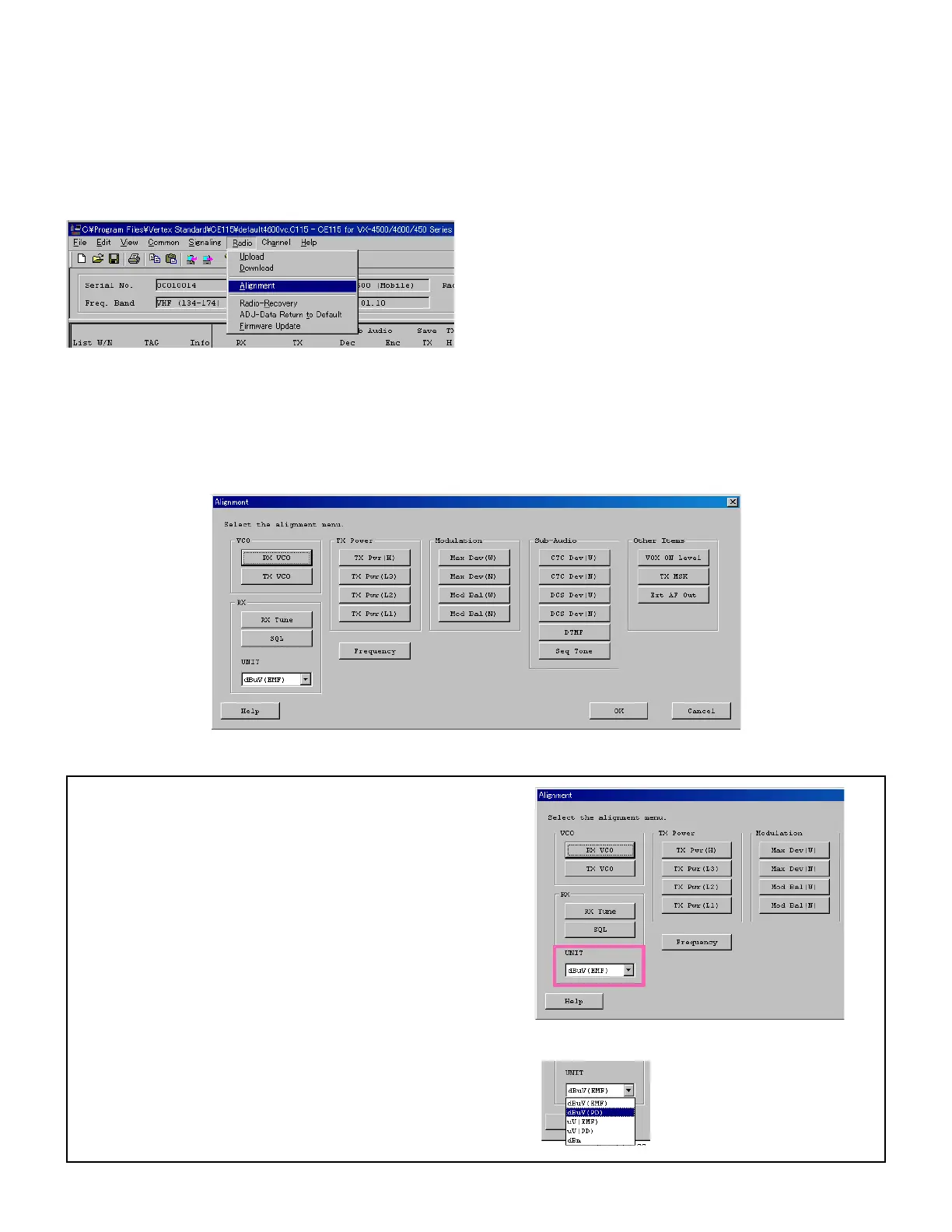

To enter the Alignment Mode, select “Alignment” in the
main “Radio” menu. It will start to “Upload” the align-
ment data from the radio to the PC. Pressing the “OK”
button will then "Download" the alignment data to the
radio and exit the Alignment Mode.
Note: when all items are to be aligned, it is strongly rec-
ommended to align them according to the following se-
quence. Detailed information for each step may be found
in the “Help” file within CE115 (PC Programming Soft-
ware).
1. VCO (Please do not adjust it)
2. PLL Reference Frequency (Frequency)
3. RX Sensitivity (RX Tune)
4. Squelch (SQL/RSSI)
5. TX Power <High/Low3/Low2/Low1>
6. Maximum Deviation <Wide/Narrow>
Please adjust the following items when needed.
 Modulation Balance <Wide/Narrow>
 CTCSS Deviation <Wide/Narrow>
 DCS Deviation <Wide/Narrow>
 DTMF Alignment
 Seq Tone
 VOX ON Level
 TX MSK
 Ext AF Out
Unit
During alignment, you may select the value among
dBμV,μV (EMF or PD), or dBm.
When performing the “RX Tune” and “SQL” align-
ment, the RF level shows this unit according to this
setting.

