22VX-4500/-4600 Series VHF FM Transceiver Service Manual
Installation of Option
FVP-35, DVS-8, VT-60F/FS
The FVP-35 is a Rolling Code Encryption Unit which per-
mits secure voice communications with station within
your network, while preventing others from listening
using normal communications equipment.
The DVS-8 is a Voice Storage Unit which allows you to
record and play back incoming receiver audio.
The VT-60F/FS is a module which provides a complete
multi-chanel digital-access radio trunking system.
Each optional Unit is easily programmed the configula-
tions using a Vertex Standard CE115 programmer with
an IBM PC-compatible computer.
1. Disconnect the DC power cable.
2. Referring to Figure 1, grasp the Top Case Cover with
both hands, Lift up the Top Case Cover to remove while
sprend both side of the Top Case Cover.
3. Referring to Figure 2, remove the Shield Case Cover.
4. Referring to Figure 3, locate the empty connector for
the Optional Unit, connect the Optional Unit here.
5. Replace the Shield Case Cover, then replace the Top
Case Cover. Installation is now complete.
Do not install all Optional Unit at onece

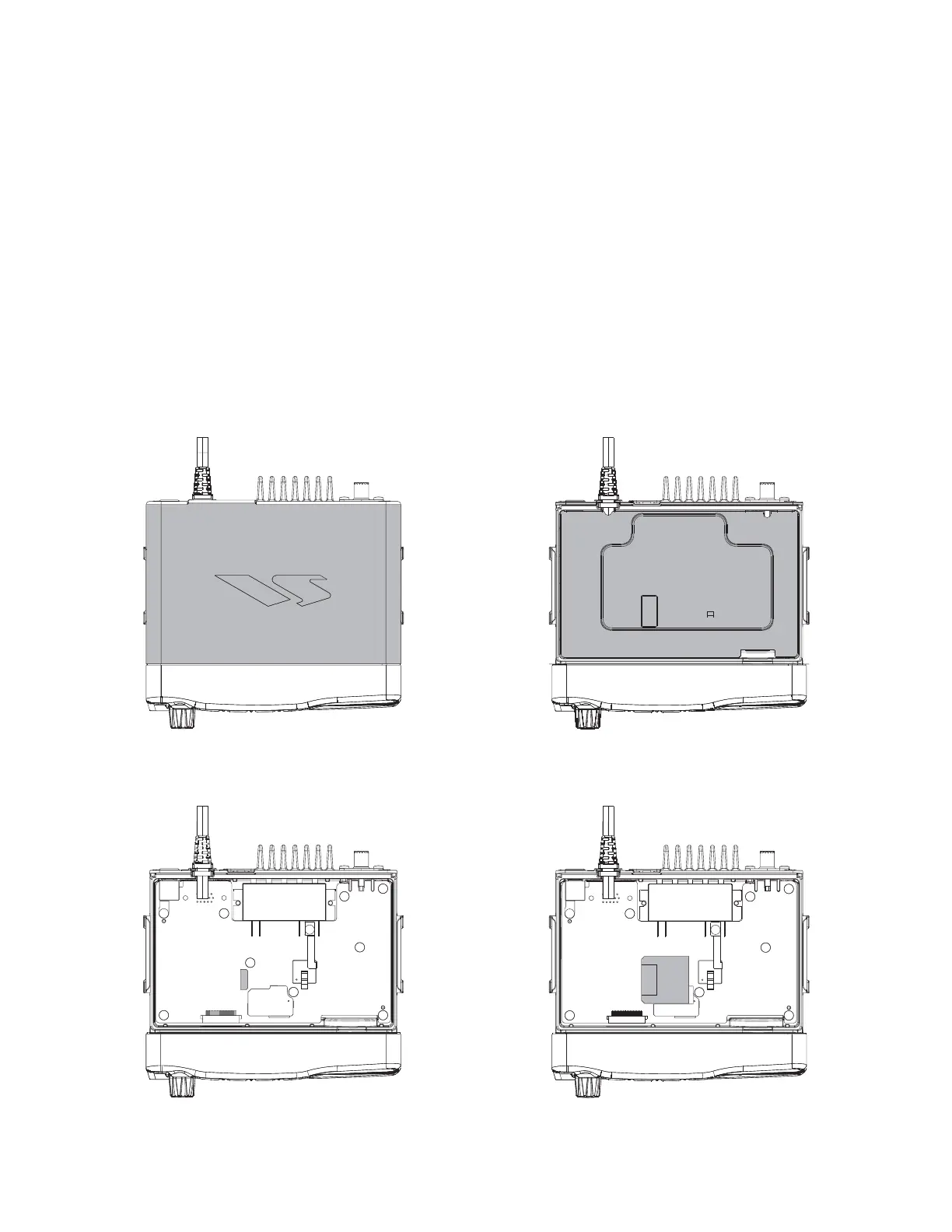

Figure 1
Figure 2
Figure 3
