Vertiv Liqui-tect LP6000 User Manual

2.2 Input and Output Connectors

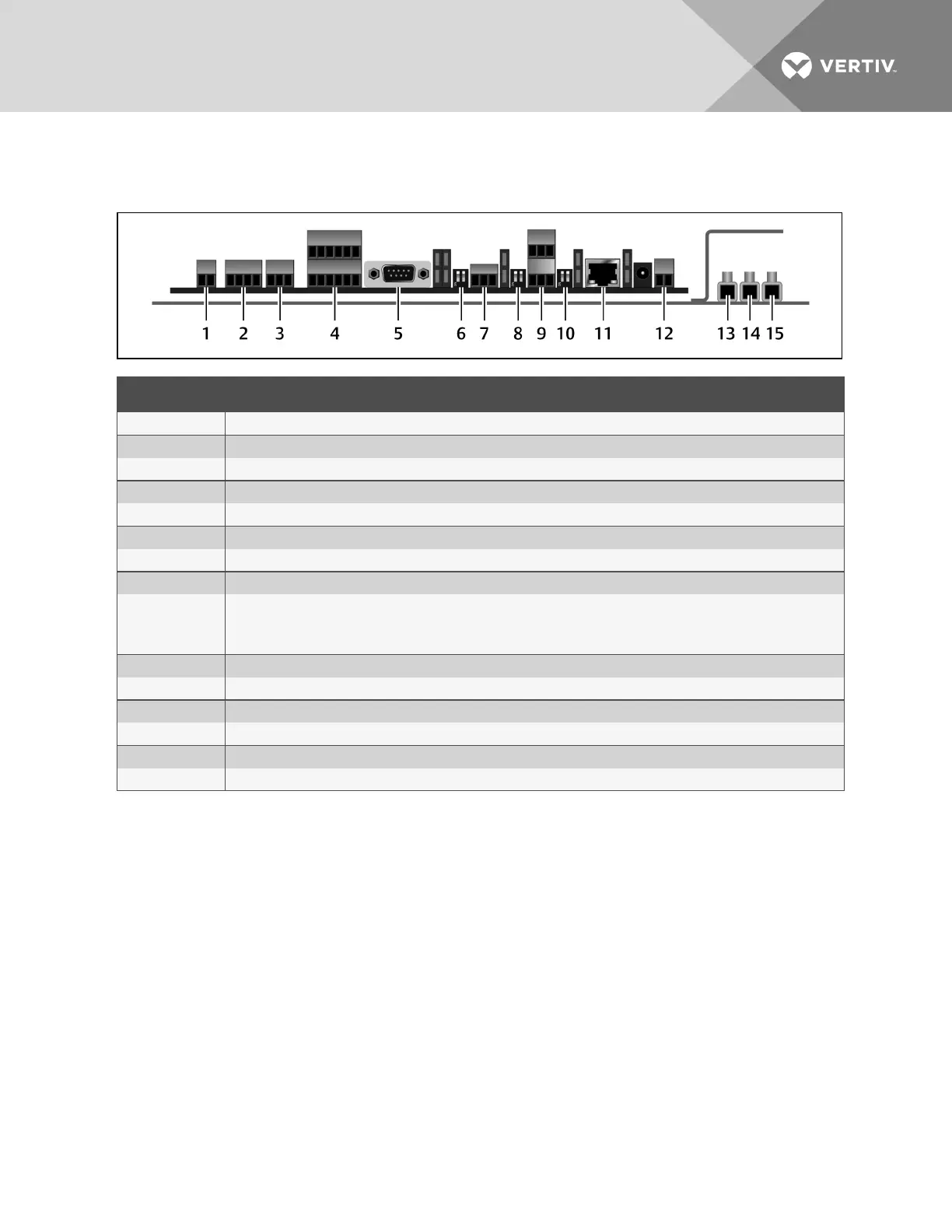

Figure 4.1 Connections and Switches on LP6000
ITEM DESCRIPTION
1 TB1 - 4mA to 20mA Output
2 TB2 - Cable Interface (W-B-G-R)
3 TB3 - Form C Maintenance Relay
4 TB4 - (2) Form C Leak Relay Outputs and (2) Form C Fault Relay Outputs
5 P1 - EIA-232 Connector
6 SW1 - EIA-485 Port 3 Termination
7 TB5 - EIA-485 Port 3
8 SW2 - EIA-485 Port 2 Termination
9
TB6:
Top - EIA-485 Port 1
Bottom - EIA-485 Port 2
10 SW3 - EIA-485 Port 1 Termination
11 P2 - Ethernet Port
12 TB7 - Input Power (from the power supply)
13 Neutral - Power-input terminal block
14 Line - Power-input terminal block
15 Ground - Power-input terminal block
Vertiv | Liqui-tect LP6000 Installer/User Guide | 10
