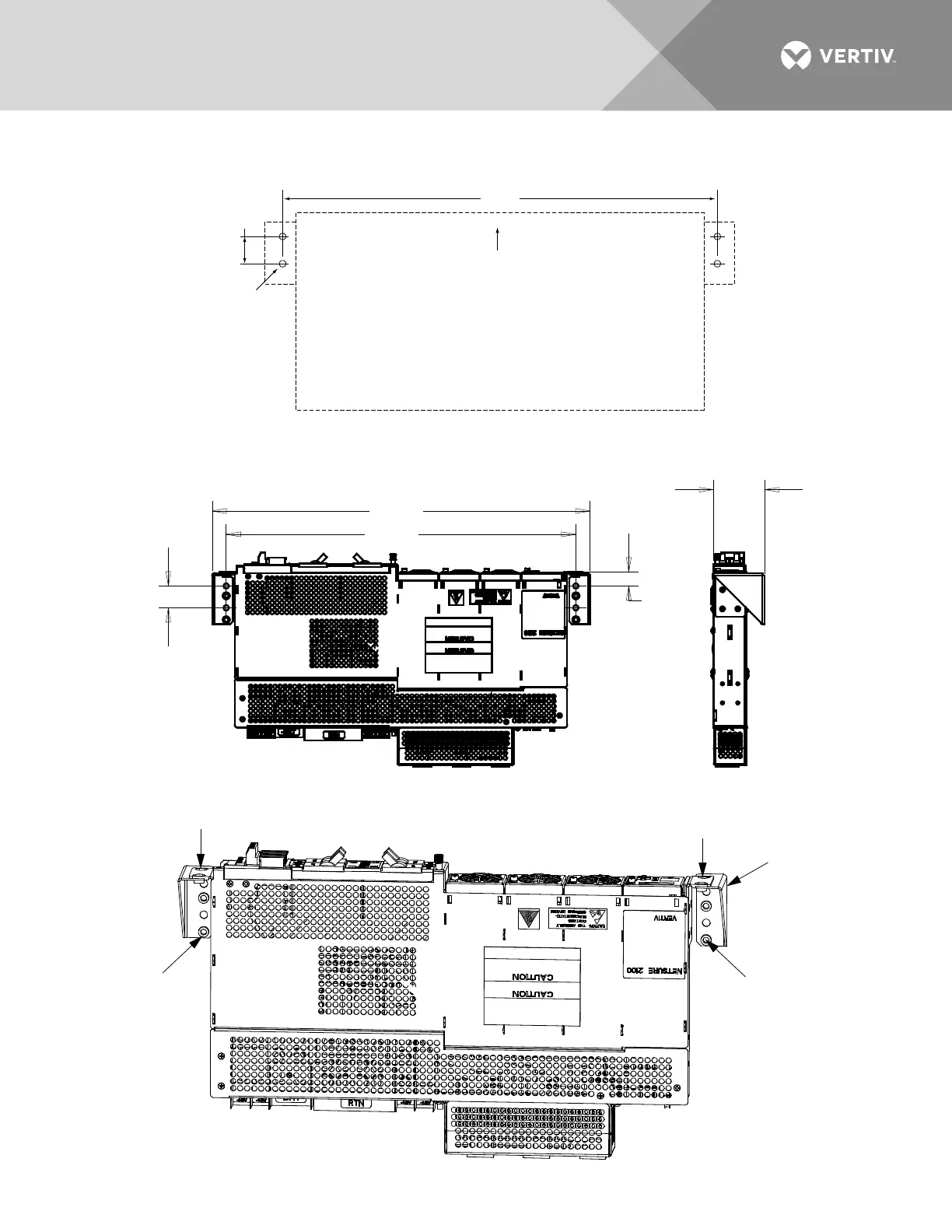

Figure 5: Vertical Wall Mounting with P/N 541285
Notes:
1. All dimensions are in inches, unless otherwise specified.
2. Installer to furnish hardware for fastening brackets to wall.
18.31
1.15
.75
2.68
19.80
Wall Mount Drill Guide (Not to scale)
1.15
18.3
0.277 Dia.
Clearance
Hole in
Bracket
for Wall
Fastener
(Front)
Rear
Vertical
Wall Mounting
Bracket (2)
Fasten kit brackets
to shelf angles with
kit-furnished fasteners.
Fasten kit brackets
to shelf angles with
kit-furnished fasteners.
Front
Installer to
furnish hardware
for fastening
brackets to wall.
Installer to
furnish hardware
for fastening
brackets to wall.
