Vertiv NetSure 2100 Series Installation Manual

Vertiv | NetSure™ 2100 Series -48 VDC Power System Installation Manual (IM582138000) | Rev. C
61

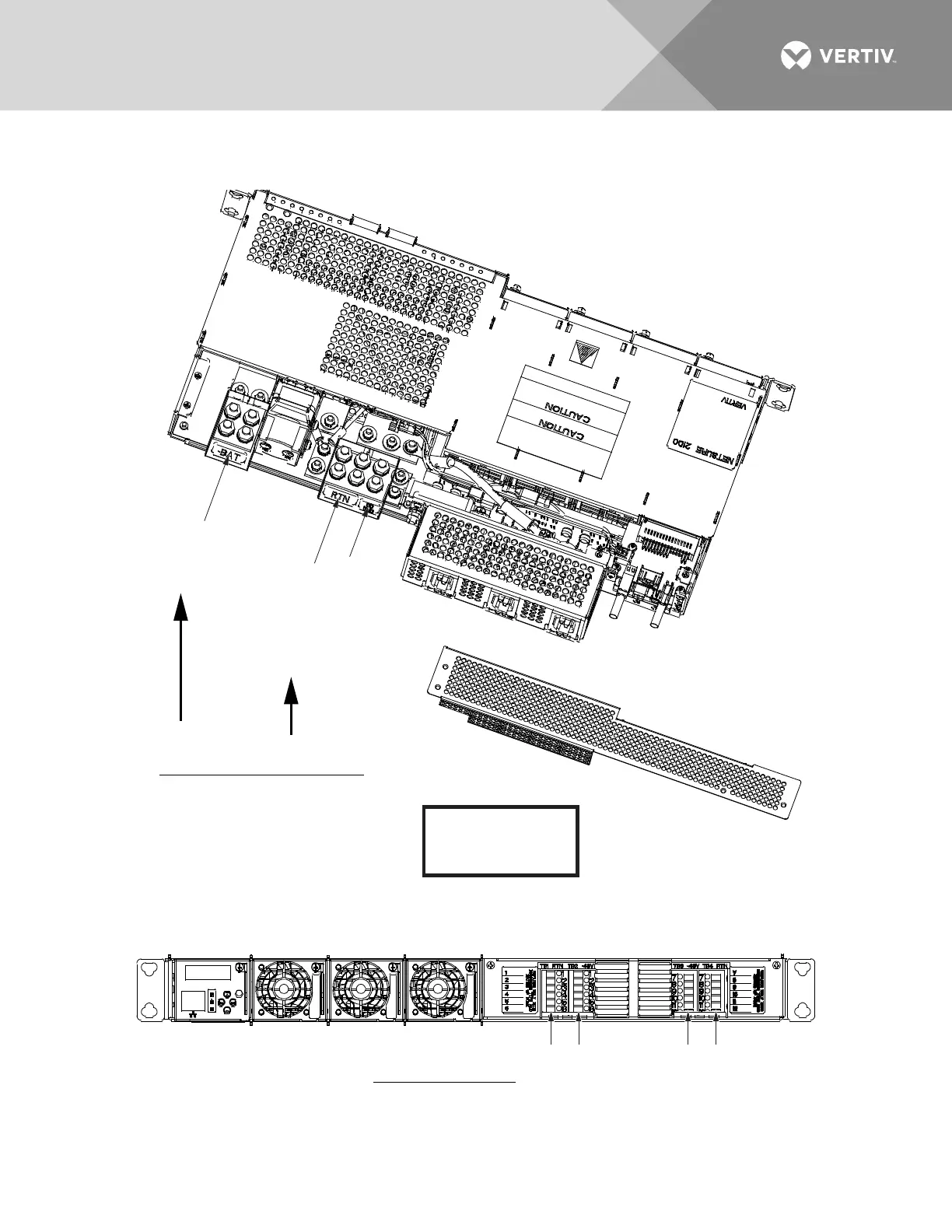

Figure 35: Load Distribution Wiring, Input Battery Wiring, and CO Ground Wiring (Lists AA)
Observe proper polarity
when making battery
and load connections.
WARNING!
Front
-48 VDC Load Terminal Blocks
TB1, TB2, TB3, and TB4:
Wire Size Capacity:
22 AWG to 12 AWG.
Recommended Torque:
4.4 in-lbs.
Load Return Leads
-48V Load Leads
Load Return Leads
-48V Load Leads
Battery, Battery Return, CO Ground:
1/4-20 studs on 5/8” centers for
installation of customer provided
two-hole lugs.
Maximum Lug Width: 0.6 inches.
Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Torque to 58 in-lbs.
-48 VDC
SUPPLY GND RTN
Central Office Ground
Battery Return Bus
Battery Bus
Rear
Top rear shield (shown
below, not to scale)
removed in illustration for
clarity. Top rear shield must
be removed to access
connections.
