Vertiv NetSure 2100 Series Installation Manual

Vertiv | NetSure™ 2100 Series -48 VDC Power System Installation Manual (IM582138000) | Rev. C
43

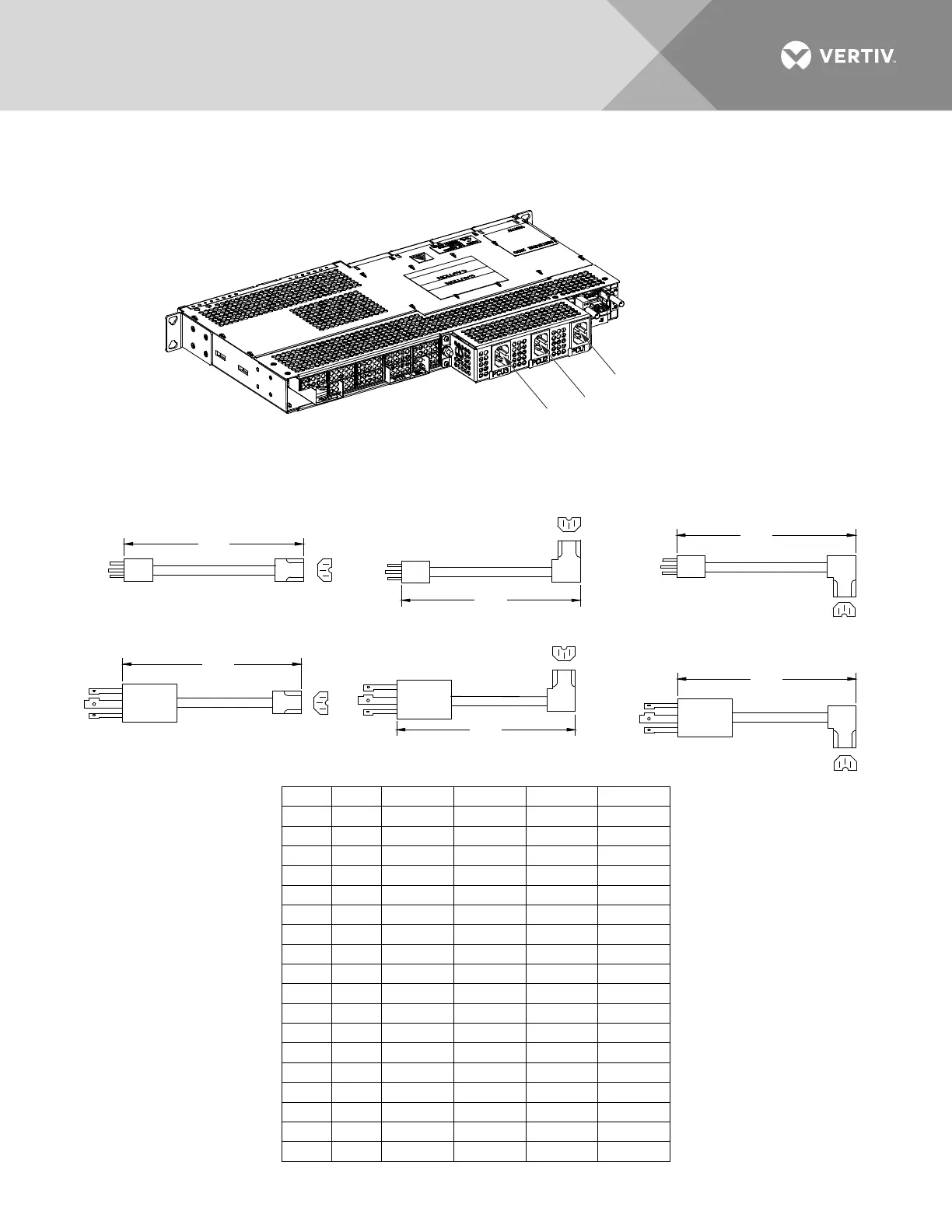

Figure 26: Individual Rectifier AC Input Feeds when IEC Receptacle Kit P/N 564840 is Factory Installed on List
01 Shelf
Rear
AC input connections are
made using the AC input
line cords connected here.
Rectifier Module #1
Rectifier Module #2
Rectifier Module #3
Rectifiers are numbered
left to right as viewed
from the front.
PT NO FIGURE END 'A' END 'B'
LENGTH RATING
151873 A NEMA 5-15P
IEC 320-C15
STRAIGHT
6 FT 15A-125V
151874 D NEMA L5-15P
IEC 320-C15
STRAIGHT
6 FT
15A-125V
151875
D NEMA L6-15P
IEC 320-C15
STRAIGHT
6 FT 15A-250V
151876 B NEMA 5-15P
IEC 320-C15
RT ANGLE LEFT
6 FT 15A-125V
151877 E NEMA L5-15P
IEC 320-C15
RT ANGLE LEFT
6 FT 15A-125V
151878 E
NEMA L6-15P
IEC 320-C15
RT ANGLE LEFT
6 FT 15A-250V
151879 C NEMA 5-15P
IEC 320-C15
RT ANGLE RT
6 FT 15A-125V
151880 F NEMA L5-15P
IEC 320-C15
RT ANGLE RT
6 FT 15A-125V
151881 F NEMA L6-15P
IEC 320-C15
RT ANGLE RT
6 FT 15A-250V
151882 A NEMA 5-15P
IEC 320-C15
STRAIGHT
14 FT 15A-125V
151883 D NEMA L5-15P
IEC 320-C15
STRAIGHT
14 FT 15A-125V
151884 D NEMA L6-15P
IEC 320-C15
STRAIGHT
14 FT 15A-250V
151885 B NEMA 5-15P
IEC 320-C15
RT ANGLE LEFT
14 FT 15A-125V
151886 E NEMA L5-15P
IEC 320-C15
RT ANGLE LEFT
14 FT
15A-125V
151887
E NEMA L6-15P
IEC 320-C15
RT ANGLE LEFT
14 FT 15A-250V
151888 C NEMA 5-15P
IEC 320-C15
RT ANGLE RT
14 FT
15A-125V
151889 F
NEMA L5-15P
IEC 320-C15
RT ANGLE RT
14 FT 15A-125V
151890 F NEMA L6-15P
IEC 320-C15
RT ANGLE RT
14 FT 15A-250V
LENGTH
LENGTH
LENGTH
LENGTH
LENGTH
LENGTH
END 'A'
FIG. D
END 'B'
END 'A'
FIG. F
END 'B'
RT ANGLE RT
END 'A'
FIG. C
END 'B'
RT ANGLE RT
END 'A'
FIG. A
END 'B'
END 'A' FIG. B
END 'B'
RT ANGLE LEFT
END 'A'
FIG. E
END 'B'
RT ANGLE LEFT
