Vertiv™ NetSure™ 7100 Series -48 VDC Power System User Manual
26

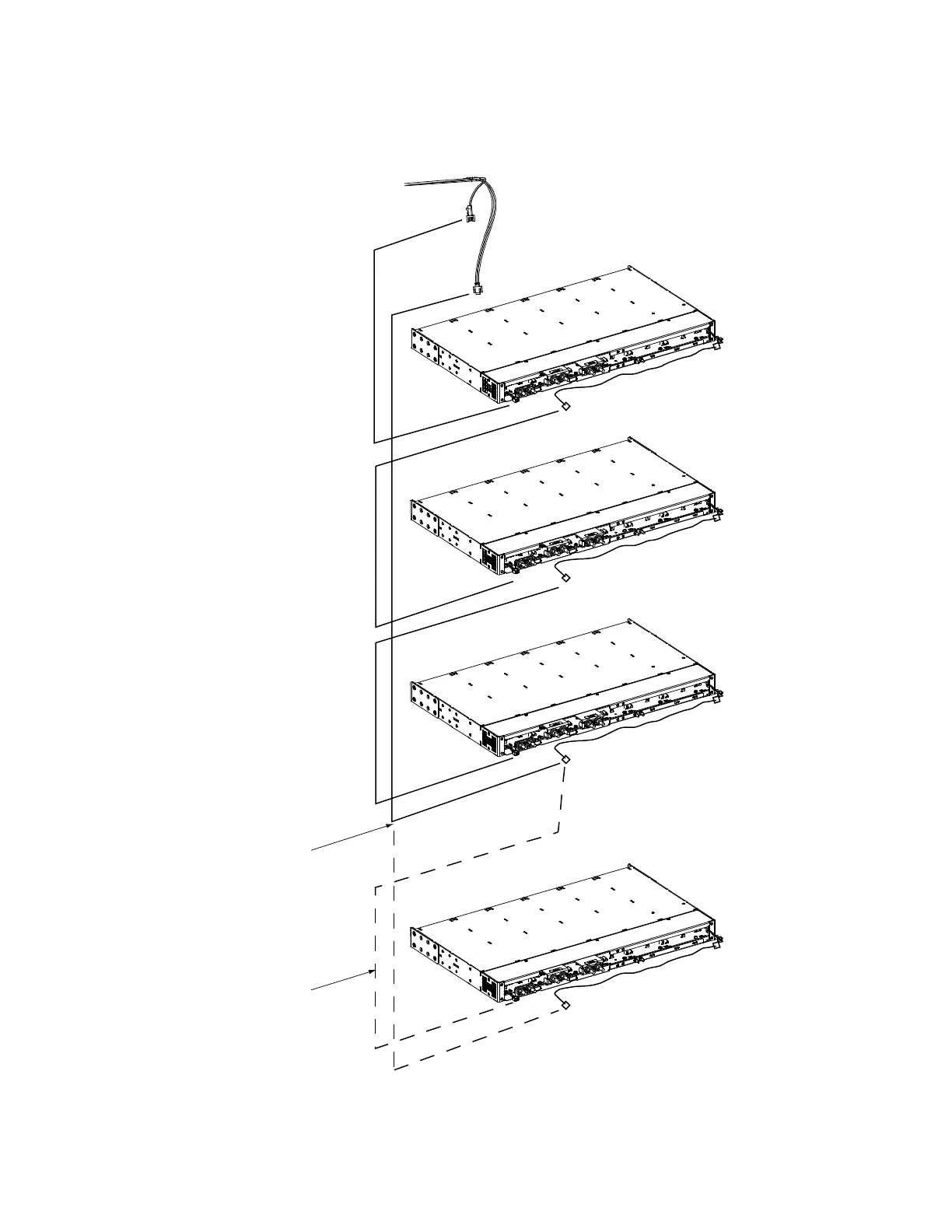

Figure 4.8 Controller CAN Bus, Module Mounting Assembly Spec. No. 588705300
Distribution
Cabinet Wire
Harness
Brown and
Brown/White
Wires
Slate and
Slate/White Wires
Exploded View Shown to
Illustrate Wire Connections Only
Existing Module
Mounting Shelf
Existing Module
Mounting Shelf
These connectors
are factory connected.
These connectors
are factory connected.
These connectors
are factory connected.
Existing Module
Mounting Shelf
Expansion Module
Mounting Shelf
Disconnect cable coming
from distribution cabinet
from this connector on
bottom-most existing
shelf, then connect to the
same connector on the
expansion shelf.
Rear View
Factory provided jumper
to bring connectors to
same side of shelf.
Rear View
Factory provided jumper
to bring connectors to
same side of shelf.
Rear View
Factory provided jumper
to bring connectors to
same side of shelf.
Rear View
Factory provided jumper
to bring connectors to
same side of shelf.
X
Now connect these
two connectors together.
