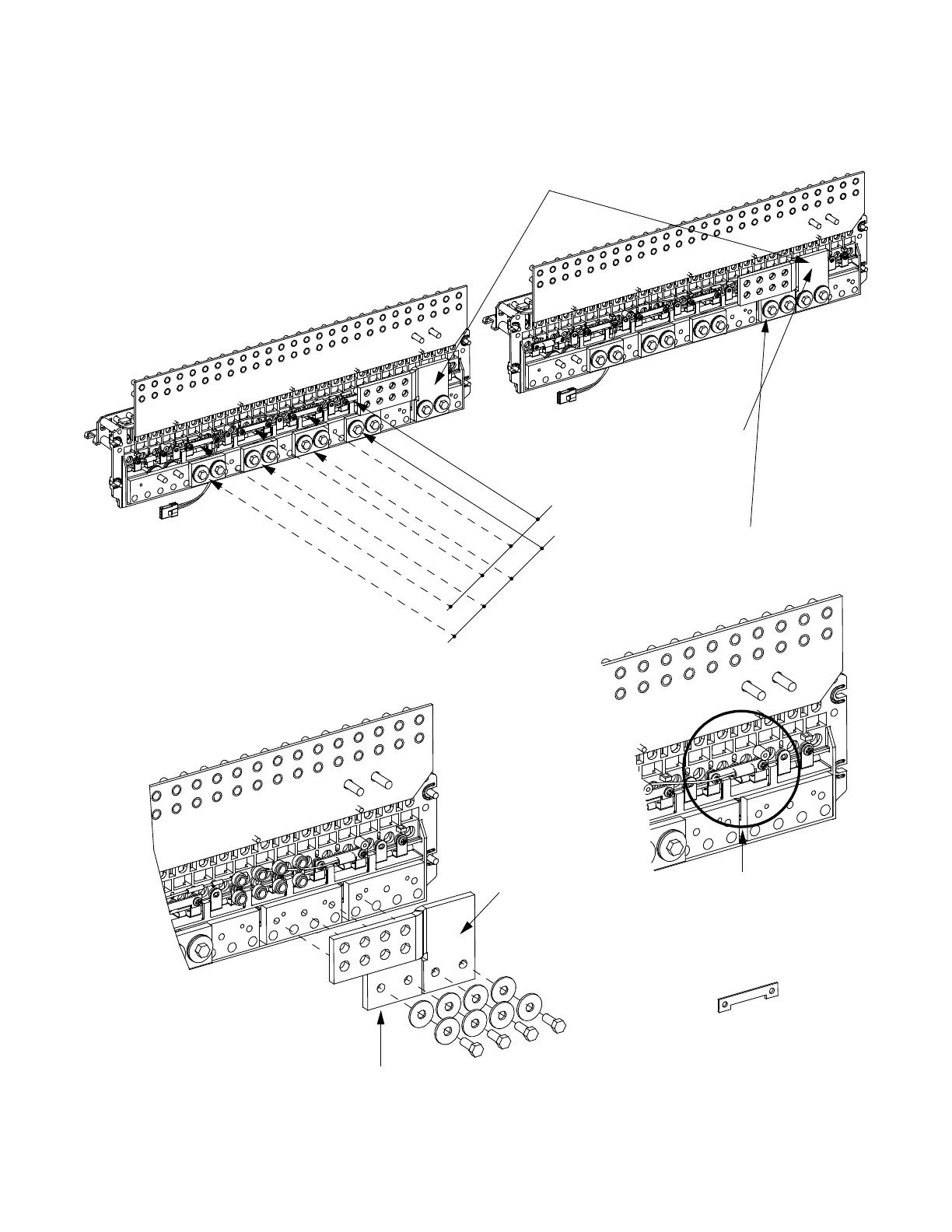

List DE and FE Only: Move the +24V or -58V Input Power
Busbar one (1) position to the left.
Before
After
List DE or FE Only: Move the Shorting Bus
at the desired point of the voltage division
to the storage position shown in a
previous illustration.
List DE or FE Only: Move the CBA/FA
alarm strap at the desired point
of the voltage division to the
location above the relocated
+24V or -58V Input Power Busbar.
Move CBA/FA
Alarm Strap Here
6-19 x 1/2 Screw
Torque to 9.6 in-lbs.
List DE or FE Dual Voltage
Distribution Panel
From the front, remove the
polarity labels for the positions
reassigned and turn the label
over so the other polarity shows.
See Detail A.
From the front, remove the voltage
barrier shield from the right-most
EXISTING sub-system distribution
position and place it in the right-most
NEW sub-system distribution position.
See Detail B.
Move Shorting
Bus Here
Apply a thin coating of
electrical anti-oxidizing
compound to the mating
surfaces of the busbars.
1/4-20 x 5/8 Bolt
1/4” Lock Washer
1/4” Flat Washer
Torque to 75 in-lbs.
Move
+24V or -58V Input
Power Bus Here
To Next Page
