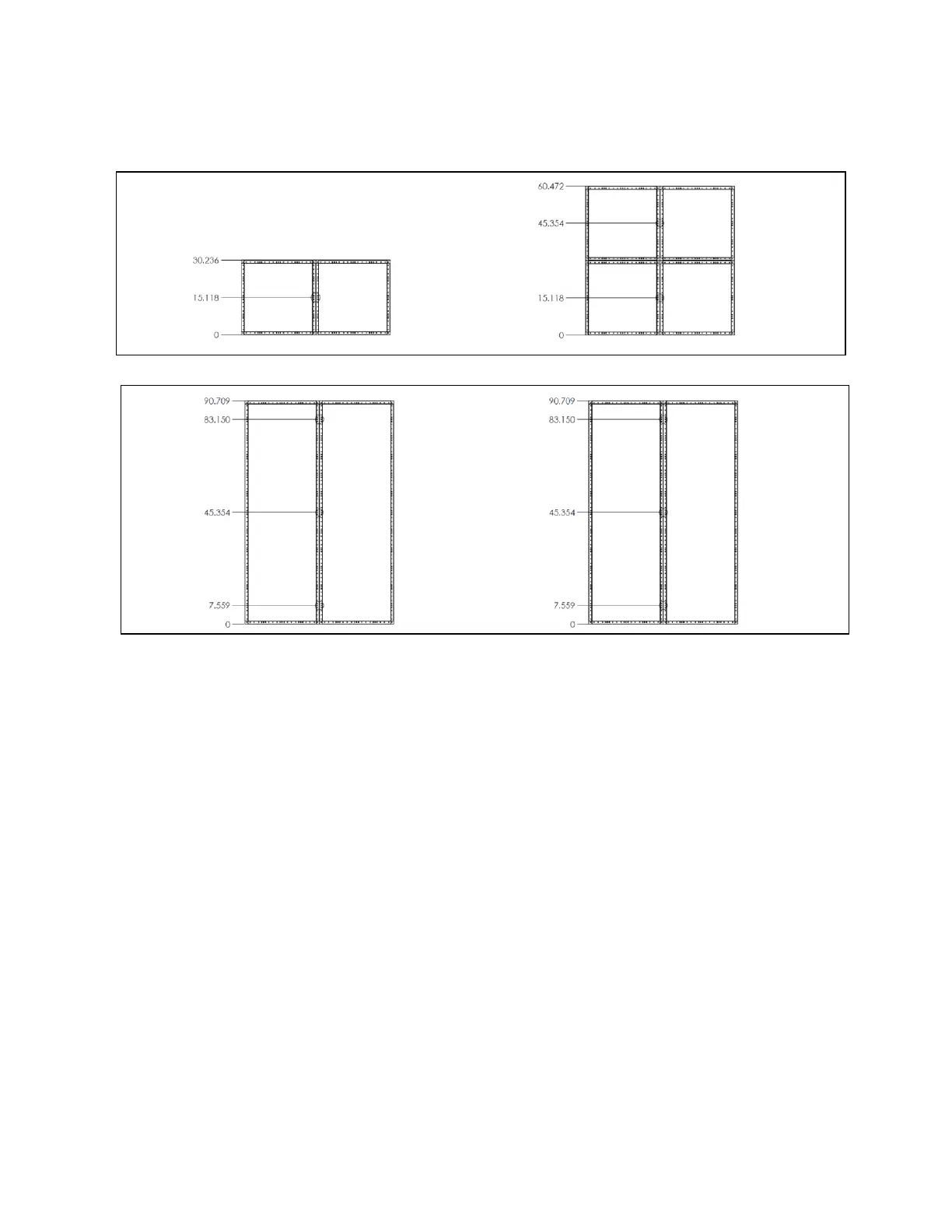

Figure 4.6 Typical Joining Locations
Typical Front Access Joining Location Typical Rear Access Joining Location
Top Top
Front /Rear Front /Rear
NOTE: Location identified and above are the typical cluster of holes for joining. The exact location above are not
required, but should be three (3) separate cluster of joining screw up the height of the front and rear. Only one (1)
cluster of joining screw on top for anything less than 30.236 in. two (2) set for anything over 30.236 in.
4 Installation Proprietary and Confidential ©2024 Vertiv Group Corp. 25
Vertiv™ UL891 Switchboard Installer/User Guide
