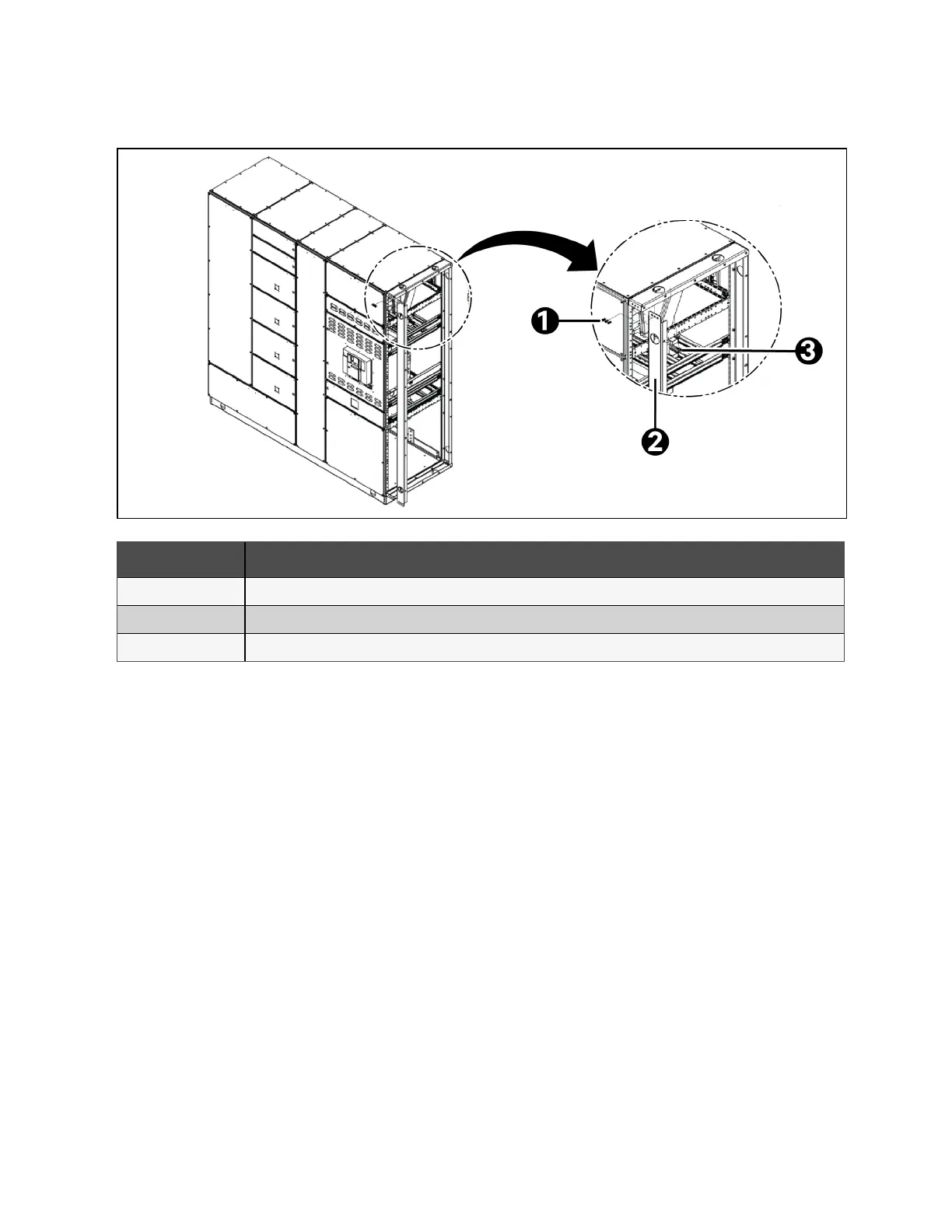

Figure 3.9 Installing the Plinth Lift-off
Item Description
1 M8x12 low profile to mount plinth lift off to plinth end
2 Plinth lift off to install
3 M8x16 socket head to mount plinth lift off to frame
3.3 Storage
If delays occur in the installation of the switchboard then:
• It should be properly stored to avoid any type of damage.
• It should be unpacked and examined. See section 2.1 – Receiving on page13 .
• It should be stored in a location that has less than 50 percent humidity and a stable temperature between 32-
104°F (0-40°C).
• Space heaters should be temporarily disconnected from internal connections and powered externally to reduce
condensation.
• If the unit is going to be stored for an extended period, the sections and splits should be re-covered in the
packaging material or plastic cover to help protect them.
