M1 SENSORS
HEADING Internal use only
BAROMETER
Update rate 1Hz max
(averaged)
BATTERY VOLTAGE Measured at power input
EXTERNAL SENSORS
INPUTS
5 Inputs, Digital (0-24V)
H1 AND H1P HANDSET SPECIFICATIONS
HANDSET SIZE
164.8 x 71.8 x 21.4mm
(6 1/2” x 2 13/16” x 7/8”)
POWER SUPPLY
12V, 1A max, 200mA nom
12/24V DC compatible
BATTERY
Lithium Polymer
2 hour full charge,
>10 hours operation
WEIGHT
H1 285g (0.63lb), H1P
235g (0.52lb)
ENVIRONMENTAL Waterproof (IPX8)
OPERATING TEMP
-25°C to +55°C (-13°F to
+131°F)
AUDIO
3W Class D amplier, THD
< 5% @ 85dBA
H1 AND H1P HANDSET DISPLAY
SCREEN
LCD TFT Si, 640 x 800,
24bit color
TOUCH
Capacitive, optically
bonded, LCD, glove and
salt water operable
BACKLIGHT
600 cd/m2, Ambient Light
sensor for auto dimming
58.7mm
(2 5/16”)
58.7mm
(2 5/16”)
164.8mm (6 1/2”)
71.8mm (2 13/16”)
21.4mm (7/8”)
75.6mm (3”)
73.3mm (2 7/8”)
18mm (11/16”)
25.1mm (1”)
Back Front
20.8mm (13/16”)
168mm (6 5/8”)
147.5mm (5 13/16”)
147.5mm (5 13/16”)
58.7mm
168mm (6 5/8”)
58.7mm
(2 5/16”)
58.7mm
(2 5/16”)
164.8mm (6 1/2”)
71.8mm (2 13/16”)
21.4mm (7/8”)
75.6mm (3”)
73.3mm (2 7/8”)
18mm (11/16”)
25.1mm (1”)
Back Front
20.8mm (13/16”)
168mm (6 5/8”)
147.5mm (5 13/16”)
147.5mm (5 13/16”)
58.7mm
168mm (6 5/8”)

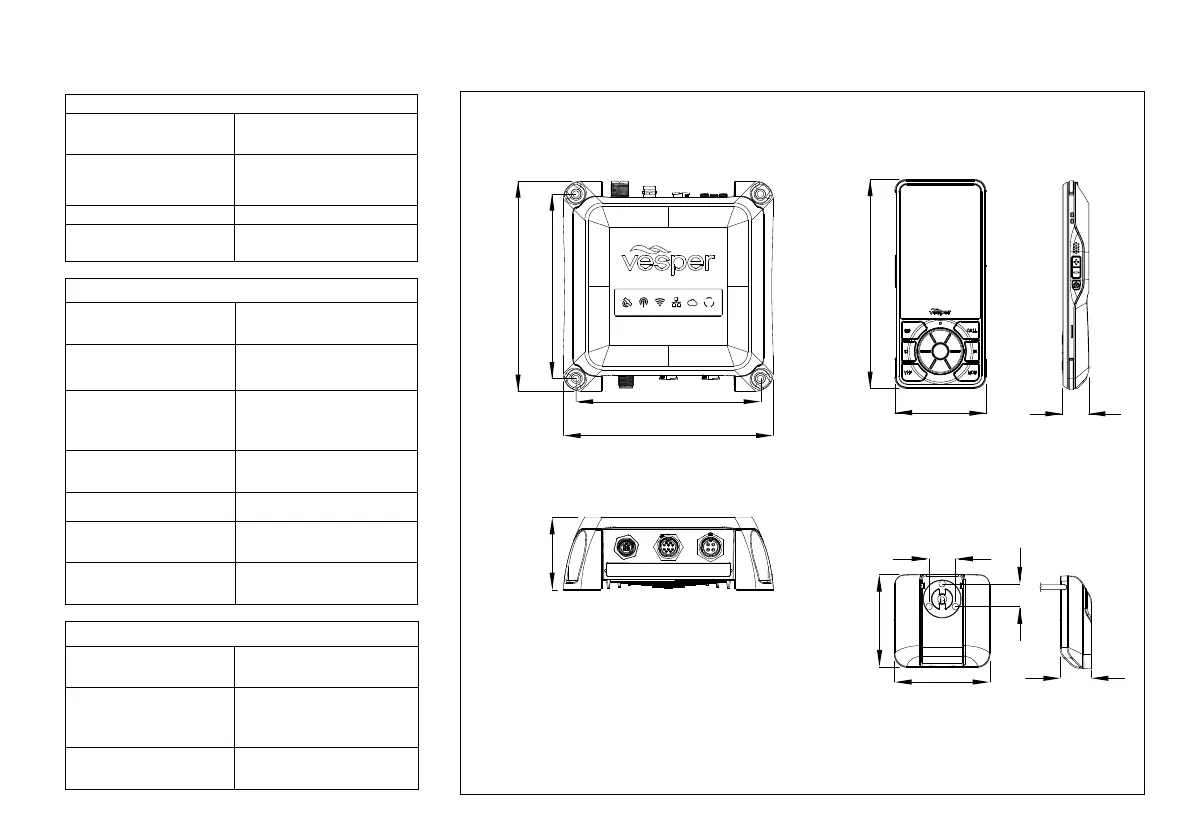

Dimensions
58.7mm
(2 5/16”)
58.7mm
(2 5/16”)
164.8mm (6 1/2”)
71.8mm (2 13/16”)
21.4mm (7/8”)
75.6mm (3”)
73.3mm (2 7/8”)
18mm (11/16”)
25.1mm (1”)
Back Front
20.8mm (13/16”)
168mm (6 5/8”)
147.5mm (5 13/16”)
147.5mm (5 13/16”)
58.7mm
168mm (6 5/8”)
58.7mm
(2 5/16”)
58.7mm
(2 5/16”)
164.8mm (6 1/2”)
71.8mm (2 13/16”)
21.4mm (7/8”)
75.6mm (3”)
73.3mm (2 7/8”)
18mm (11/16”)
25.1mm (1”)
Back Front
20.8mm (13/16”)
168mm (6 5/8”)
147.5mm (5 13/16”)
147.5mm (5 13/16”)
58.7mm
168mm (6 5/8”)
58.7mm
(2 5/16”)
58.7mm
(2 5/16”)
164.8mm (6 1/2”)
71.8mm (2 13/16”)
21.4mm (7/8”)
75.6mm (3”)
73.3mm (2 7/8”)
18mm (11/16”)
25.1mm (1”)
Back Front
20.8mm (13/16”)
168mm (6 5/8”)
147.5mm (5 13/16”)
147.5mm (5 13/16”)
58.7mm
168mm (6 5/8”)
58.7mm
(2 5/16”)
58.7mm
(2 5/16”)
164.8mm (6 1/2”)
71.8mm (2 13/16”)
21.4mm (7/8”)
75.6mm (3”)
73.3mm (2 7/8”)
18mm (11/16”)
25.1mm (1”)
Back Front
20.8mm (13/16”)
168mm (6 5/8”)
147.5mm (5 13/16”)
147.5mm (5 13/16”)
58.7mm
168mm (6 5/8”)
H1 / H1P Handset
H1 and H1P Cradle
M1
58.7mm
(2 5/16”)
58.7mm
(2 5/16”)
164.8mm (6 1/2”)
71.8mm (2 13/16”)
21.4mm (7/8”)
75.6mm (3”)
73.3mm (2 7/8”)
18mm (11/16”)
25.1mm (1”)
Back Front
20.8mm (13/16”)
168mm (6 5/8”)
147.5mm (5 13/16”)
147.5mm (5 13/16”)
58.7mm
168mm (6 5/8”)
All stated specications are subject to change without notice or obligation.
Dimensional measurements based on metric.

Vesper Cortex M1 Specifications
