8

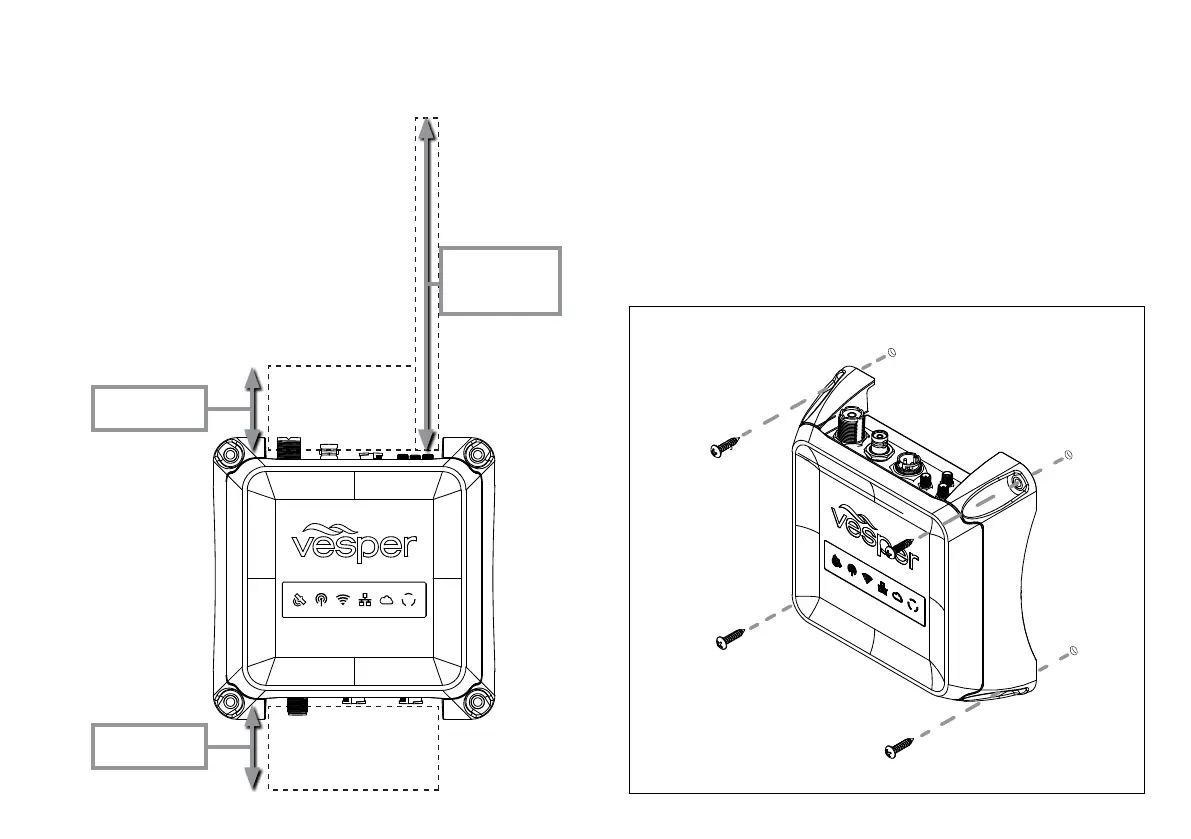

M1 positioning
1. Use the M1 as a template for mounting holes.
2. Mark the holes on the mounting surface and drill them
3. Align the M1 to the mounting holes and secure with
fastenings of your choice. (not included)
Recommended scre ws: 316 Stainless Self Tapping
8G/1" (4.2/25.4mm) or 10G/1" (4.8/25.4mm) Pan/Round Head.
M1 mounting
Cables Allow
2"/50mm
WiFi Antenna
Allow
8"/200mm
Cables Allow
2"/50mm
Allow at least 2"/ 50mm at each connector
row to give sufficient room for cable
clearance and connection.
Allow at least 8" / 200mm for the external
WiFi antenna to be positioned in a vertical
position to increase WiFi range.
For optimal Heading Sensor performance,
do not mount on or near ferrous materials.
See Heading Sensor introduction (pg24)
CAUTION - Ensure that the minimum safe
compass distance is maintained.
Standard: 0.8 m, Steering: 0.4 m.
